TC-600-TM-RP

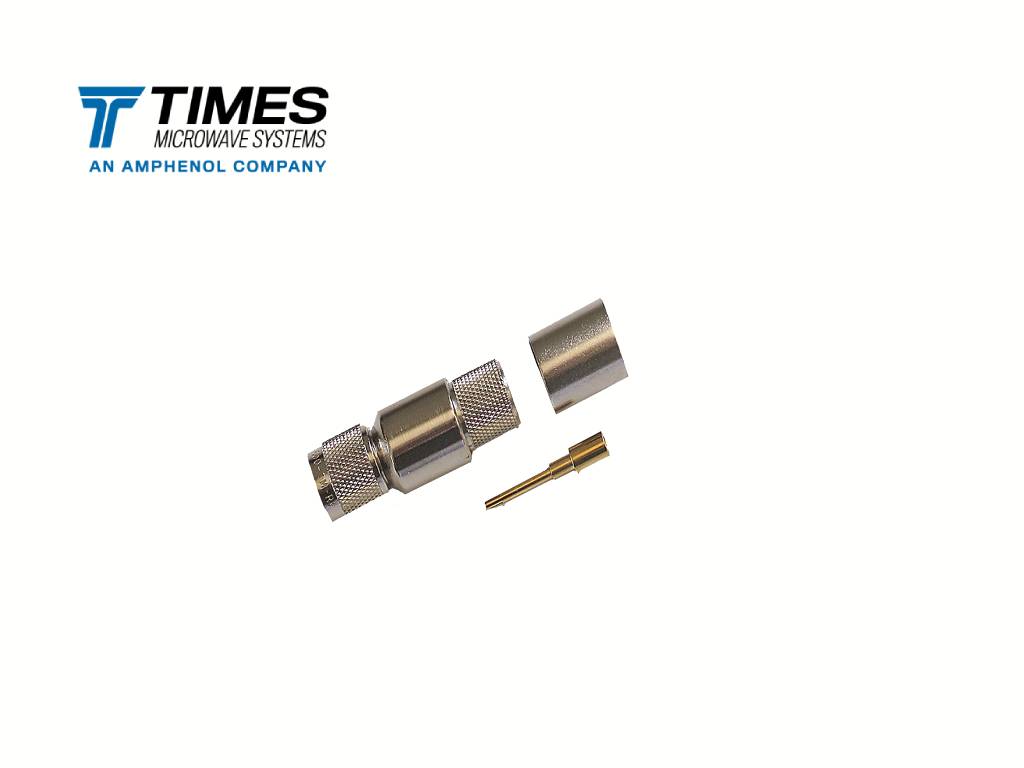

TNC male (plug) straight TC, reverse polarity connector for LMR^®-600, TCOM^®-600, T-RAD^®-600-FR, and FBT-600 type cables.

Stock Code: 3190-1064

TNC male straight

Inventory Status

Distributor	Qty	Order
Microwave Components, LLC	1	Buy

Specs
Compatible with
Hardware
Documentation
Ask an Expert

Specifications

Part NumberTC-600-TM-RP

Stock Code3190-1064

InterfaceTNC

Gender Male (plug)

Orientation Straight

PIM Rating

Impedance (ohms)50

Max Frequency (GHz)6

VSWR Freq<1.25:1

VSWR Frequency (GHz)6

Coupling NutKnurl

Inner Contact AttachSolder

Outer Contact AttachCrimp

Body FinishNickel

Pin FinishGold

Length (mm)54

Length (in)2.12

Width (mm)17.4

Width (in)0.69

Weight (g)50.8

Weight (lb)0.112

Compatible with

Tools and Accessories

WR-600

CST-600

Grounding Kits

Cold Shrink Weatherproofing

Hoisting Grips

Weather Seal Strain Relief Boots

CT-600

CCT-02

CCT-03

Documentation

TC-600-TM-RP Connector Drawing

Download

TC-600-TM-RP Installation Instructions
