TC-600-LCM-PL | Times Microwave Systems
Calculator LMR Cables
Product Finder

TC-600-LCM-PL

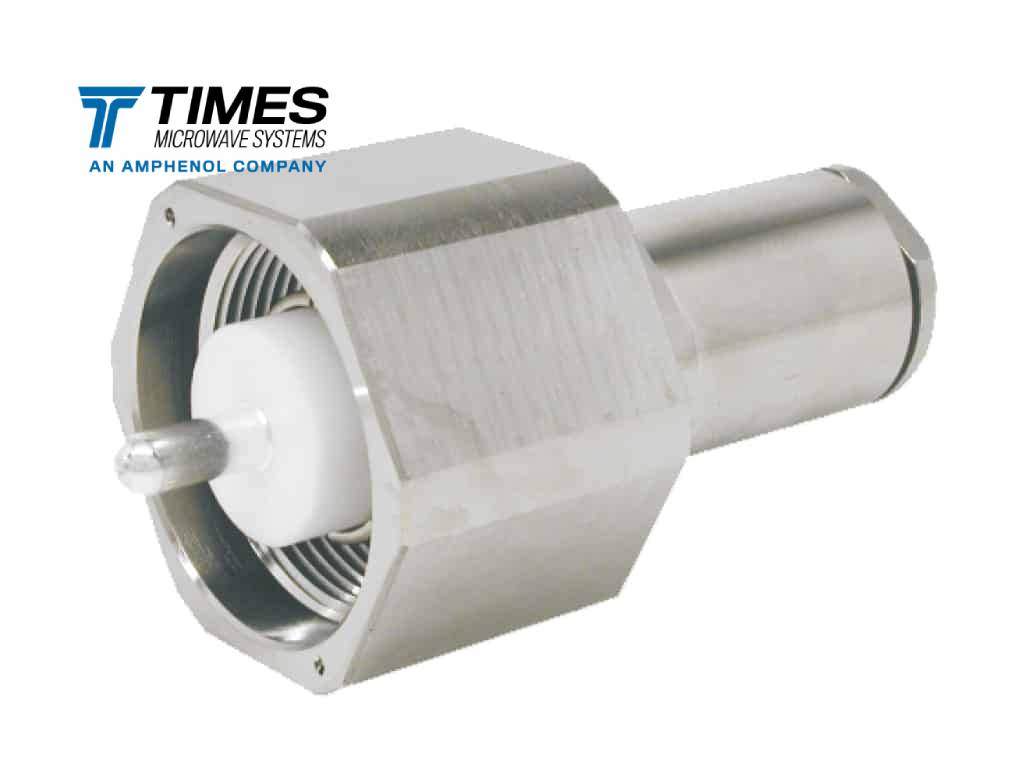

LC male (plug) straight TC connector for LMR®-600 and FBT-600 type cables.

tc-600-lcm-pl-perspective

Stock Code: 3190-1221

LC Male (plug)

Inventory Status
Distributor Qty Order

Specifications

Part NumberTC-600-LCM-PL
Stock Code3190-1221
InterfaceLC
Gender Male (plug)
OrientationStraight
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)1
VSWR Freq<1.25:1
VSWR Frequency (GHz)1
Coupling NutHex/Knurl
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishNickel
Pin FinishSilver
Length (mm)78.7
Length (in)3.1
Width (mm)41.1
Width (in)1.62
Weight (g)544
Weight (lb)1.2

Compatible with

FBT-600 LMR-600-LLPX

Tools and Accessories

CST-600

CST-600

Grounding Kits

Grounding Kits

Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

Cold Shrink Weatherproofing

Cold Shrink Weatherproofing

Hoisting Grips

Hoisting Grips

CT-600

CT-600

CCT-02

CCT-02

CCT-03

CCT-03

Documentation

TC-600-LCM-PL Connector Drawing

Download

TC-600-LCM-PL Installation Instructions

Download

Resources

EZ vs TC Connectors: What’s the Difference?

December 9, 2024 ... more
