TC-240-NF-PM-X

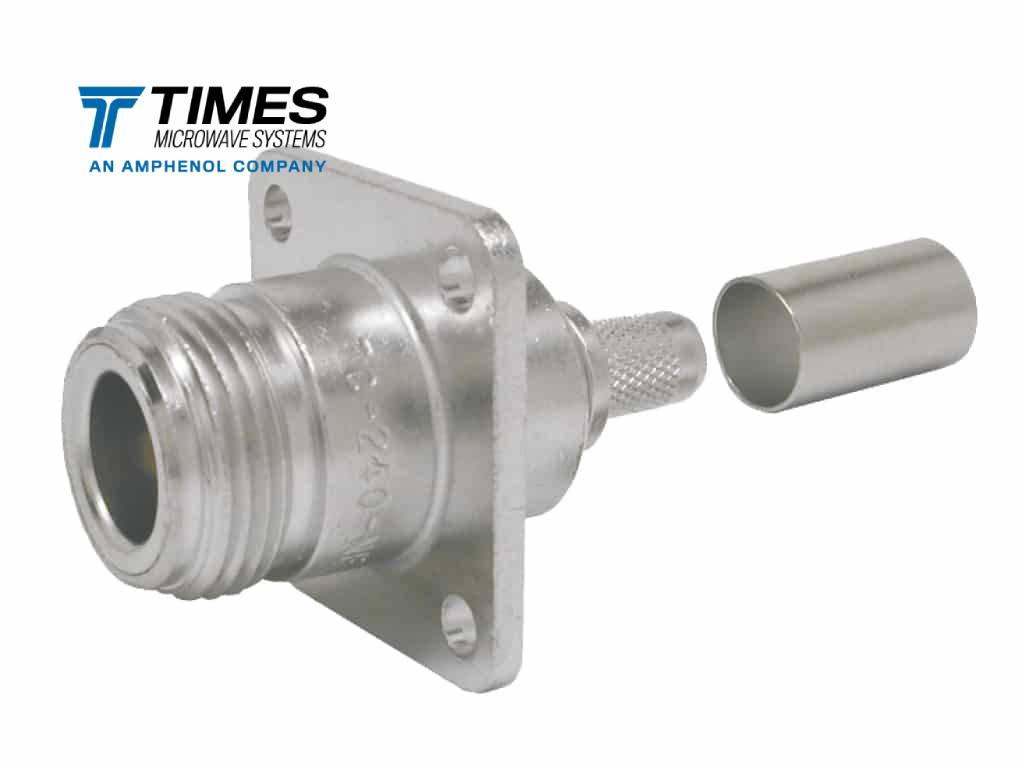

Type N female (jack), straight, TC style RF connector for FBT-240, LMR®-240, and TCOM®-240 type cables.

TC-240-NF-PM-X

Stock Code: 3190-2889

N-female (jack)

Inventory Status
Distributor Qty Order
Mouser Electronics1Buy
CDM Inc.3Buy

Specifications

Part NumberTC-240-NF-PM-X
Stock Code3190-2889
InterfaceN
Gender Female (jack)
Orientation Straight
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)6
VSWR Freq<1.30:1
VSWR Frequency (GHz)6
Coupling NutN/A
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishGold
Length (mm)44
Length (in)1.7
Width (mm)22.2
Width (in)0.88
Weight (g)52.2
Weight (lb)0.12

Compatible with

FBT-240LMR-240LMR-240-DBLMR-240-FRLMR-240-LLPXLMR-240-MALMR-240-PVCTCOM-240TCOM-240-FR

Tools and Accessories

CST-240A

CST-240A

Grounding Kits

Grounding Kits

Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

CCT-02

CCT-02

CCT-03

CCT-03

Documentation

TC-240-NF-PM-X Connector Drawing

Download
