LMR-240

The LMR-240 50 Ohm coaxial cable features a UV- and weather-resistant jacket, making it suitable for long-term outdoor use. It is ideal for high-performance, low-loss RF signal transmission in antenna feeder jumper assemblies and outdoor wireless applications, offering excellent flexibility and durability for easy installation in challenging environments.

LMR-240

Stock Code: 54021

Standard cable, Black PE jacket

Inventory Status
Distributor Qty Order
TTI3000Buy
Powell Electronics80Buy
Talley89364Buy
Mouser Electronics6362Buy
WireMasters9773Buy
Heilind Electronics3533Buy
Graybar2125Buy
DigiKey33234Buy
CDM Inc.42894Buy
Microwave Components, LLC1595Buy
Arrow Electronics438Buy
PEI-Genesis2571Buy
PEI-Genesis2571Buy
RS4000Buy
East Coast Microwave200Buy

Specifications

Part NumberLMR-240
EnvironmentOutdoor
JacketPE
Overall Diameter (mm)6.096
Overall Diameter (in)0.24
Weight Kg/m0.0506
Weight lb/ft0.034
Operating Temp.°C (°F) -40° to 85°C
(-40° to 185°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)0.33895
Bending Moment (ft-lb)0.25
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)1500

Compatible with

TC-240-4310M-X TC-240-716M TC-240-716M-RA-D TC-240-BM-X TC-240-BM-RA-D TC-240-FMEM-X TC-240-MUHF TC-240-NF-BH-X TC-240-NF-PM-X TC-240-NMH-X TC-240-NMH-RA-D TC-240-SF-BH-SS-X TC-240-SM-SS-X TC-240-SM-RA-SS-D TC-240-SM-RP TC-240-TM-X TC-240-TM-RA-D EZ-240-1023M-X EZ-240-BM-RA-X EZ-240-BM-X EZ-240-716M-RA-X EZ-240-NF-X EZ-240-NF-BH-X EZ-240-NMH-RA-X EZ-240-QM-X EZ-240-QM-RA-X EZ-240-SF-X EZ-240-SM-X EZ-240-SM-RA-X EZ-240-TF-X EZ-240-TM-X EZ-240-TM-RP-X EZ-240-UM-X EZ-240-UM-RA-X EZ-240-NMH-X EZ-240-TM-RA-X

Can't find what you're looking for?

Build Your Own LMR® Assembly

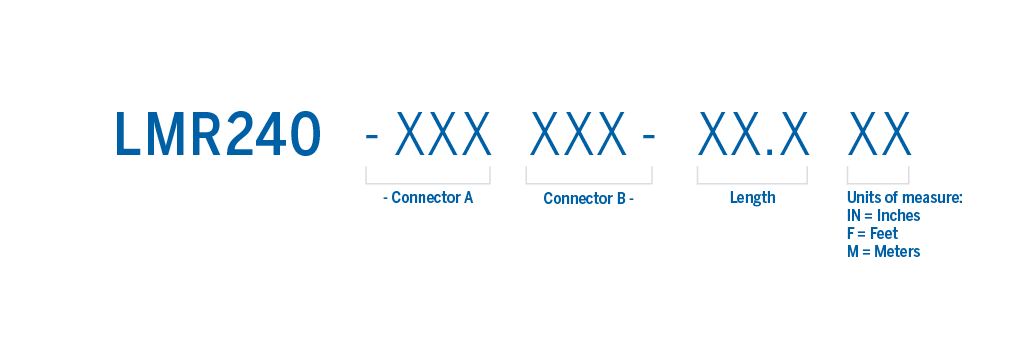

Part Number Structure

lmr-240-part-number

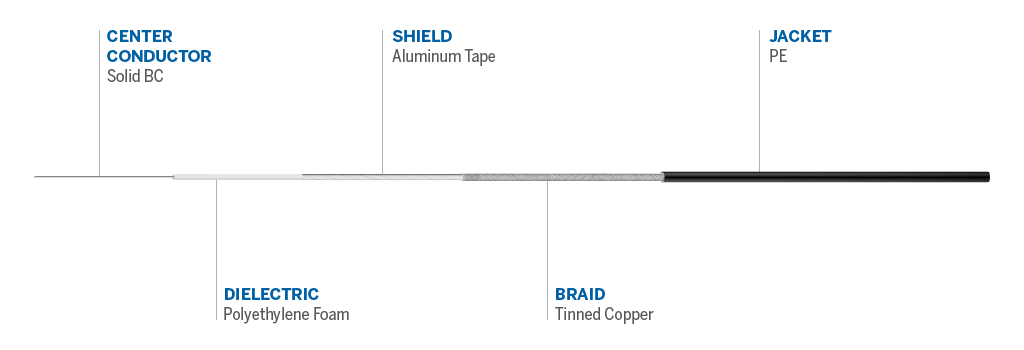

Cable Details

lmr-240-details

Tools and Accessories

CST-240A

CST-240A
CT-240/200/195/100

CT-240/200/195/100
Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots
Grounding Kits

Grounding Kits
CCT-03

CCT-03
CCT-02

CCT-02
Cold Shrink Weatherproofing

Cold Shrink Weatherproofing

Documentation

lmr-guide-brochure-scaled-1

LMR Guide

Download
lmr-guide-brochure-european-version-featured

LMR Guide- European Version

Download
LMR-240 Coax Cables Datasheet

LMR-240 Coax Cables Datasheet

Download
