CST-240A

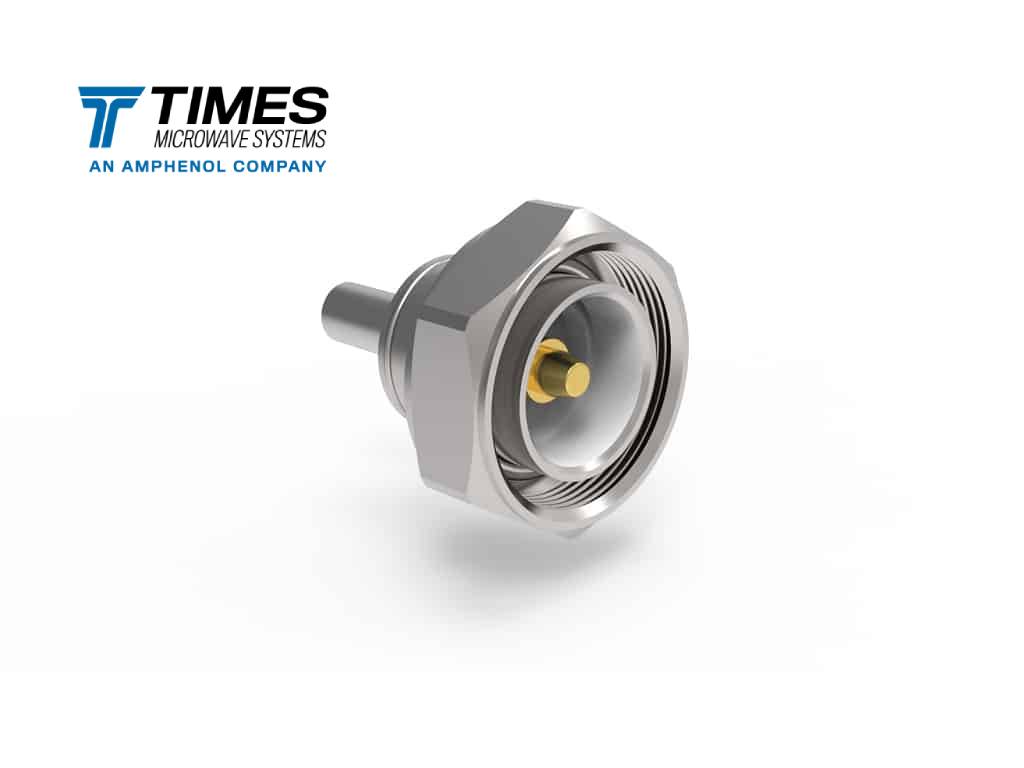

TC-240-716M
7/16 DIN male (plug), straight, TC style connector for FBT-240, LMR®-240, and TCOM®-240 type cables. The TC-240-716M features a solder-pin connector and is a perfect option for stranded center conductors. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems.
Stock Code: 3190-2982
7/16 DIN male
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberTC-240-716M |
| Stock Code3190-2982 |
| Interface7/16 DIN |
| Gender Male (plug) |
| Orientation Straight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)3 |
| VSWR Freq<1.15:1 |
| VSWR Frequency (GHz)3 |
| Coupling NutHex |
| Inner Contact AttachSpring Finger |
| Outer Contact AttachCrimp |
| Body FinishAlballoy |
| Pin FinishSilver |
| Length (mm)50.5 |
| Length (in)2 |
| Width (mm)32 |
| Width (in)1.26 |
| Weight (g)84.4 |
| Weight (lb)0.19 |
Tools and Accessories
Grounding Kits
Weather Seal Strain Relief Boots
CCT-02
CCT-03
