CST-240A
EZ-240-TM-PL-X

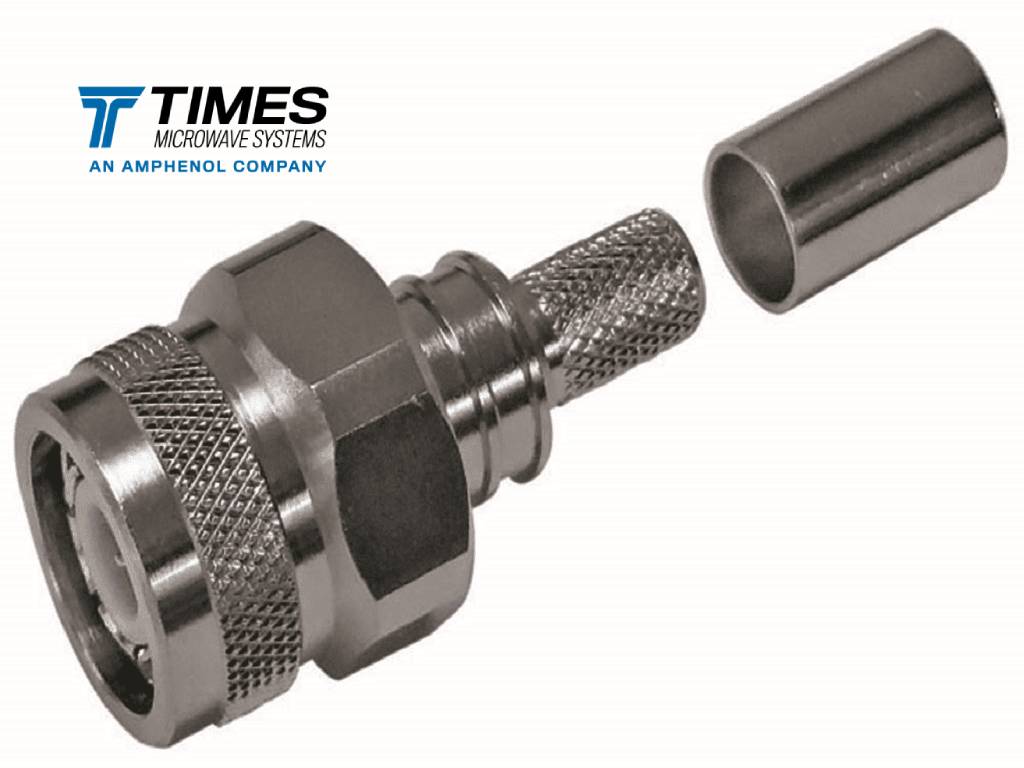

Type TNC, male (plug), straight, EZ style connector for FBT-240 and LMR®-240-LLPX® type cables.
Stock Code: 3190-6373
TNC-male (plug)
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberEZ-240-TM-PL-X |
| Stock Code3190-6373 |
| InterfaceTNC |
| Gender Male (plug) |
| Orientation Straight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz)6 |
| VSWR Freq<1.30:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex/Knurl |
| Inner Contact AttachSpring Finger |
| Outer Contact AttachCrimp |
| Body FinishAlballoy |
| Pin FinishGold |
| Length (mm)34 |
| Length (in)1.34 |
| Width (mm)17.2 |
| Width (in)0.68 |
| Weight (g)24 |
| Weight (lb)0.05 |
Compatible with
Tools and Accessories
Grounding Kits
Weather Seal Strain Relief Boots
CCT-02
CCT-03
