Phase Track® Cable – TF4™ Dielectric: The “Knee Replacement”

By Michael Brewster, Director of Business Development, Times Microwave Systems

Thermal Vacuum & Space Flight Applications

In our continuing pursuit for excellence, Times Microwave Systems has developed the Phase Track® line of phase stable, low loss cable products. These products are designed for use on many application platforms, but are particularly well suited for thermal vacuum test and space flight cable requirements. These cables incorporate a revolutionary new dielectric composition that eliminates the infamous non-linear “knee” exhibited by Polytetrafluoroethylene (PTFE) based dielectrics. A brief summary of the history of cable dielectric materials will further illustrate this dramatic breakthrough in microwave transmission line technology.

Over the years, many materials have been used for transmission line dielectrics. These materials have ranged from paper to a variety of Polyethylene (PE) and PTFE materials. There have been many variations for these materials; efforts have been made to reduce the dielectric constant by injecting air, or gases into the material to achieve better performance. There are advantages that some materials have over others, but it became clear that the best overall dielectric material for transmission lines and many other microwave components was PTFE.

The major application of PTFE, consuming about 50% of production, is for wiring in aerospace and computer applications, e.g. hookup wire, coaxial cables. These applications exploit the fact that PTFE has excellent dielectric properties. This is especially true at high radio frequencies, making it suitable for use as an insulator in cables and connector assemblies and as a material for printed circuit boards used at microwave frequencies. Combined with its high melting temperature, this makes it the material of choice as a high-performance substitute for the weaker and lower melting point PE dielectrics, which are commonly used in low-cost applications.

There is one major issue with PTFE based dielectrics; they exhibit an inherent, non-linear change in phase when the material passes through the 15-25º Celsius temperature range. This material hysteresis has caused major issues for phased array radar antenna designers for many years. There have been attempts to minimize this non-linear effect by thermal cycling cables and components, as well as, efforts to introduce other materials to help minimize this condition. One of the more successful efforts was to add glassine materials to the dielectric. This did help to reduce the hysteresis effect, but was not conducive to good electrical performance. The added glass increased the dielectric constant and loss tangent of the material, thereby increasing attenuation. The other
major disadvantage was the effect the glassine materials had on extrusion dies used to produce the material. The cost of manufacturing these materials went up greatly, as the dies used for manufacturing had to be replaced often and the material had to be run at much slower rates.

In the 1970s, an engineer experimenting with cable dielectrics made a significant breakthrough when he took a PTFE rod, heated it and stretched it. The stretching process pulled the material apart on a micro-physical level, there- by trapping air between interconnecting fibrils of the PTFE rod. After electrical testing, it was apparent that the air had lowered the dielectric constant and a new, low density PTFE dielectric was discovered. This low density material lowered attenuation, increased the velocity of propagation, power handling and allowed for smaller transmission lines. These were all very significant factors in moving to the next level in coaxial cable performance. However, one aspect does not change, the non-linear phase characteristics of the dielectric. It was better than the solid,
sintered performance of the original PTFE compositions, but the non-linear phase change, although some- what smaller, is still present.

There have been other breakthroughs in dielectric science utilizing Silicone Dioxide (SiO2) materials that have greater thermal capabilities than PTFE and do not exhibit the non-linear performance in phase, but have other serious concerns. The SiO2 product, like the old paper dielectrics are very susceptible to moisture ingression, with serious absorption qualities and must be encapsulated within a completely hermetic cable system. This requires the use of semi-rigid outer conductors that requires special bending dies The SiO2 cables are very well suited to very severe environments, such as extreme heat and radioactive applications, but are not practical, or economical for the bulk of microwave applications that require flexible cables.

Many companies, including TMS have utilized Polyethylene (PE) for dielectric cores in coaxial cables, as it does not exhibit the phase hysteresis effect that PTFE does. It is a low temperature dielectric by comparison and does not yield many of the overall benefits that PTFE does for high temperature and electrical performance. There have been many attempts to improve the PE electrical characteristics by injecting air, or gas during the extrusion process to lower the dielectric constant and achieve better attenuation performance, but one detail always remains the same, one cannot improve the temperature handling capability of PE. This limits the power handling of the cable and prevents the use of fully soldered connector attachments.

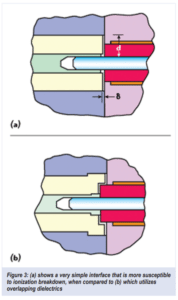

Many space level testing applications may include the cable’s ability to survive in a radiation environment. In this case, TMS will apply the proper external materials on the cable
to withstand a radiation active environment. These cables are protected by multiple
layers of materials that allow for excel- lent microwave operation in the most
difficult and highly radioactive environment. The standard cable jacketing materials
used on coaxial cable, PE, PFA and FEP will not stand up to significant radiation. The best
thermoplastic material for radiation resistance in flexible cables is TEFZEL®, manufactured by DuPont. They produce several grades of this product that have varying degrees of radiation resistance. TMS will also use PVDF (Kynar) for heat shrink strain relief
systems because it also has excellent radiation resistant properties. The cable is
extremely well shielded by multiple layers of silver plated secondary conductors
served over the TF4™ dielectric core.

TMS is currently working with several large satellite manufacturers to supply low loss, phase stable cable assemblies for use on space flight applications. The Phase Track® products are
leading the way in these efforts and provide our customers with the best possible
cable performance available in our industry. All of the above noted
benefits make these assemblies reliable and electrically superior for these very
demanding applications. We have instituted a very robust and disciplined process control
system to manufacture these cable assemblies with the utmost concern for quality and
schedule adherence. TMS understands the need for reliable products, delivered on-
time, with the highest degree of quality control.

The Phase Track® products are also extremely well suited for phased array radar, high power antenna and other applications requiring precise phase stability. Times manufactures a wide variety of cable products with specialized processes that include the extrusion of PTFE and PE in both, sintered and foamed versions. We also manufacture tape wrapped, low density PTFE dielectrics
that have an excellent velocity of propagation, low loss and very high power handling capabilities. These cables incorporate high levels of shielding to prevent intermodulation and have outstanding RF leakage qualities. We want to emphasize that TMS has the largest product selection available in our industry and we have a cable available for any of today’s most demanding microwave applications.
