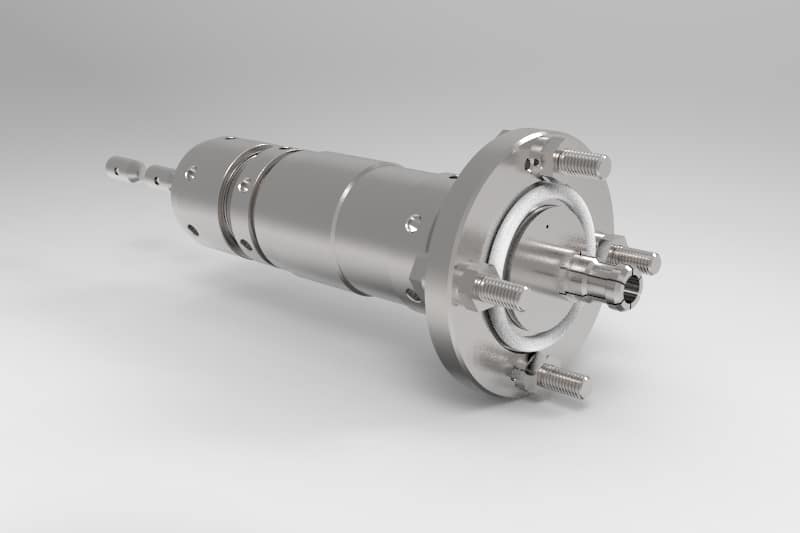

TC-HPL1200-158EIAC

Type 1-5/8 EIA, flange, male (plug), straight, TC style connector for HP-1200 and HPL-1200 type cables.

Stock Code: 3190-3028

1-5/8 EIA flange, straight

Request a Quote

Specifications

Part NumberTC-HPL1200-158EIAC
Stock Code3190-3028
Interface1-5/8 EIA Flange
Gender Male (plug)
OrientationStraight
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)1
VSWR Freq1.1
VSWR Frequency (GHz)1
Coupling NutFlange
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishSilver
Length (mm)210
Length (in)8.268
Width (mm)89
Width (in)3.504
Weight (g)
Weight (lb)

Compatible with

HP-1200 HPL-1200
