TC-600T-158EIA-RA-CL

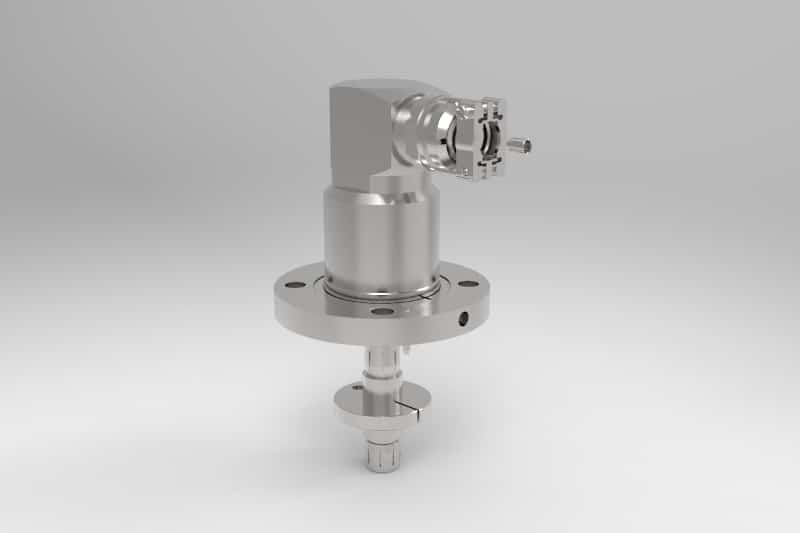

Type 1-5/8 EIA, flange, male (plug), right angle, TC style connector for HP-600A, HPL-600, LMR®-600-LLPX®, and SFT-600 type cables.

Stock Code: 3190-6559

1-5/8 EIA Flange, right angle, with cable clamp

Request a Quote

Specifications

Part NumberTC-600T-158EIA-RA-CL
Stock Code3190-6559
Interface1-5/8 EIA Flange
Gender Male (plug)
OrientationRight Angle
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)2.5
VSWR Freq1.3
VSWR Frequency (GHz)2.5
Coupling NutFlange
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishSilver
Length (mm)93.9
Length (in)3.697
Width (mm)89
Width (in)3.504
Weight (g)
Weight (lb)

Compatible with

HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL
