WR-600
TC-600-TF-RP

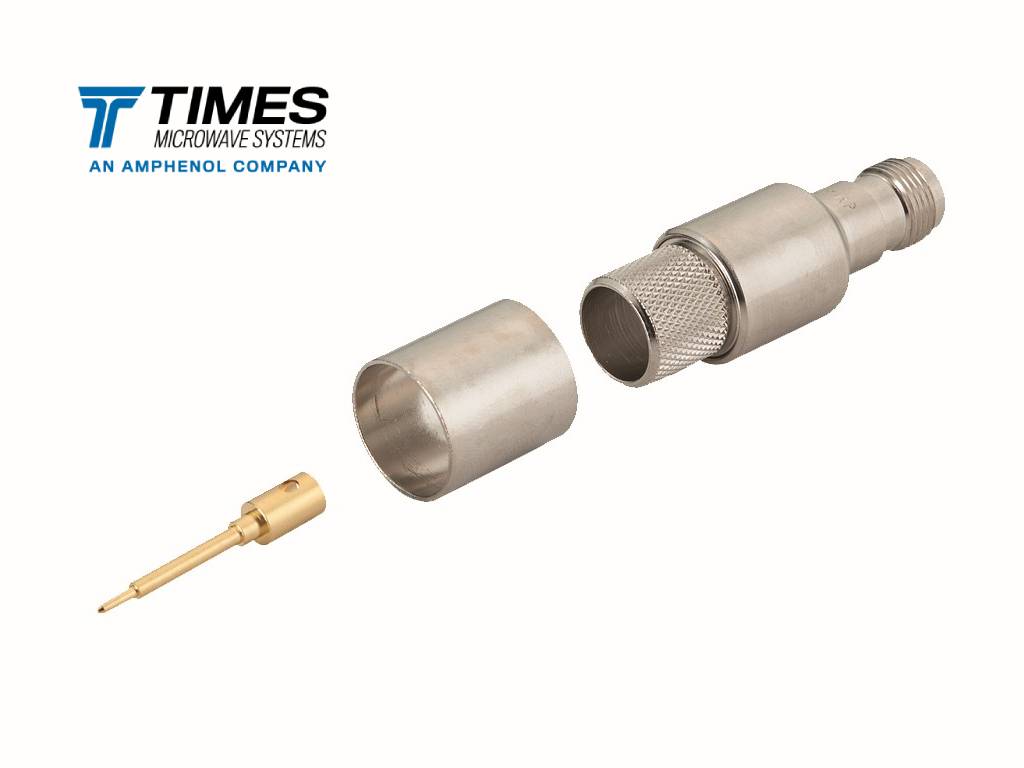

TNC female (jack) straight, reverse polarity, TC connector for LMR®-600, TCOM®-600, T-RAD®-600-FR, and FBT-600 type cables.
Stock Code: 3190-1065
TNC Female (straight)
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberTC-600-TF-RP |
| Stock Code3190-1065 |
| InterfaceTNC |
| Gender Female (jack) |
| Orientation Straight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)6 |
| VSWR Freq<1.35:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishNickel |
| Pin FinishGold |
| Length (mm)55.8 |
| Length (in)2.2 |
| Width (mm)17.3 |
| Width (in)0.68 |
| Weight (g)45.4 |
| Weight (lb)0.1 |
