TC-600-NMH-75-50

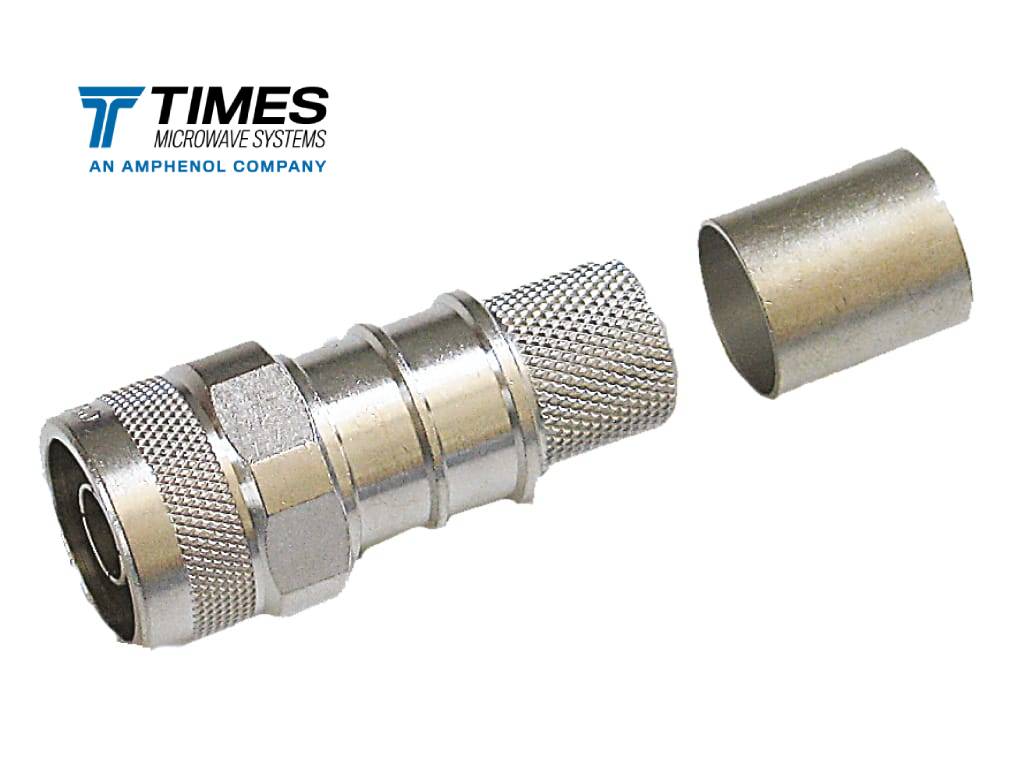

N male (plug) straight TC connector for LMR®-600-75 type cables

tc-600-nmh-75-50-perspective

Stock Code: 3190-1610

N Male (plug)

Inventory Status
Distributor Qty Order
Mouser Electronics19Buy

Specifications

Part NumberTC-600-NMH-75-50
Stock Code3190-1610
InterfaceN
Gender Male (plug)
OrientationStraight
PIM RatingN/A
Impedance (ohms)75
Max Frequency (GHz)6
VSWR Freq<1.35:1
VSWR Frequency (GHz)6
Coupling NutHex
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishNickel
Pin FinishGold
Length (mm)52.8
Length (in)2.1
Width (mm)23.1
Width (in)0.91
Weight (g)59
Weight (lb)0.13

Compatible with

LMR-600-75 LMR-600-75-DB LMR-600-75-FR
