TC-600-NMC-RA | Times Microwave Systems

TC-600-NMC-RA

N male (plug) right angle TC connector for FBT-600, TCOM®-600, and LMR®-600 type cables

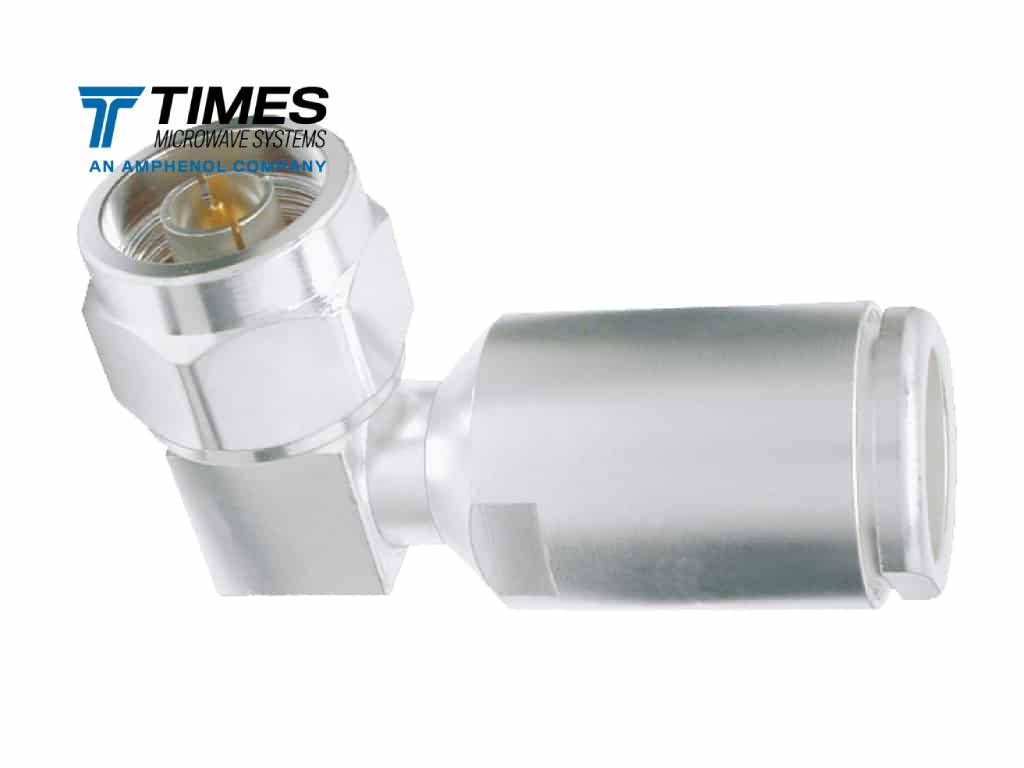

tc-600-nmc-ra-perspective

Stock Code: 3190-233

N Male (right angle)

Request a Quote

Specifications

Part NumberTC-600-NMC-RA
Stock Code3190-233
InterfaceN
Gender Male (plug)
OrientationRight Angle
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)2.5
VSWR Freq<1.35:1
VSWR Frequency (GHz)2.5
Coupling NutHex
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishSilver
Pin FinishGold
Length (mm)53
Length (in)2.1
Width (mm)23.4
Width (in)0.92
Weight (g)17.9
Weight (lb)0.28
