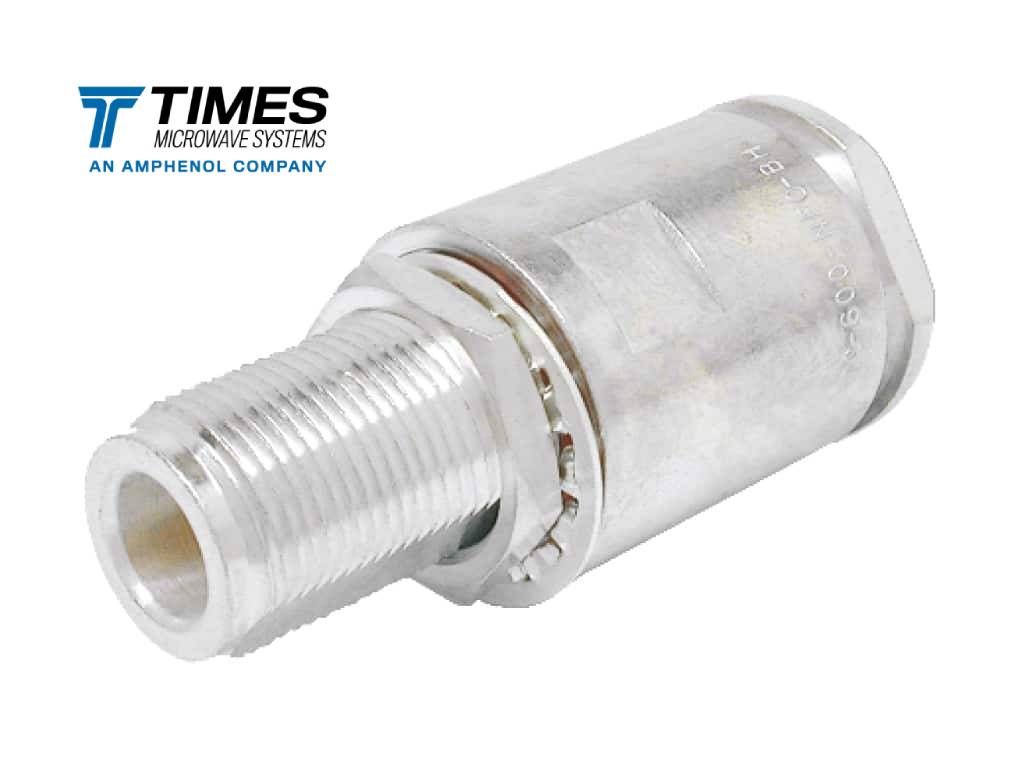

TC-600-NFC-BH

Type N female (jack), straight, TC style connector for FBT-600, LMR^®-600, TCOM^®-600, and T-RAD^®-600 coaxial cables.

Stock Code: 3190-466

N-female (jack)

Inventory Status

Distributor	Qty	Order

Specs
Compatible with
Hardware
Documentation
Ask an Expert

Specifications

Part NumberTC-600-NFC-BH

Stock Code3190-466

InterfaceN

Gender Female (jack)

Orientation Straight

PIM RatingN/A

Impedance (ohms)50

Max Frequency (GHz)2.5

VSWR Freq<1.25:1

VSWR Frequency (GHz)2.5

Coupling NutN/A

Inner Contact AttachSolder

Outer Contact AttachClamp

Body FinishSilver

Pin FinishGold

Length (mm)56

Length (in)2.2

Width (mm)23.9

Width (in)0.94

Weight (g)97.1

Weight (lb)0.21

Compatible with

Tools and Accessories

WR-600

CST-600

Cold Shrink Weatherproofing

Grounding Kits

Hoisting Grips

Weather Seal Strain Relief Boots

CT-600

CCT-02

CCT-03

Documentation

TC-600-NFC-BH Connector Drawing

Download

TC-600-NFC-BH Installation Instructions
