TC-400-NM

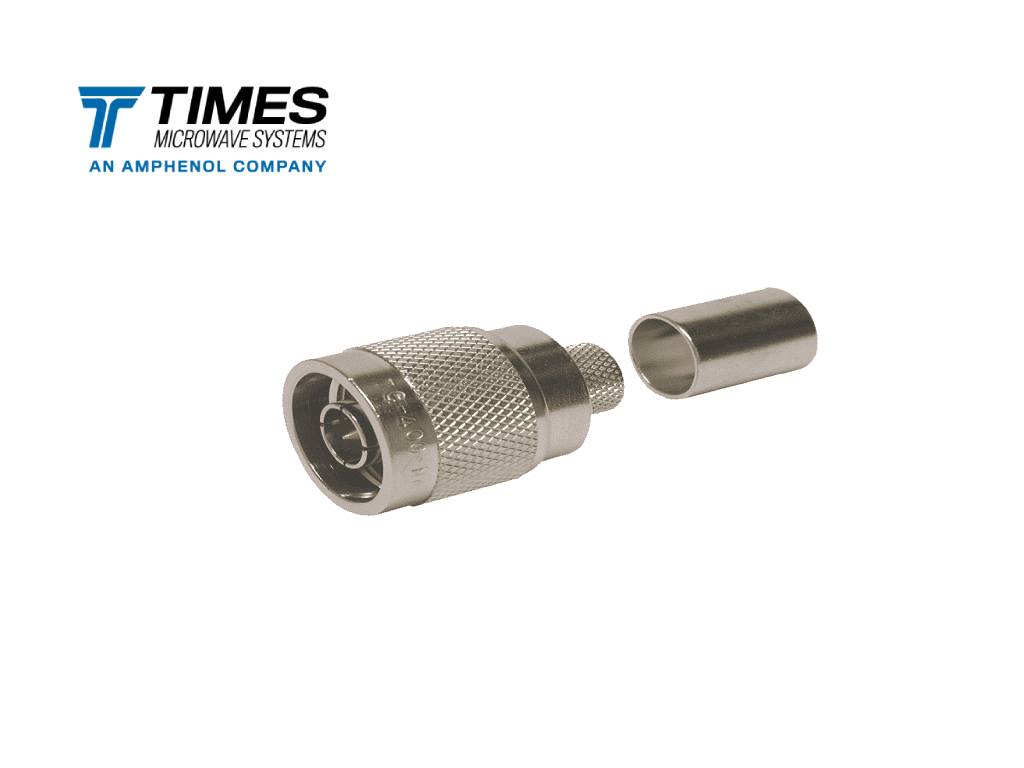

N male (plug) straight TC connector for LMR®-400 type cables.

tc-400-nm-connector

Stock Code: 3190-188

N male straight

Inventory Status
Distributor Qty Order
FDH Electronics5Buy
CDM Inc.95Buy
Microwave Components, LLC10Buy

Specifications

Part NumberTC-400-NM
Stock Code3190-188
InterfaceN
Gender Male (plug)
OrientationStraight
PIM Rating
Impedance (ohms)50
Max Frequency (GHz)2.5
VSWR Freq<1.25:1
VSWR Frequency (GHz)2.5
Coupling NutKnurl
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishNickel
Pin FinishGold
Length (mm)38
Length (in)1.5
Width (mm)19.1
Width (in)0.75
Weight (g)40.8
Weight (lb)1.09

Compatible with

LMR-400

Tools and Accessories

CCT-02

CCT-02

CCT-03

CCT-03

Cold Shrink Weatherproofing

Cold Shrink Weatherproofing

CST-400

CST-400

CT-U

CT-U

TK-400EZ

TK-400EZ

Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

Documentation

TC-400-NMC-2 Connector Drawing

Download
