TC-400-NM-75

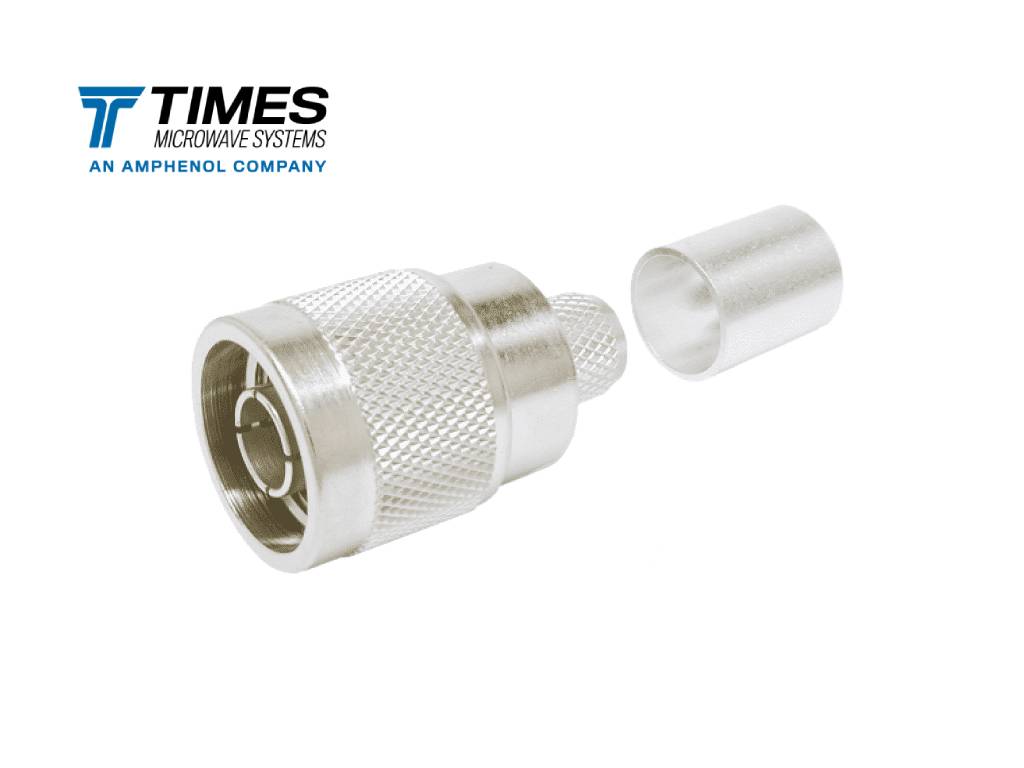

Type N, male (plug), straight, TC style connector for LMR®-400-75 coaxial cables.

Stock Code: 3190-389

N Male (plug)

Inventory Status
Distributor Qty Order

Specifications

Part NumberTC-400-NM-75
Stock Code3190-389
InterfaceN
Gender Male (plug)
OrientationStraight
PIM RatingN/A
Impedance (ohms)75
Max Frequency (GHz)2.5
VSWR Freq<1.25:1
VSWR Frequency (GHz)2.5
Coupling NutKnurl
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishNickel
Pin FinishGold
Length (mm)38.1
Length (in)1.5
Width (mm)21.1
Width (in)0.83
Weight (g)40.8
Weight (lb)0.9

Compatible with

LMR-400-75 LMR-400-75-FR

Tools and Accessories

CST-400-75

CST-400-75

Grounding Kits

Grounding Kits

Hoisting Grips

Hoisting Grips

CCT-02

CCT-02

CCT-03

CCT-03

CST-400

CST-400

Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

Documentation

TC-400-NM-75-50 Connector Drawing

Download

TC-400-NM-75 Installation Instructions

Download
