CST-400
TC-400-NFC

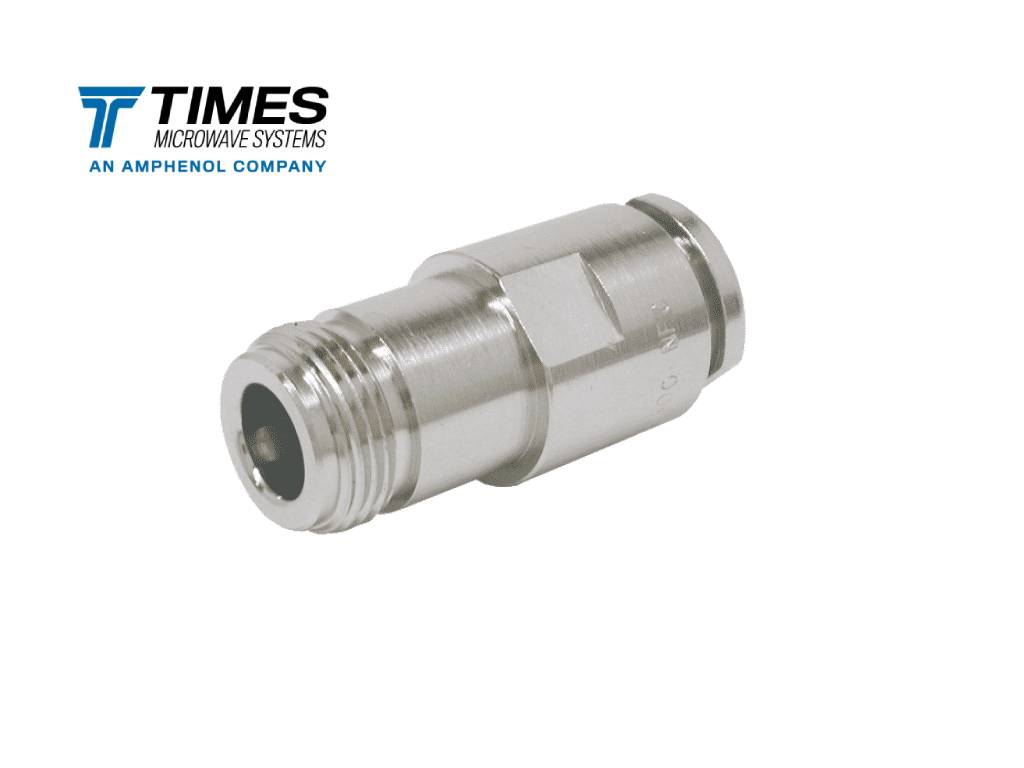

Type N female (jack), straight, TC style connector for FBT-400, TCOM®-400, LMR®-400, and T-RAD®-400-FR type cables.
Stock Code: 3190-299
N-female (jack)
Request a Quote
Specifications
| Part NumberTC-400-NFC |
| Stock Code3190-299 |
| InterfaceN |
| Gender Male (plug) |
| Orientation Straight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)2 |
| VSWR Freq<1.25:1 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutN/A |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishNickel |
| Pin FinishSilver |
| Length (mm)41 |
| Length (in)1.6 |
| Width (mm)19.1 |
| Width (in)0.75 |
| Weight (g)54 |
| Weight (lb)0.12 |
