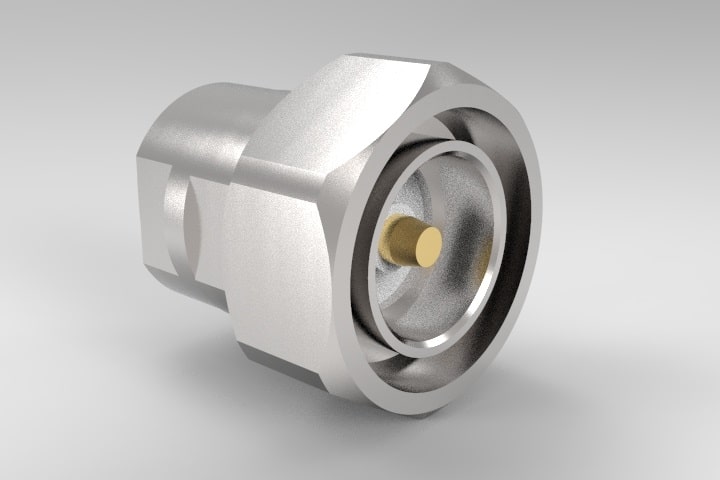

TC-400-716MC
Type 716 DIN male (plug) for LMR-400 coaxial cable
Stock Code: 3190-279
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberTC-400-716MC |
| Stock Code3190-279 |
| Interface7/16 DIN |
| Gender Male (plug) |
| Orientation Straight |
| PIM Rating |
| Impedance (ohms) |
| Max Frequency (GHz)2 |
| VSWR Freq1:25:1 |
| VSWR Frequency (GHz) |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact Attach |
| Body FinishSilver |
| Pin FinishSilver |
| Length (mm)38.6 |
| Length (in)1.52 |
| Width (mm)35.3 |
| Width (in)1.39 |
| Weight (g) |
| Weight (lb) |

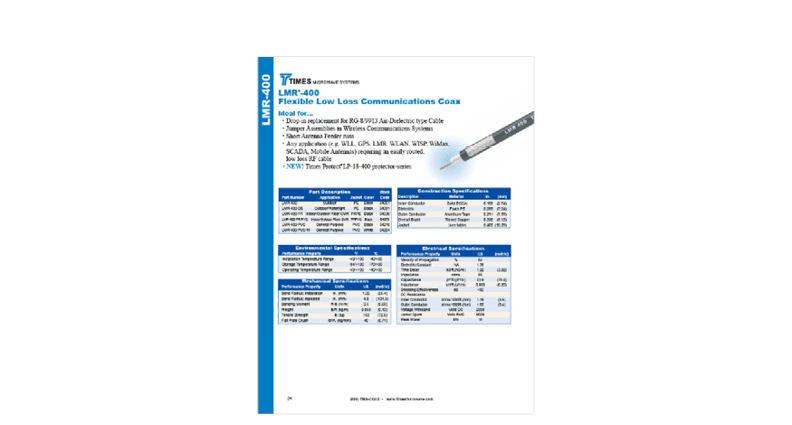

Documentation
