CST-400

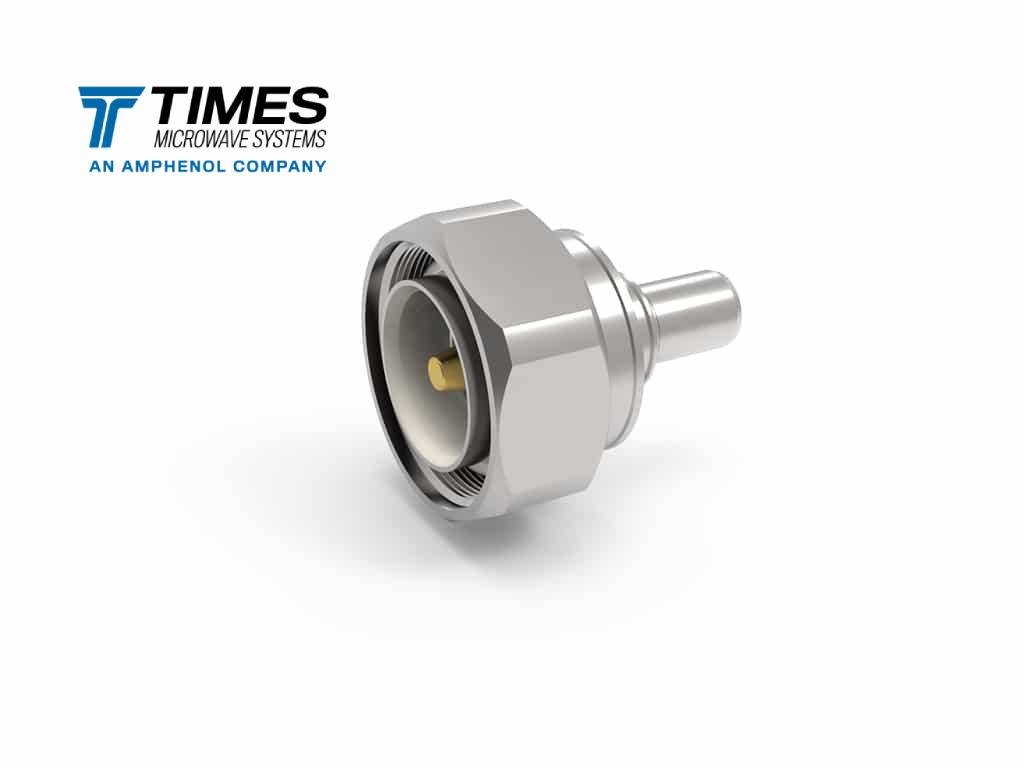

TC-400-716M-X
7/16 DIN male (plug) straight TC connector for FBT-400, LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables. The TC-400-716M-X features a solder-pin connector and is a perfect option for stranded center conductors. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems. This is a male (plug), straight connector for 400-size cables.
Stock Code: 3190-2597
7/16 DIN male (plug)
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberTC-400-716M-X |
| Stock Code3190-2597 |
| Interface7/16 DIN |
| Gender male (plug) |
| OrientationStraight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz)6 |
| VSWR Freq<1.30:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishAlballoy |
| Pin FinishSilver |
| Length (mm)39.5 |
| Length (in)1.6 |
| Width (mm)36 |
| Width (in)1.42 |
| Weight (g)145 |
| Weight (lb)0.32 |
Compatible with
Tools and Accessories
Grounding Kits
Hoisting Grips
Weather Seal Strain Relief Boots
CCT-02
CCT-03
Documentation
