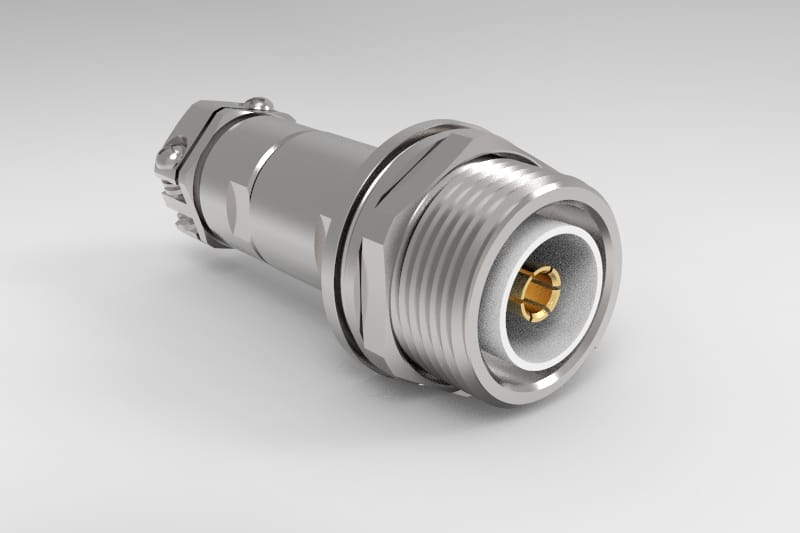

TC-393-716F-BH-CL
Type 7/16 DIN, female (jack), straight, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-214, and SFT-393 type cables.
Stock Code: 3190-6075
7/16 DIN, female, straight
Request a Quote
Specifications
| Part NumberTC-393-716F-BH-CL |
| Stock Code3190-6075 |
| Interface7/16 DIN |
| Gender Female (jack) |
| Orientation Straight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq1.25 |
| VSWR Frequency (GHz)2.5 |
| Coupling Nut |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)48.3 |
| Length (in)1.902 |
| Width (mm)34.9 |
| Width (in)1.374 |
| Weight (g) |
| Weight (lb) |
Compatible with
