TC-3116-TM-RA-X

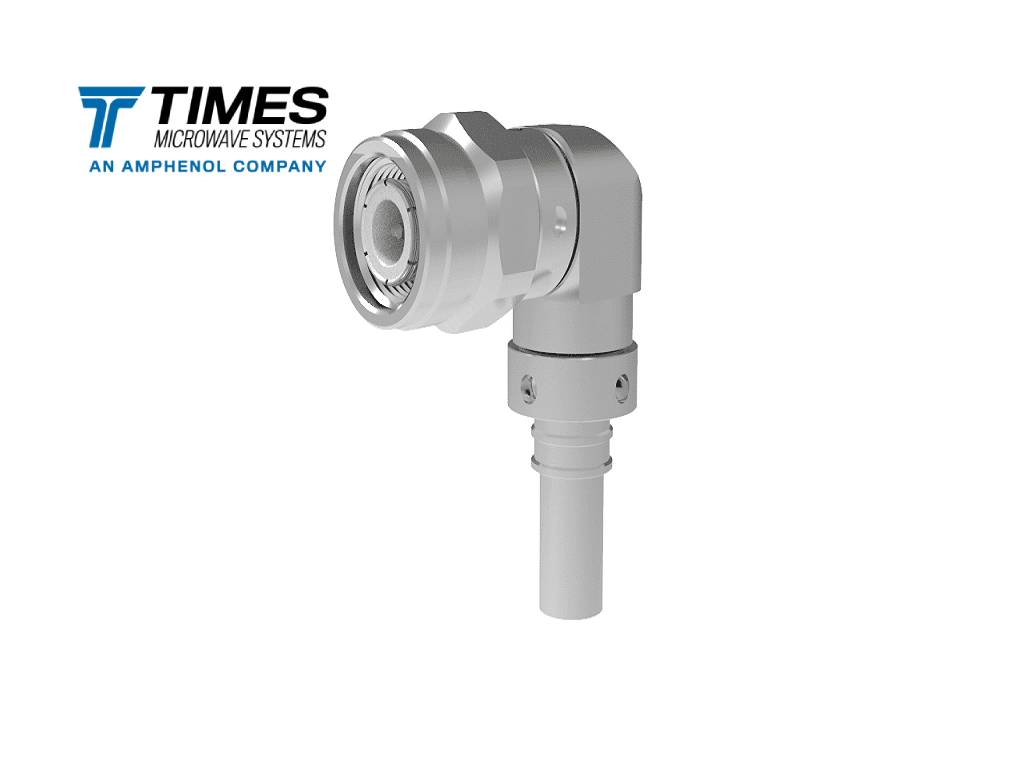

Type TNC, male (plug), right angle, TC style connector for TCA311601. The TC-3116-TM-RA-X features a solder-pin connector and is a perfect option for stranded center conductors. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance.

tc-3116-tm-ra-x-connector

Stock Code: 3190-8078

Right Angle TNC male (plug) connector for TCA assemblies

Request a Quote

Specifications

Part NumberTC-3116-TM-RA-X
Stock Code3190-8078
InterfaceTNC
Gender Male (plug)
OrientationRight Angle
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)
VSWR Freq<1.3:1
VSWR Frequency (GHz)6
Coupling NutHex/Knurl
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishBi-Metal
Pin FinishGold
Length (mm)40.85
Length (in)1.61
Width (mm)36.9
Width (in)1.45
Weight (g)48.97
Weight (lb)0.11

Compatible with

TCA-311601
