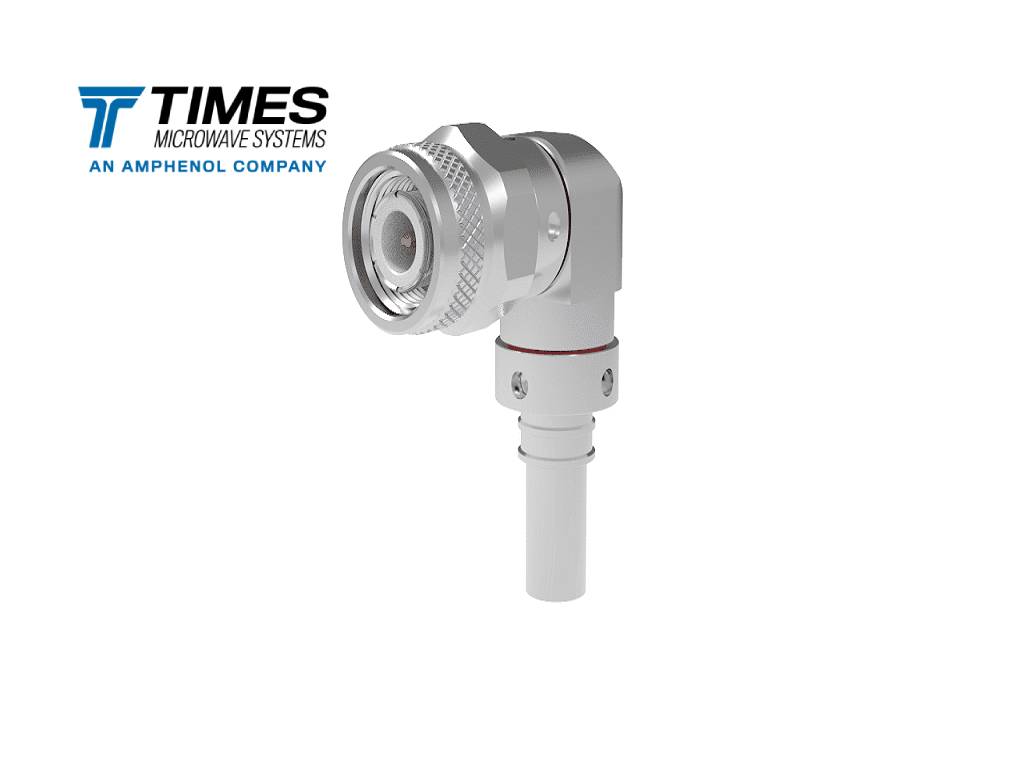

TC-3115-TM-RA-X
Type TNC, male (plug), right angle, TC style connector for TCA311501. Type TNC, male (plug), right angle, TC style connector for TCA311501. The TC-3115-TM-RA-X features a solder-pin connector and is a perfect option for stranded center conductors. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance.
Stock Code: 3190-8076
Right Angle TNC male (plug) connector for TCA assemblies
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberTC-3115-TM-RA-X |
| Stock Code3190-8076 |
| InterfaceTNC |
| Gender male (plug) |
| OrientationRight Angle |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.3:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex/Knurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishBi-Metal |
| Pin FinishGold |
| Length (mm)40.85 |
| Length (in)1.61 |
| Width (mm)36.9 |
| Width (in)1.45 |
| Weight (g)48.8 |
| Weight (lb)0.11 |
