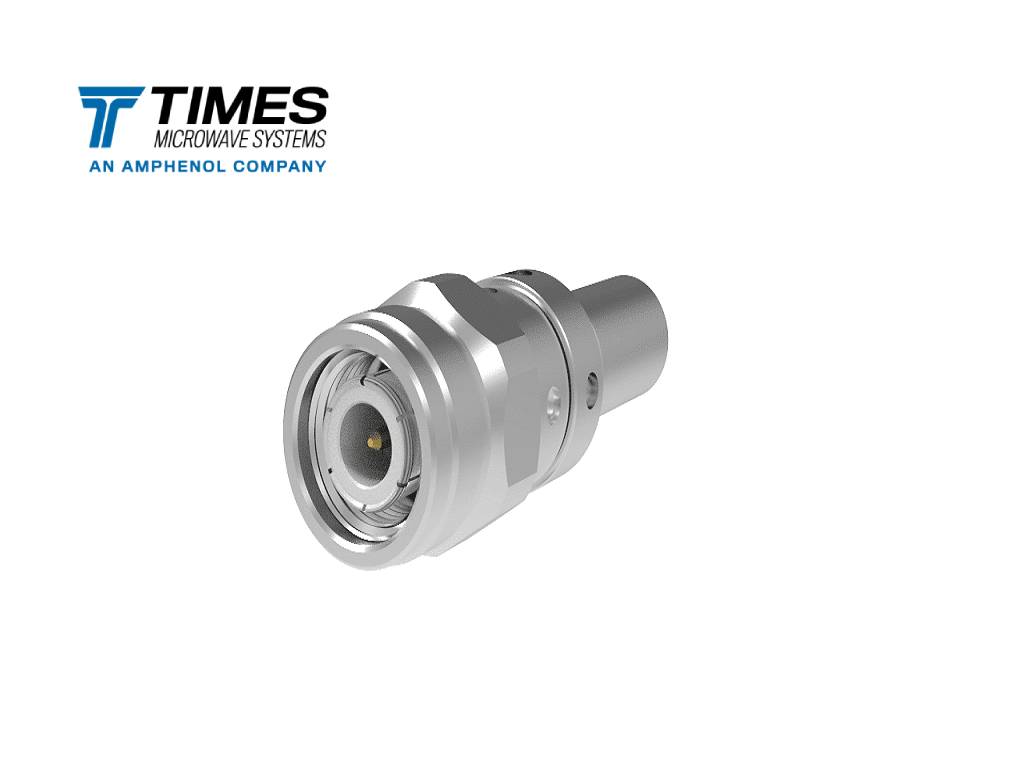

TC-3112-TM-X
Type TNC, male (plug), straight, TC style connector for TCA311201. The TC-3112-TM-X features a solder-pin connector and is a perfect option for stranded center conductors. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance.
Stock Code: 3190-8073
Straight TNC male (plug) connector for TCA assemblies
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberTC-3112-TM-X |
| Stock Code3190-8073 |
| InterfaceTNC |
| Gender male (plug) |
| OrientationStraight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.3:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex/Knurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishBi-Metal |
| Pin FinishGold |
| Length (mm)44.3 |
| Length (in)1.74 |
| Width (mm)17.2 |
| Width (in)0.68 |
| Weight (g)31.92 |
| Weight (lb)0.07 |
