TC-226-716M-RA-CL

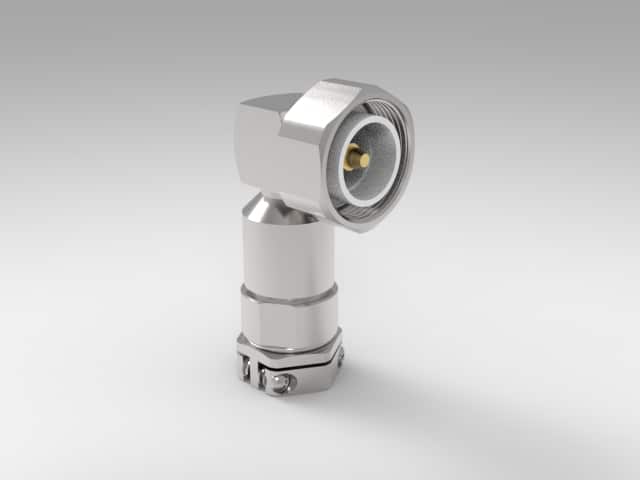

Type 7/16 DIN, male (plug), right angle, TC style connector for HPL-226, HPL-393, and SFT-226 type cables.

TC-226-716M-RA-CL

Stock Code: 3190-2625

7/16 DIN, male, right angle

Request a Quote

Specifications

Part NumberTC-226-716M-RA-CL
Stock Code3190-2625
Interface7/16 DIN
Gender Male (plug)
Orientation Right Angle
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)
VSWR Freq
VSWR Frequency (GHz)
Coupling Nut
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishSilver
Length (mm)52
Length (in)2.047
Width (mm)32
Width (in)1.26
Weight (g)
Weight (lb)

Compatible with

HP-226HPL-226HPL-393SFT-226
