TC-218-158EIA-CL

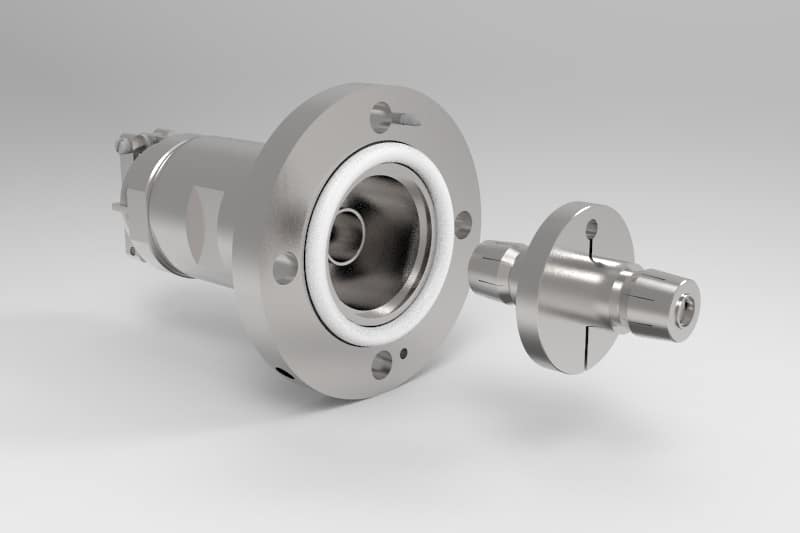

Type 1-5/8 EIA, flange, male (plug), straight, TC style connector for HPL-218 and HP-218 type cables.

Stock Code: 3190-2473

1-5/8 EIA Flange, straight, with cable clamp

Request a Quote

Specifications

Part NumberTC-218-158EIA-CL
Stock Code3190-2473
Interface1-5/8 EIA Flange
Gender Male (plug)
OrientationStraight
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)0.5
VSWR Freq1.2
VSWR Frequency (GHz)0.5
Coupling NutFlange
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishSilver
Length (mm)114.25
Length (in)4.498
Width (mm)89
Width (in)3.504
Weight (g)
Weight (lb)

Compatible with

HP-218 HPL-218
