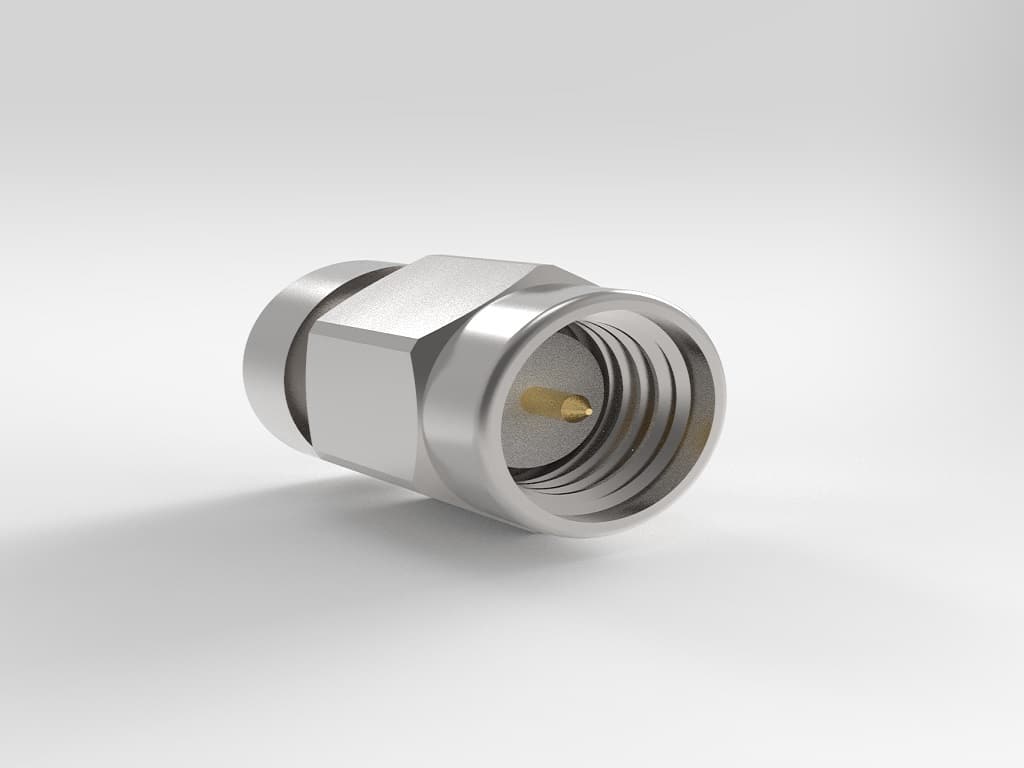

IB-141-SM

Type SMA, male (plug), straight, IB style connector for IB-141 type cables.

Stock Code: 47426

SMA, male, straight connector for InstaBend™ 141

Inventory Status
Distributor Qty Order

Specifications

Part NumberIB-141-SM
Stock Code47426
InterfaceSMA
Gender Male (plug)
OrientationStraight
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)27
VSWR Freq1.3
VSWR Frequency (GHz)27
Coupling NutHex
Inner Contact Attach
Outer Contact Attach
Body FinishGold Plate, MIL-DTL-45204
Pin FinishGold Plate, MIL-DTL-45204
Length (mm)11.8
Length (in)0.464
Width (mm)7.77
Width (in)0.306
Weight (g)41.7
Weight (lb)0.0028

Compatible with

IB-141
