IB-086-SM | Times Microwave Systems

IB-086-SM

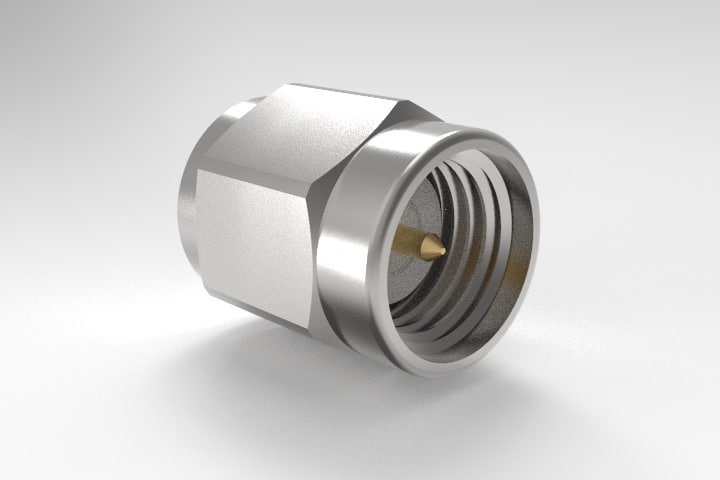

Type SMA, male (plug), straight, IB style connector for IB-086 type cables.

IB-086-SM

Stock Code: 47388

SMA, male, straight connector for InstaBend™ 086

Inventory Status

Distributor	Qty	Order

Specs
Compatible with
CAD Model
Documentation
Ask an Expert

Specifications

Part NumberIB-086-SM

Stock Code47388

InterfaceSMA

Gender Male (plug)

OrientationStraight

PIM Rating

Impedance (ohms)50

Max Frequency (GHz)27

VSWR Freq1.25

VSWR Frequency (GHz)27

Coupling NutHex

Inner Contact Attach

Outer Contact Attach

Body FinishGold Plate, MIL-DTL-45204

Pin FinishGold Plate, MIL-DTL-45204

Length (mm)9.91

Length (in)0.39

Width (mm)7.62

Width (in)0.3

Weight (g)2.6

Weight (lb)0.006
