IB-047-SMPF | Times Microwave Systems

IB-047-SMPF

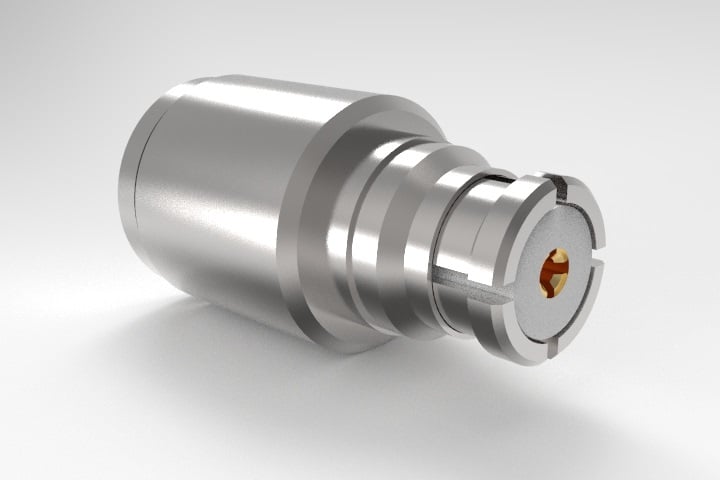

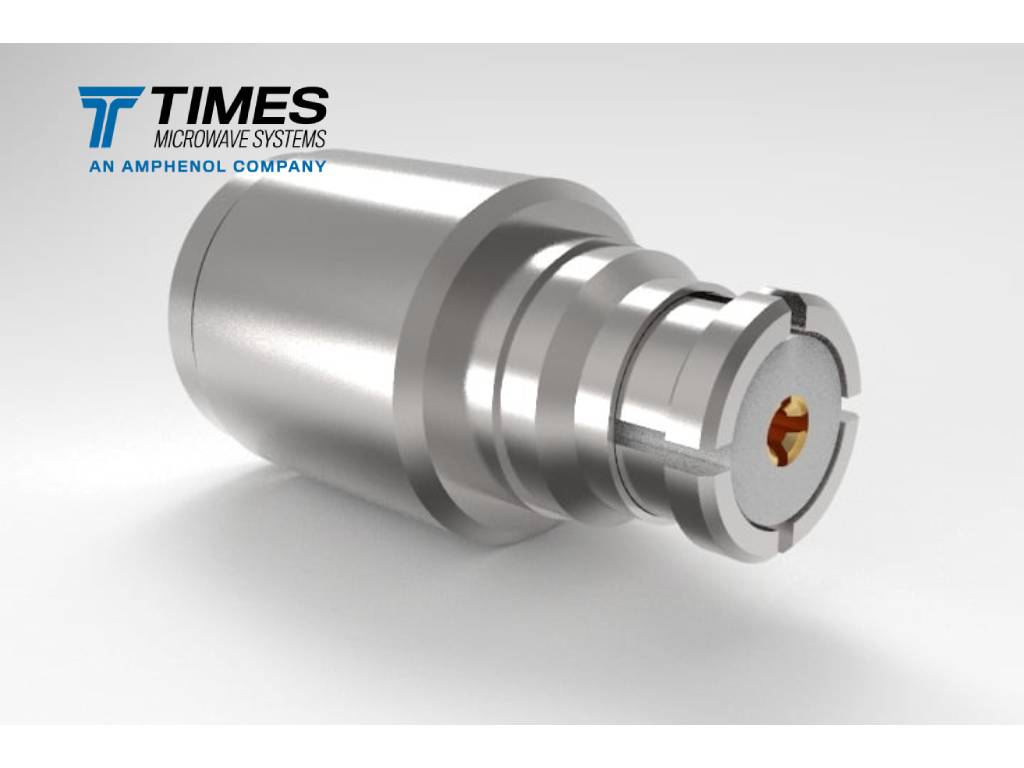

Type SMP, female (jack), straight, IB style connector for IB-047 type cables.

IB-047-SMPF

Stock Code: 47432

SMP, female, straight connector for InstaBend™ 047

Inventory Status

Distributor	Qty	Order

Specs
Compatible with
CAD Model
Documentation
Ask an Expert

Specifications

Part NumberIB-047-SMPF

Stock Code47432

InterfaceSMP

Gender Female (jack)

OrientationStraight

PIM Rating

Impedance (ohms)50

Max Frequency (GHz)40

VSWR Freq1.35

VSWR Frequency (GHz)12.4

Coupling NutN/A

Inner Contact Attach

Outer Contact Attach

Body FinishGold Plate, MIL-DTL-45204

Pin FinishGold Plate, MIL-DTL-45204

Length (mm)8.51

Length (in)0.335

Width (mm)4.95

Width (in)0.195

Weight (g)0.85

Weight (lb)0.002
