IB-047-KM

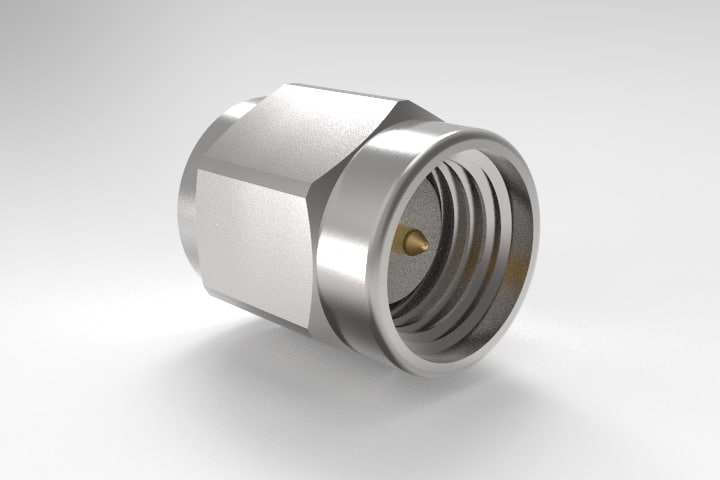

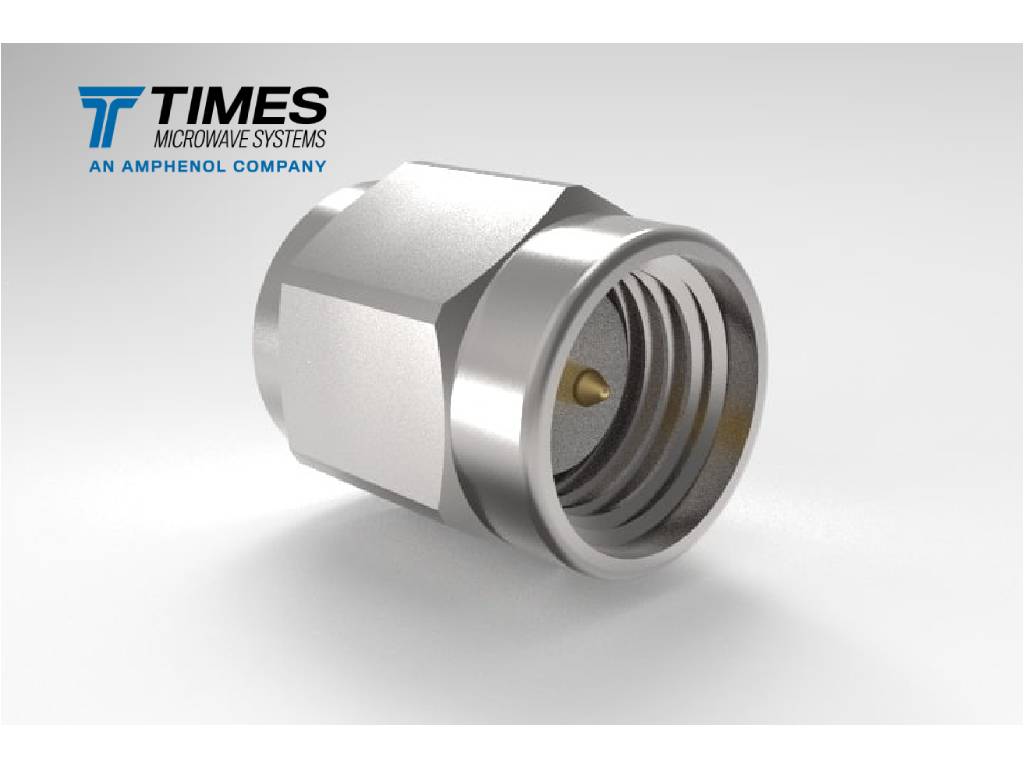

Type 2.92mm, male (plug), straight, IB style connector for IB-047 type cables.
Stock Code: 47425
2.92 mm, male, straight connector for InstaBend™ 047
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberIB-047-KM |
| Stock Code47425 |
| Interface2.92mm |
| Gender Male (plug) |
| Orientation Straight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz)40 |
| VSWR Freq1.25 |
| VSWR Frequency (GHz)27 |
| Coupling NutHex |
| Inner Contact Attach |
| Outer Contact Attach |
| Body FinishGold Plate, MIL-DTL-45204 |
| Pin FinishGold Plate, MIL-DTL-45204 |
| Length (mm)9.91 |
| Length (in)0.39 |
| Width (mm)7.62 |
| Width (in)0.3 |
| Weight (g)2.6 |
| Weight (lb)0.006 |
Compatible with
