High Power Connectors for Microwave Applications: High-Performance Solutions from Times Microwave Systems

Filter

Product Family

Gender

Orientation

Interface

Filter

Part #	Description	Interface	Gender	Orientation	Stock Code	Compatible With
TC-750T-HQM-CC	HPQD, male, straight, with cable clamp.	HPQD	Male (plug)	Straight	3190-7189

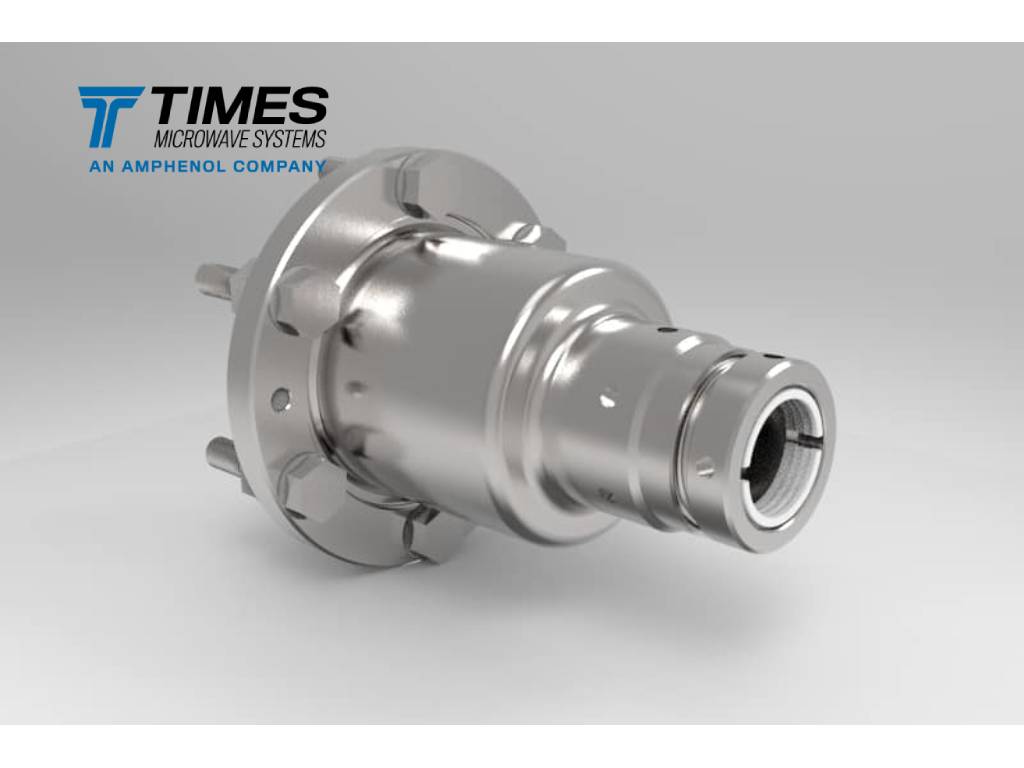

TC-1200-318EIA-SP	Type 3-1/8 EIA, flange, male (plug), straight, TC style connector...	3 1/8 EIA Flange	Male (plug)	Straight	3190-6570	HP-1200 HPL-1200

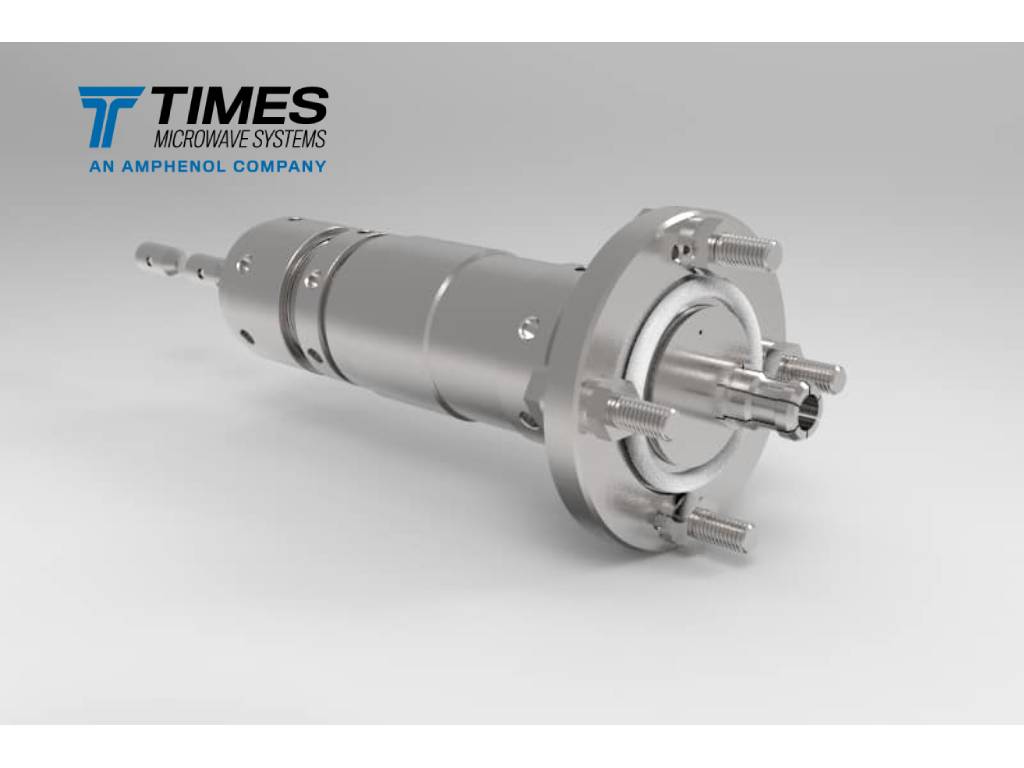

TC-HPL1200-158EIAC	Type 1-5/8 EIA, flange, male (plug), straight, TC style connector...	1-5/8 EIA Flange	Male (plug)	Straight	3190-3028	HP-1200 HPL-1200
EZ-1200-158EIA	Type 1-5/8 EIA, flange, male (plug), straight, EZ style connector...	1-5/8 EIA Flange	Male (plug)	Straight	3190-2724	HP-1200 HPL-1200

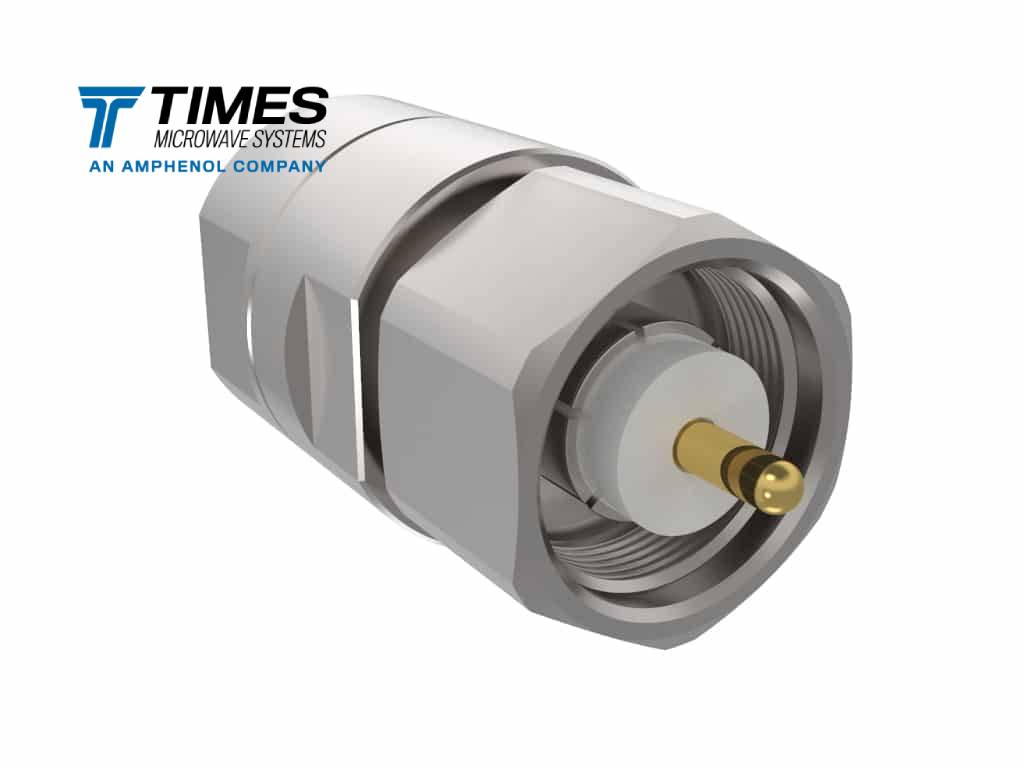

EZ-1200-LCMC-PL-2	Type LC, male (plug), straight, EZ style connector for LMR®-1200-LLPX®...	LC	Male (plug)	Straight	3190-6861	LMR-1200-LLPX

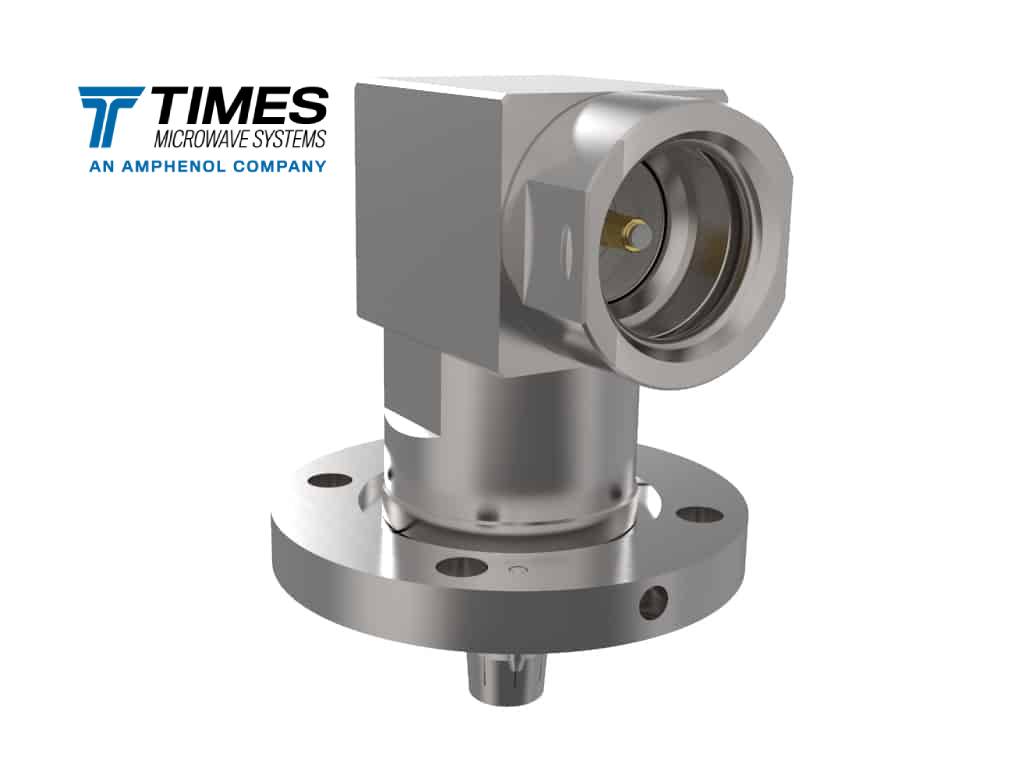

EZ-1200-158EIA-RA-PL-2	Type 1-5/8 EIA, flange, male (plug), right angle, EZ style...	1-5/8 EIA Flange	Male (plug)	Right Angle	3190-6200	LMR-1200-LLPX

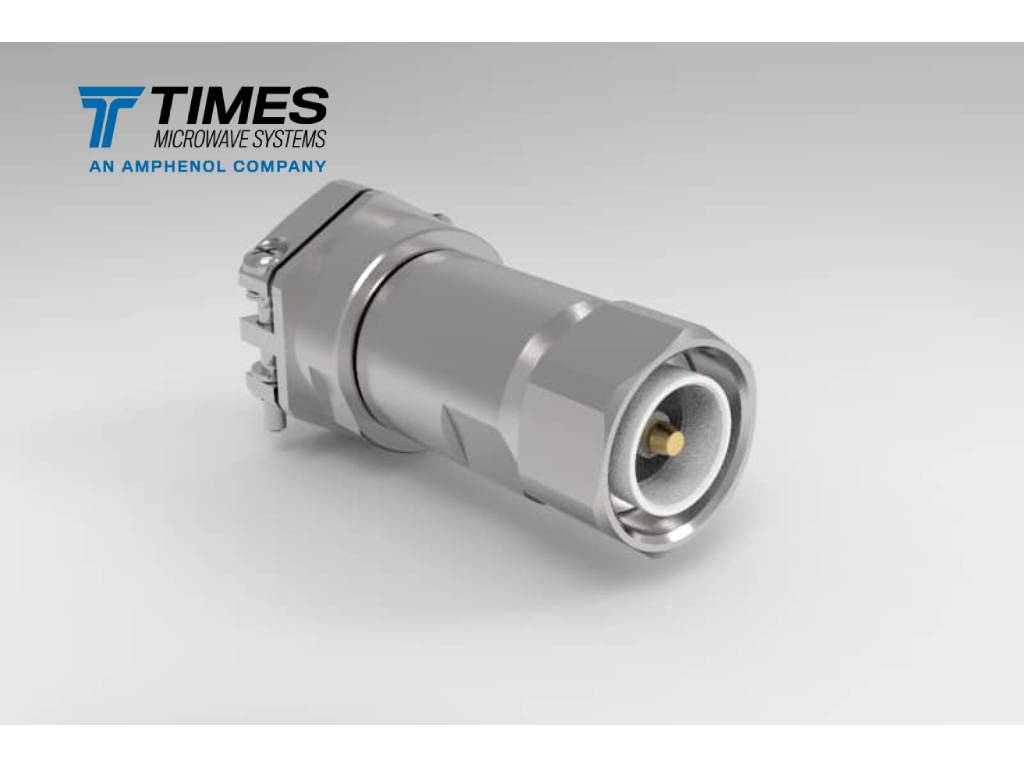

TC-HPL218-716M-CL	Type 7/16 DIN, male (plug), straight, TC style connector for...	7-16 DIN	Male (plug)	Straight	3190-6194	HPL-218
TC-218-318EIAC-RA-SP	Type 3-1/8 EIA, flange, male (plug), right angle, TC style...	3 1/8 EIA Flange	Male (plug)	Right Angle	3190-6581	HPL-218
TC-218-LCM-CL	Type LC, male (plug), straight, TC style connector for HP-218...	LC	Male (plug)	Straight	3190-2482	HP-218

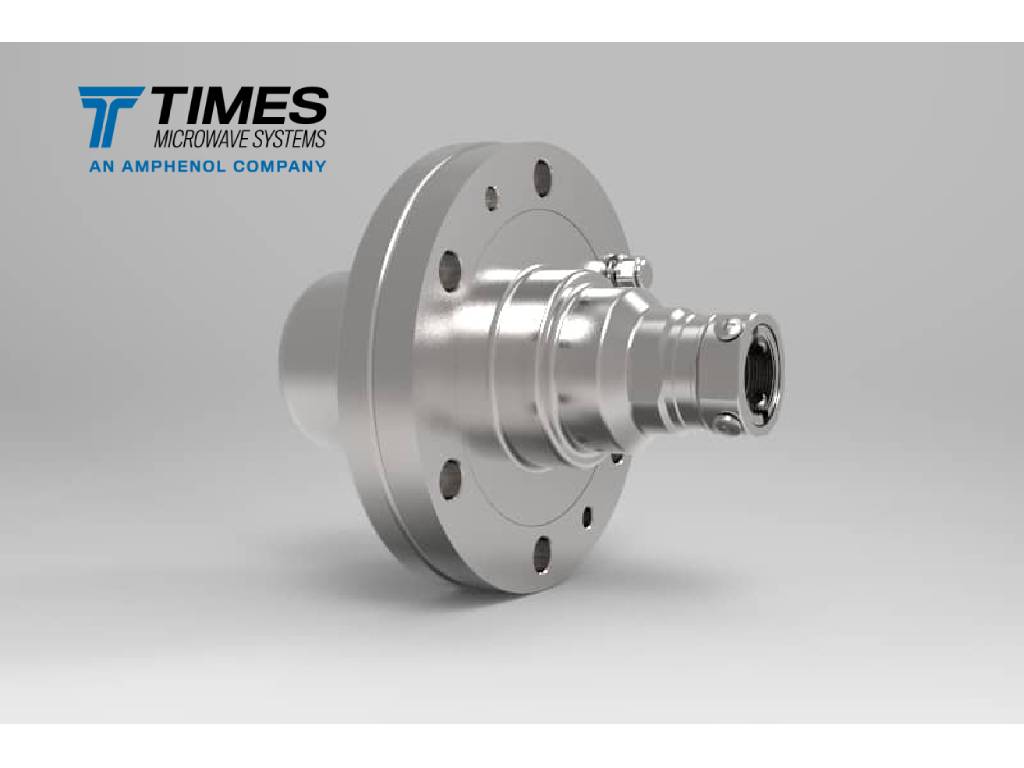

TC-218-318EIAC-SP	Type 3-1/8 EIA, flange, male (plug), straight, TC style connector...	3 1/8 EIA Flange	Male (plug)	Straight	3190-6767	HP-218 HPL-218

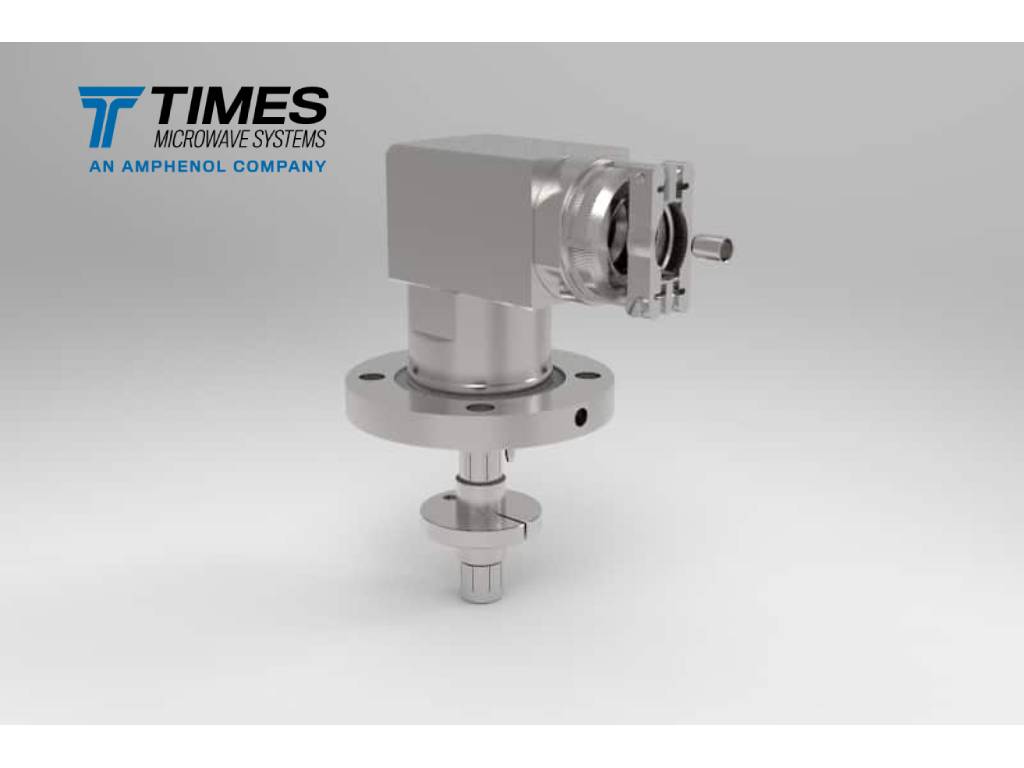

TC-218-158EIA-RA-CL	Type 1-5/8 EIA, flange, male (plug), right angle, TC style...	1-5/8 EIA Flange	Male (plug)	Right Angle	3190-6415	HP-218 HPL-218

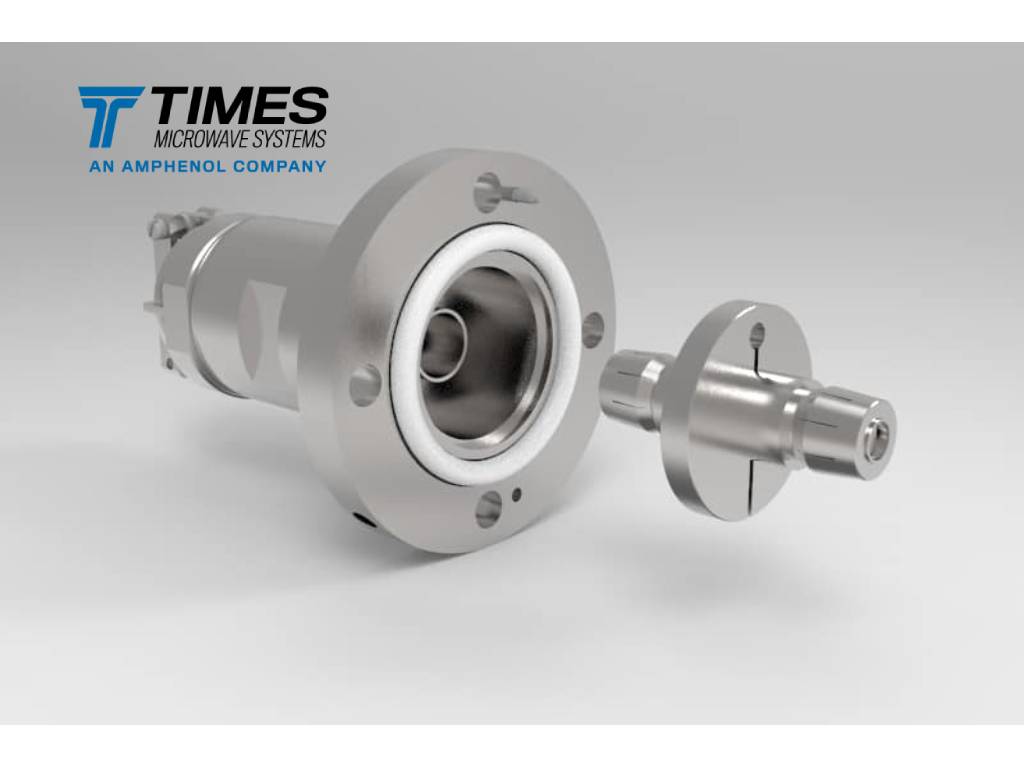

TC-218-158EIA-CL	Type 1-5/8 EIA, flange, male (plug), straight, TC style connector...	1-5/8 EIA Flange	Male (plug)	Straight	3190-2473	HP-218 HPL-218

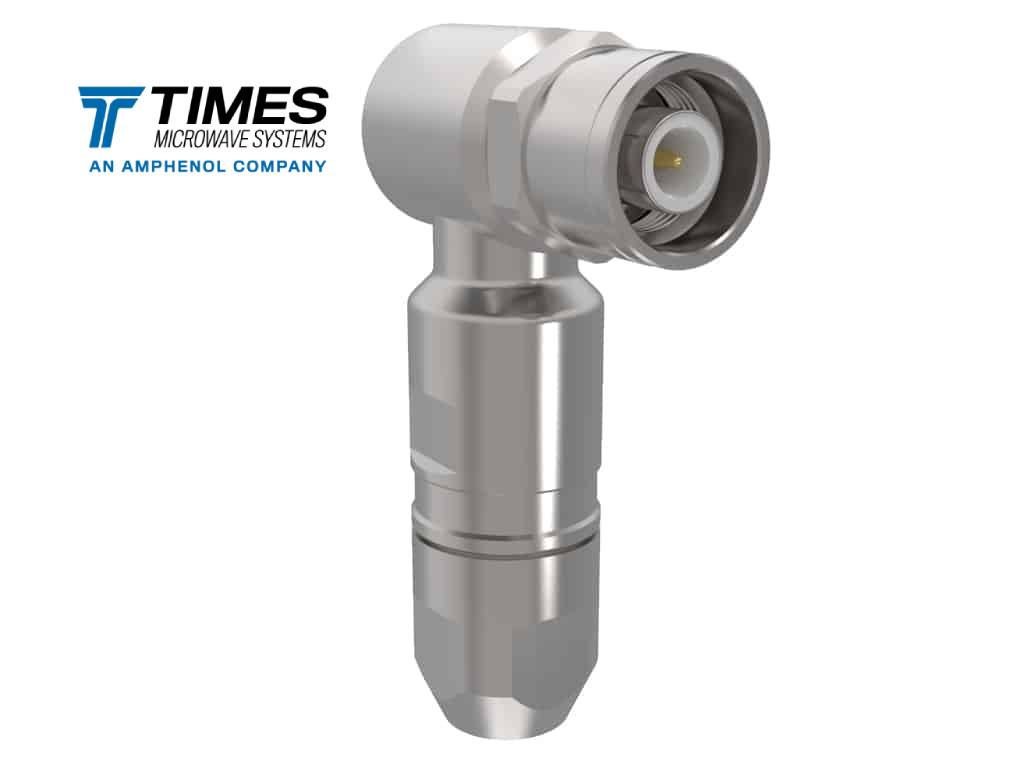

TC-600T-SCM-RA-CC	Type SC, male (plug), right angle, TC style connector for...	SC	Male (plug)	Right Angle	3190-6850	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

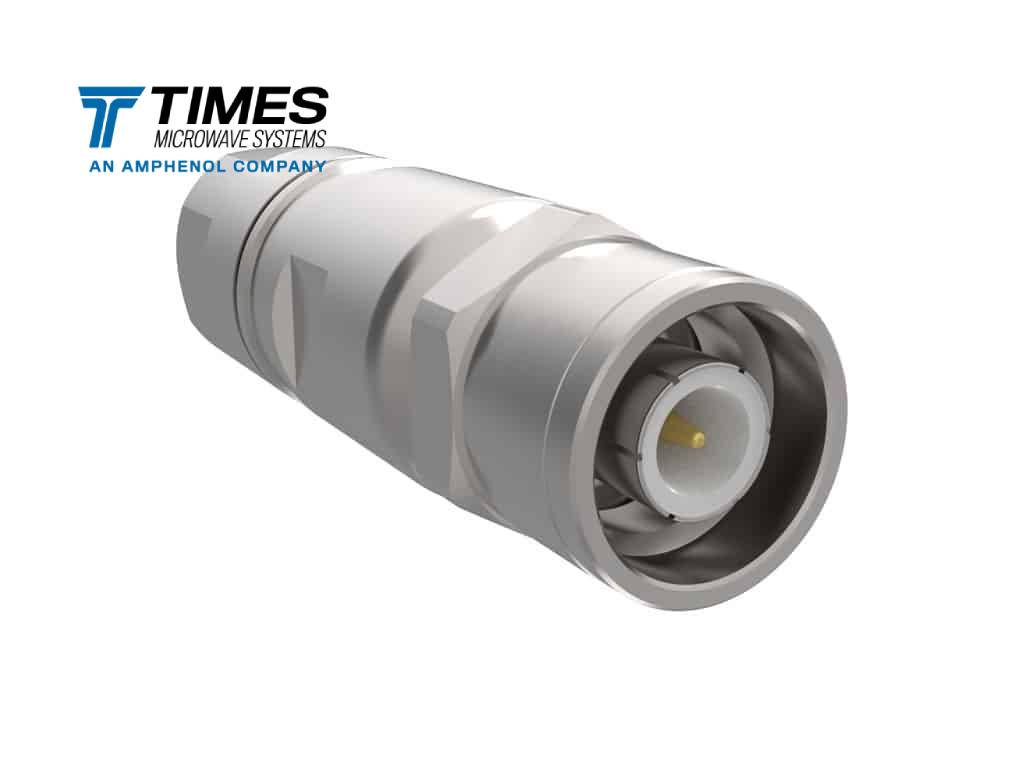

TC-600T-SCM-CC	Type SC, male (plug), straight, TC style connector for HP-600A,...	SC	Male (plug)	Straight	3190-6794	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

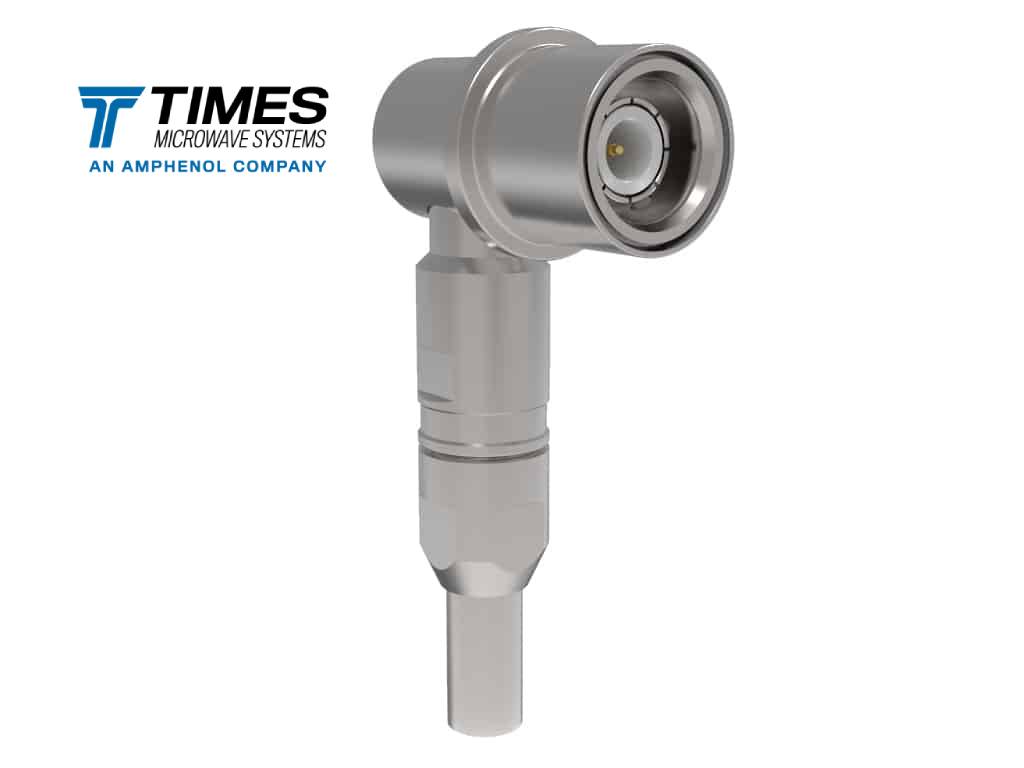

TC-600T-MQM-RA-CC	Type MPQD, male (plug), right angle, TC style connector for...	MPQD	Male (plug)	Right Angle	3190-6636	LMR-600-LLPX SFT-600 SFT-600-BCCAL

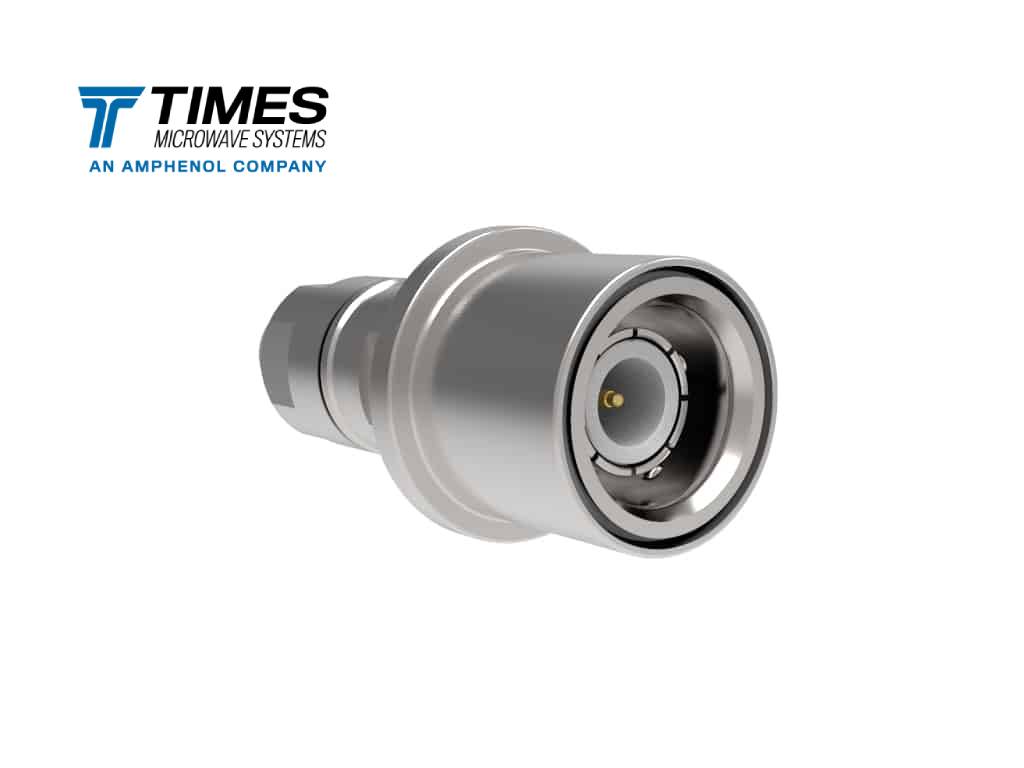

TC-600T-MQM-CC	Type MPQD, male (plug), straight, TC style connector for SFT-600...	MPQD	Male (plug)	Straight	3190-6637	LMR-600-LLPX SFT-600 SFT-600-BCCAL

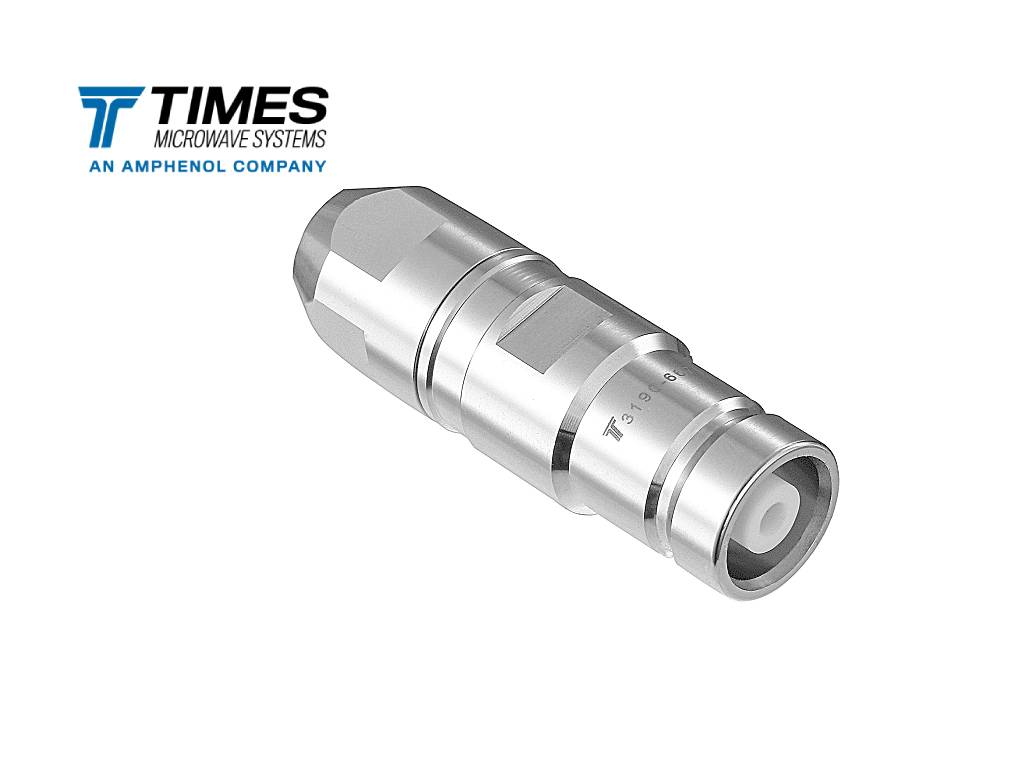

TC-600T-MQF-CC	Type MPQD, female (jack), straight, TC style connector for SFT-600...	MPQD	Female (jack)	Straight	3190-6670	LMR-600-LLPX SFT-600 SFT-600-BCCAL
TC-600T-LCM-RA-CC	Type LC, male (plug), right angle, TC style connector for...	LC	Male (plug)	Right Angle	3190-6729	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

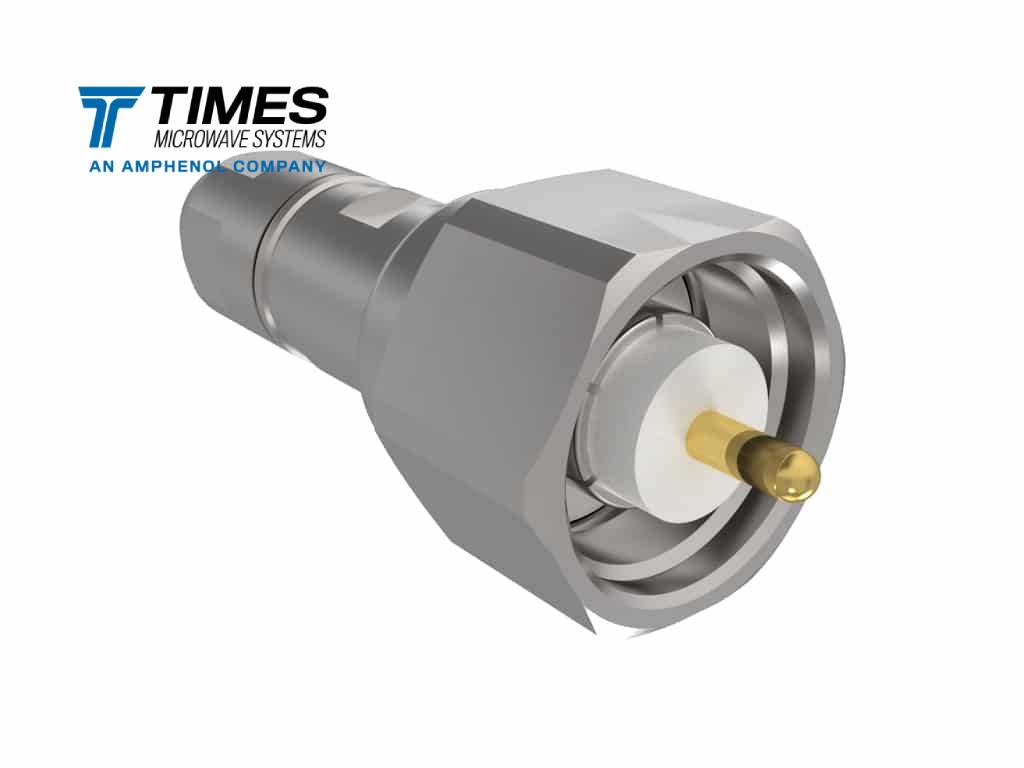

TC-600T-LCM-CC	Type LC, male (plug), straight, TC style connector for HP-600A,...	LC	Male (plug)	Straight	3190-6728	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

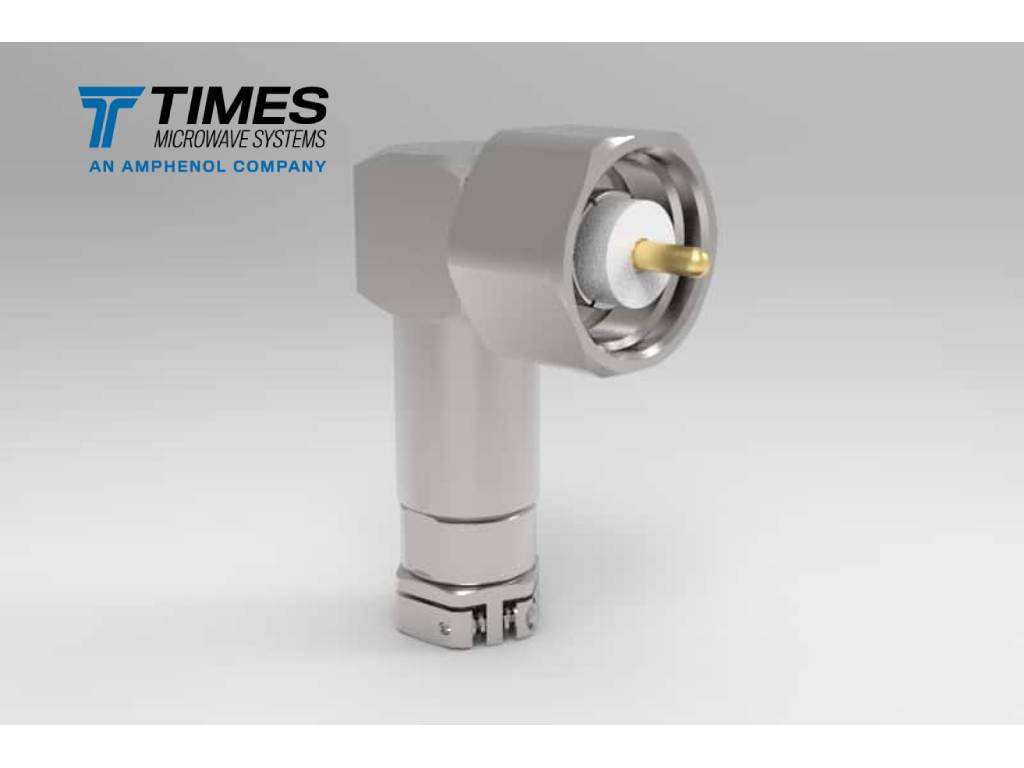

TC-600T-LCM-RA-CL	Type LC, male (plug), right angle, TC style connector for...	LC	Male (plug)	Right Angle	3190-2562	LMR-600-LLPX SFT-600 SFT-600-BCCAL

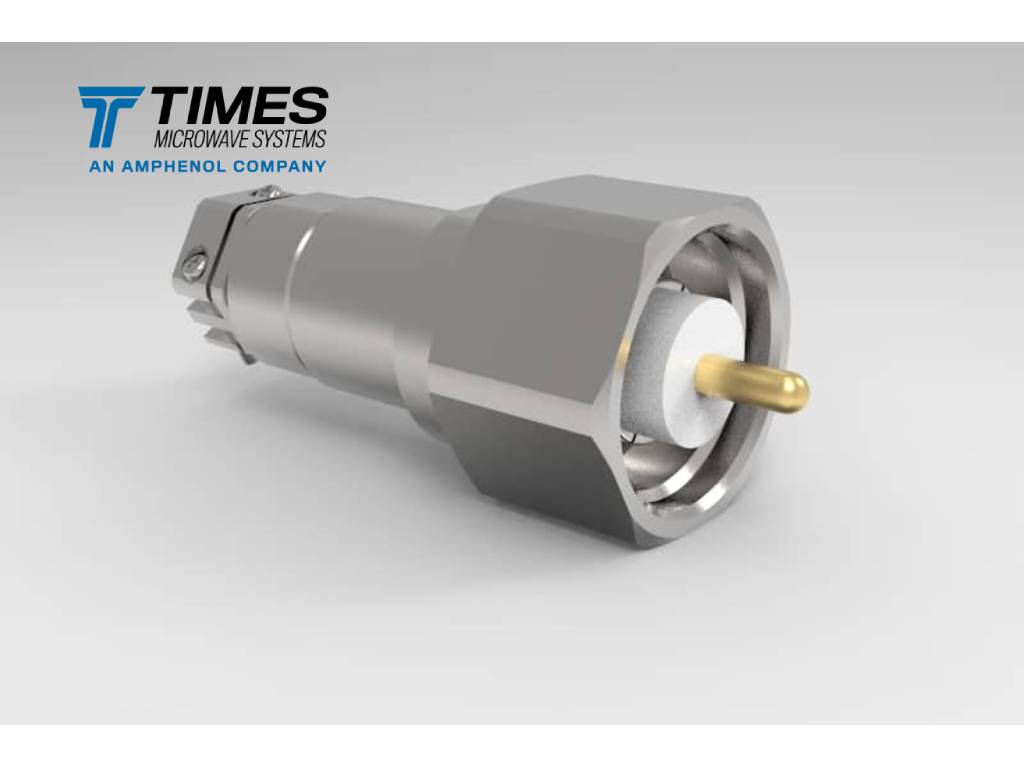

TC-600T-LCM-CL	Type LC, male (plug), straight, TC style connector for SFT-600...	LC	Male (plug)	Straight	3190-2566	LMR-600-LLPX SFT-600 SFT-600-BCCAL

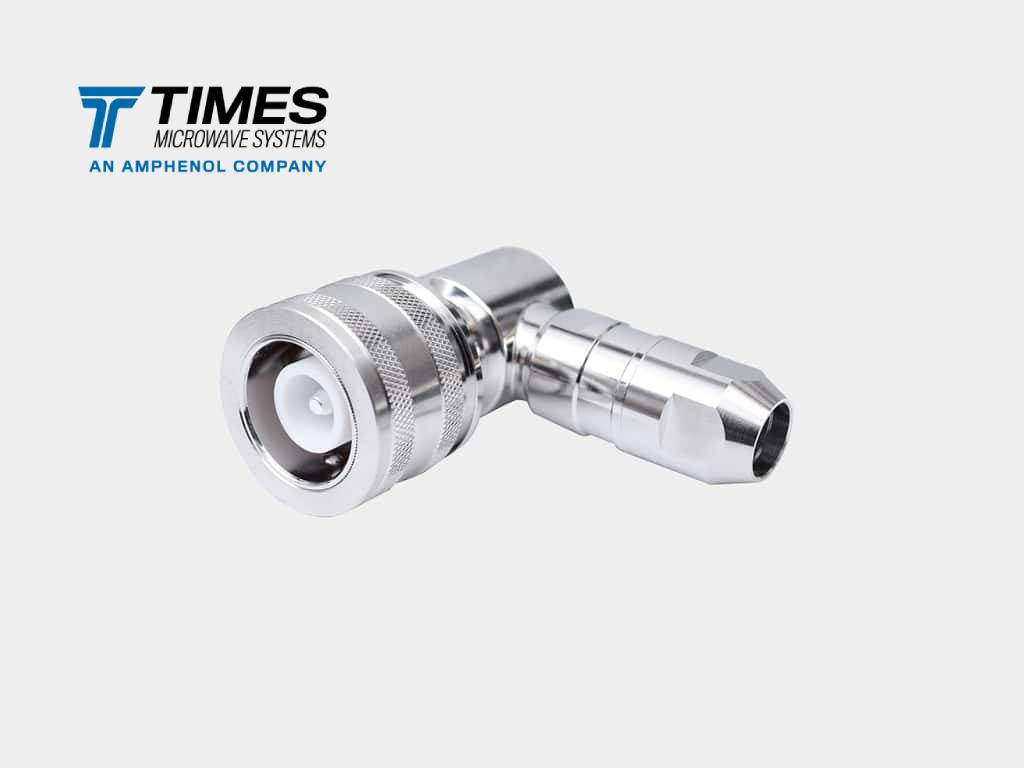

TC-600T-HQM-RA-CC	Type HPQD, male (plug), right angle, TC style connector for...	HPQD	Male (plug)	Right Angle	3190-6419	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

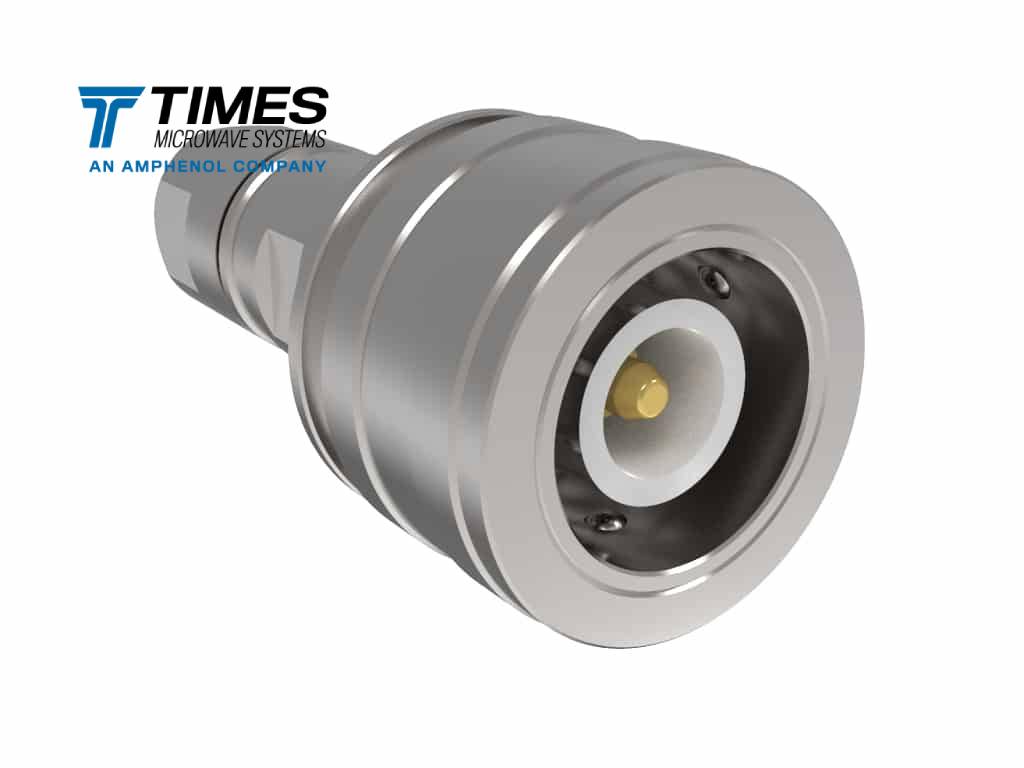

TC-600T-HQM-CC	Type HPQD, male (plug), straight, TC style connector for HP-600A,...	HPQD	Male (plug)	Straight	3190-6420	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

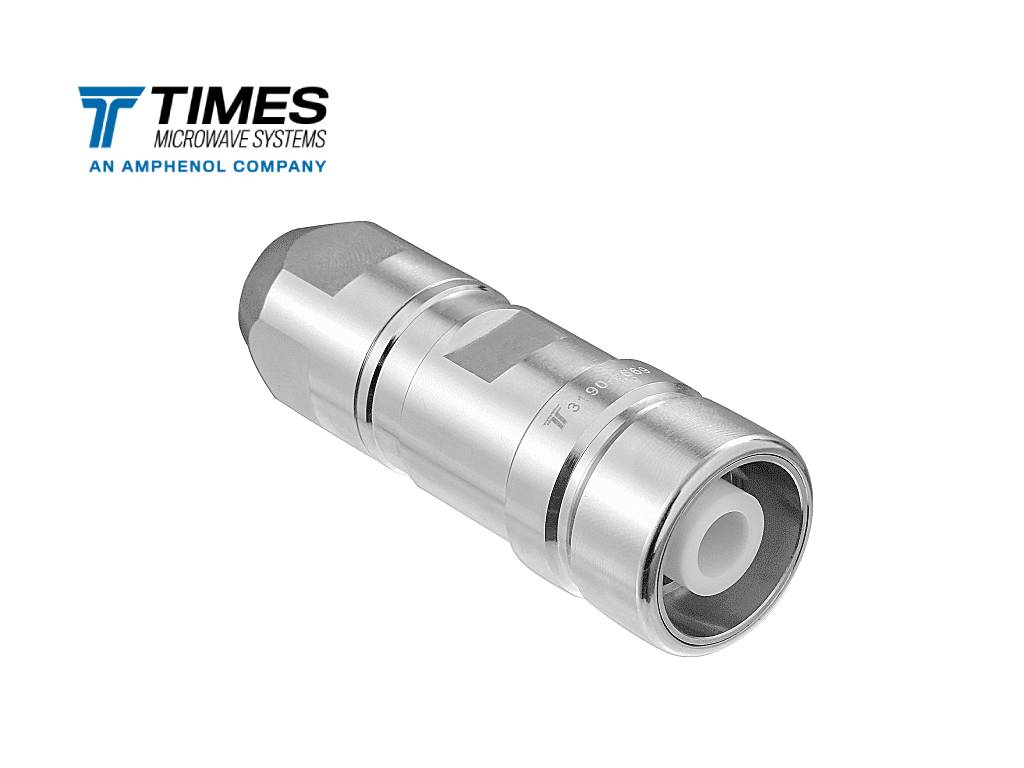

TC-600T-HQF-CC	Type HPQD, female (jack), straight, TC style connector for SFT-600...	HPQD	Female (jack)	Straight	3190-6669	LMR-600-LLPX SFT-600 SFT-600-BCCAL

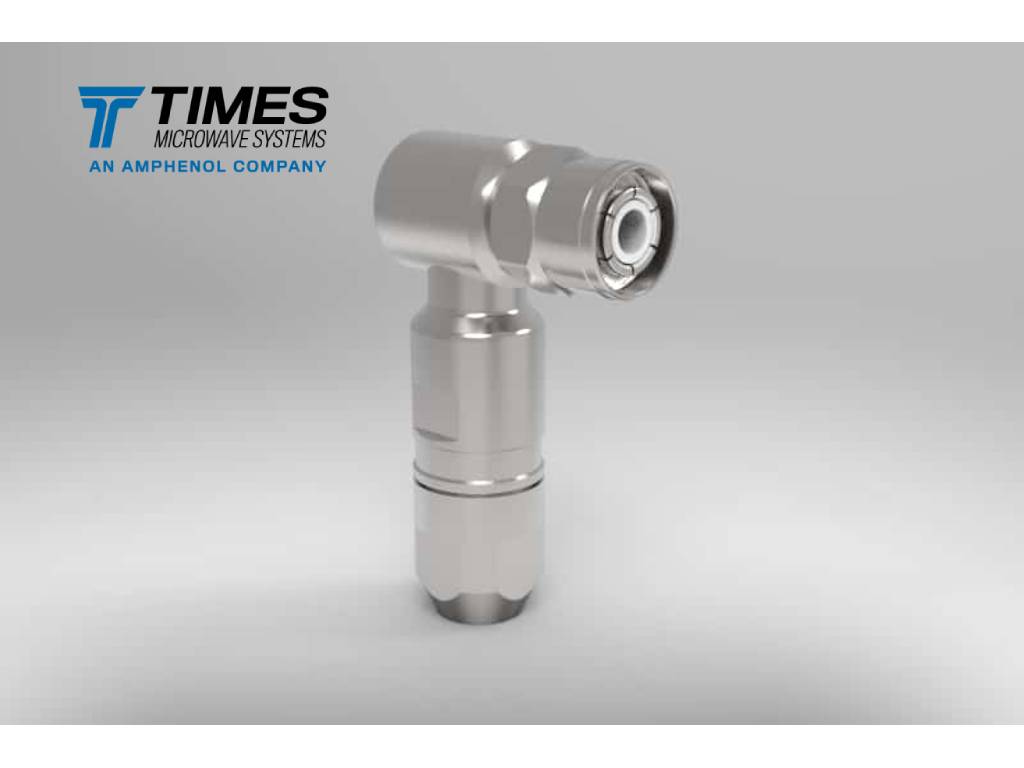

TC-600T-HNM-RA-CC	Type HN, male (plug), right angle, TC style connector for...	HN	Male (plug)	Right Angle	3190-6726	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

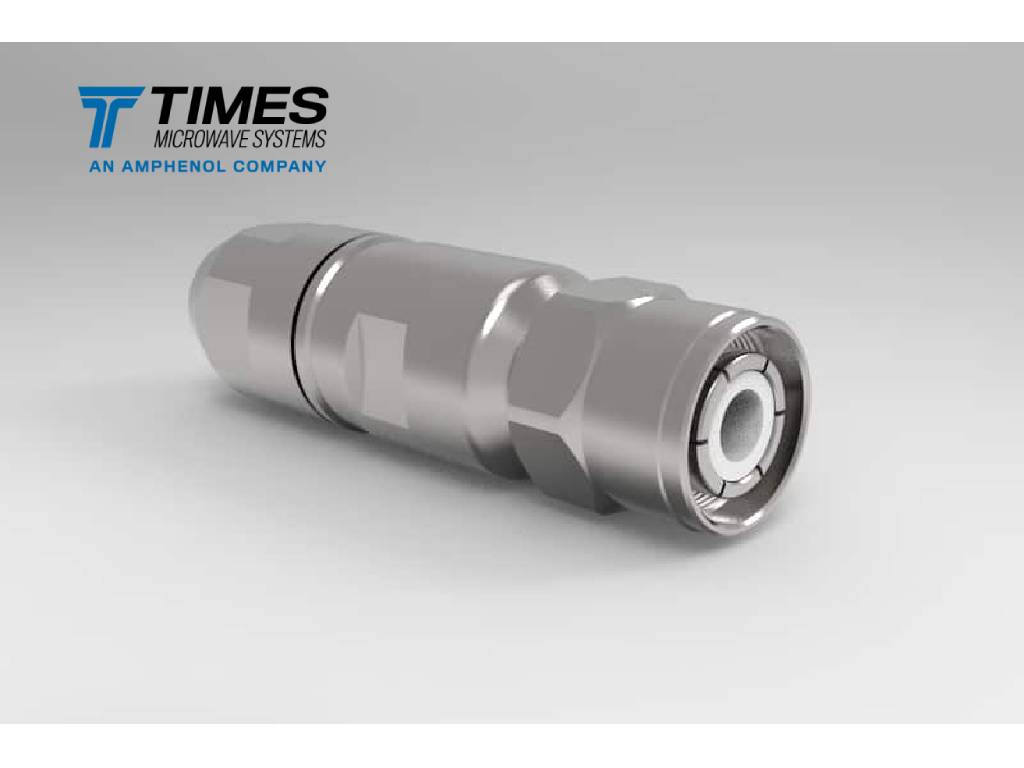

TC-600T-HNM-CC	Type HN, male (plug), straight, TC style connector for HP-600A,...	HN	Male (plug)	Straight	3190-6725	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

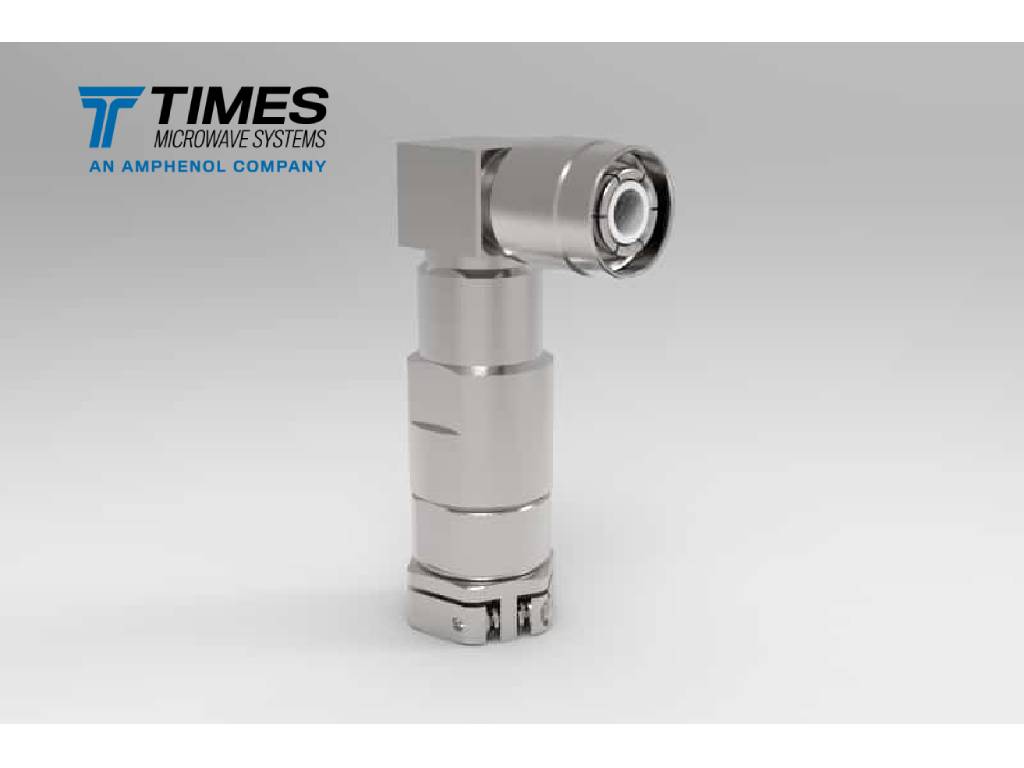

TC-600T-HNM-RA-CL	Type HN, male (plug), right angle, TC style connector for...	HN	Male (plug)	Right Angle	3190-2560	LMR-600-LLPX SFT-600 SFT-600-BCCAL
TC-600T-HNMC-CL	Type HN, male (plug), straight, TC style connector for SFT-600...	HN	Male (plug)	Straight	3190-2564	LMR-600-LLPX SFT-600 SFT-600-BCCAL

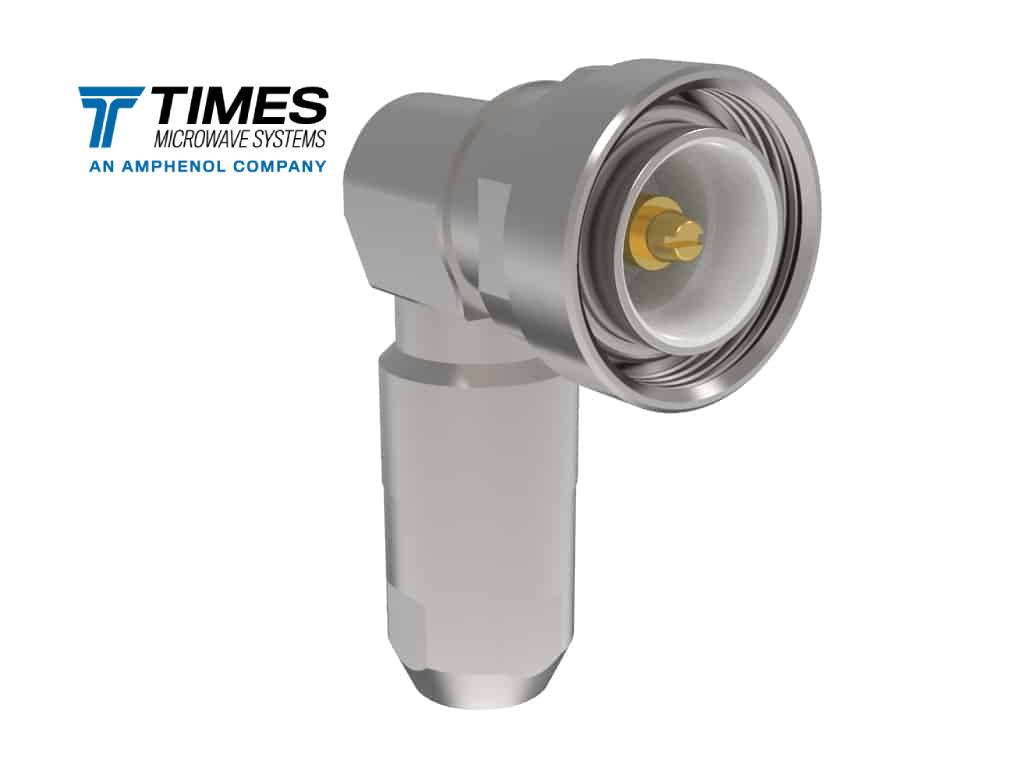

TC-600T-716M-RA-CC	Type 7/16 DIN, male (plug), right angle, TC style connector...	7-16 DIN	Male (plug)	Right Angle	3190-6622	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

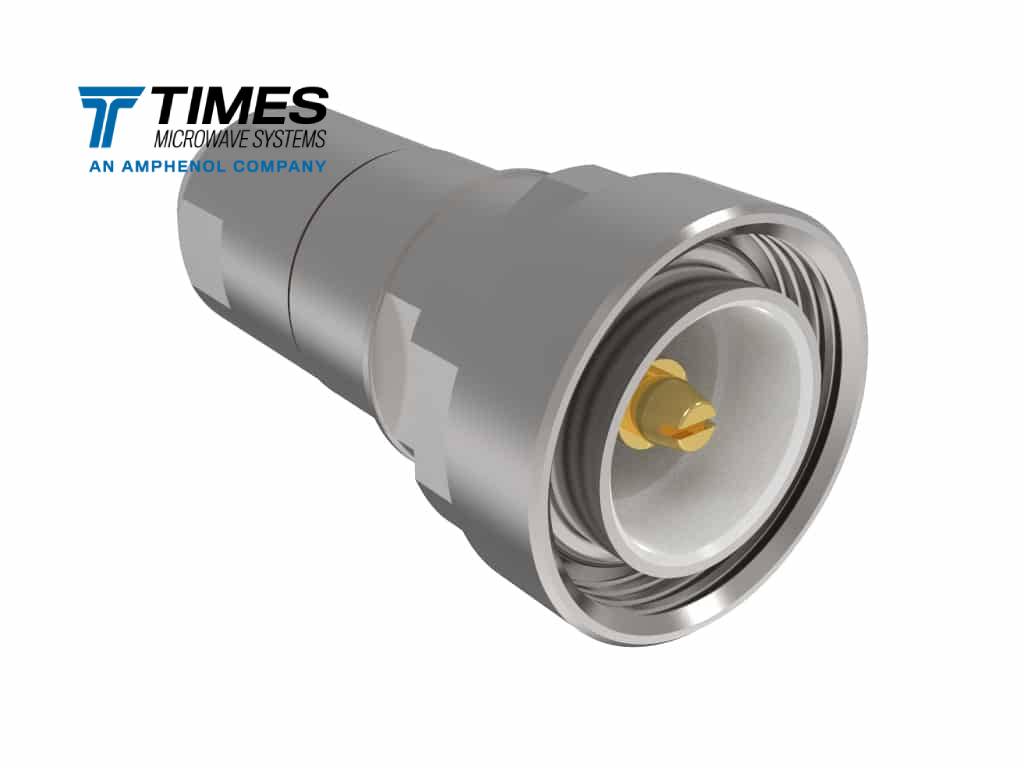

TC-600T-716M-CC	Type 7/16 DIN, male (plug), straight, TC style connector for...	7-16 DIN	Male (plug)	Straight	3190-6623	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL
TC-600T-78EIA-RA-CL	Type 7/8 EIA, flange, male (plug), right angle, TC style...	7-8 EIA Flange	Flange	Right Angle	3190-6013	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

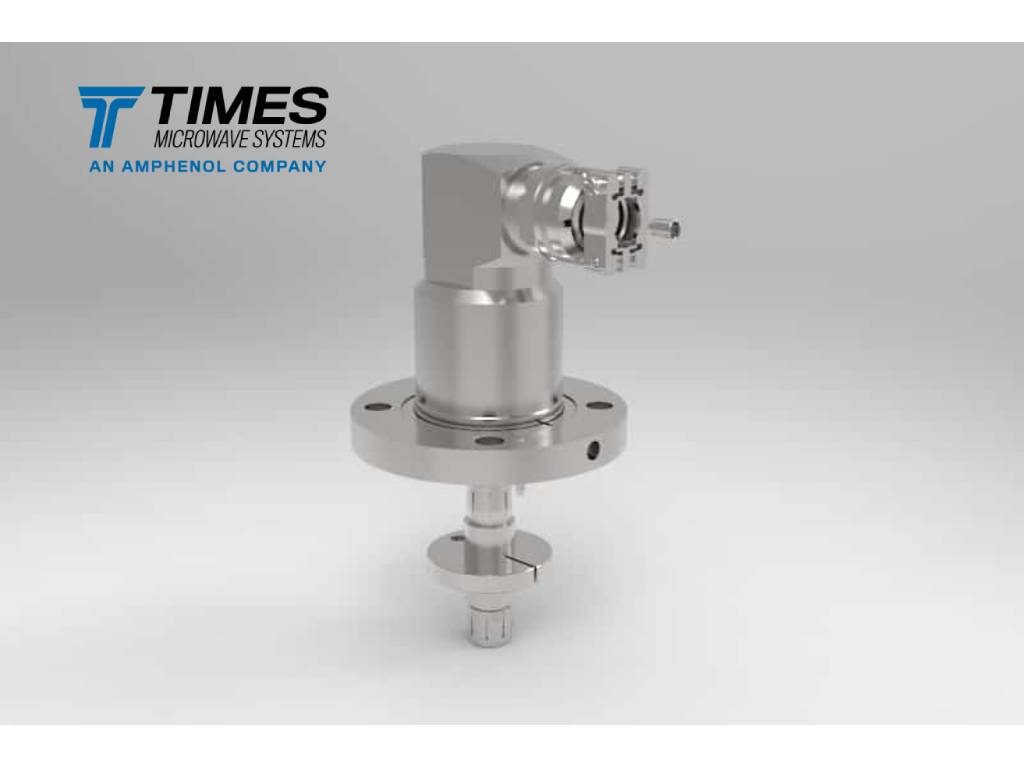

TC-600T-158EIA-RA-CL	Type 1-5/8 EIA, flange, male (plug), right angle, TC style...	1-5/8 EIA Flange	Male (plug)	Right Angle	3190-6559	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL
EZ-600T-158EIA-CL	Type 1-5/8 EIA, flange, male (plug), reverse polarity, EZ style...	1-5/8 EIA Flange	Male (plug)	Reverse polarity	3190-2485	HP-600A HPL-600 LMR-600-LLPX SFT-600 SFT-600-BCCAL

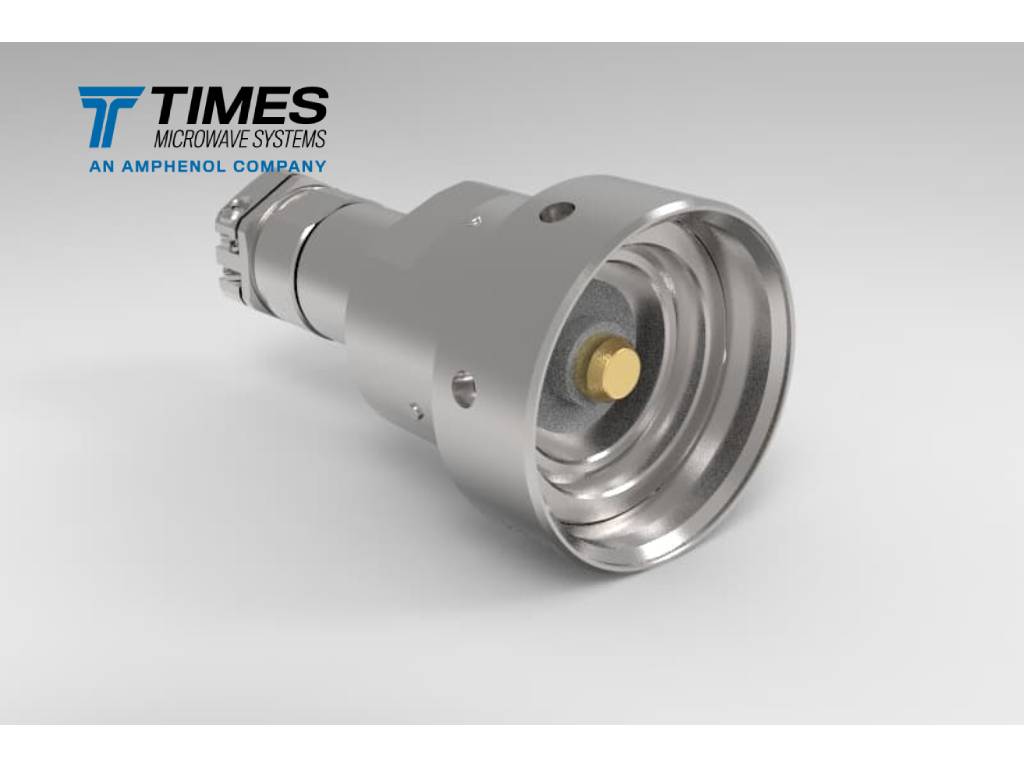

TC-600T-1330M-CL	Type 13-30, male (plug), straight, TC style connector for LMR®-600-LLPX®...	13-30	Male (plug)	Straight	3190-6333	LMR-600-LLPX SFT-600 SFT-600-BCCAL

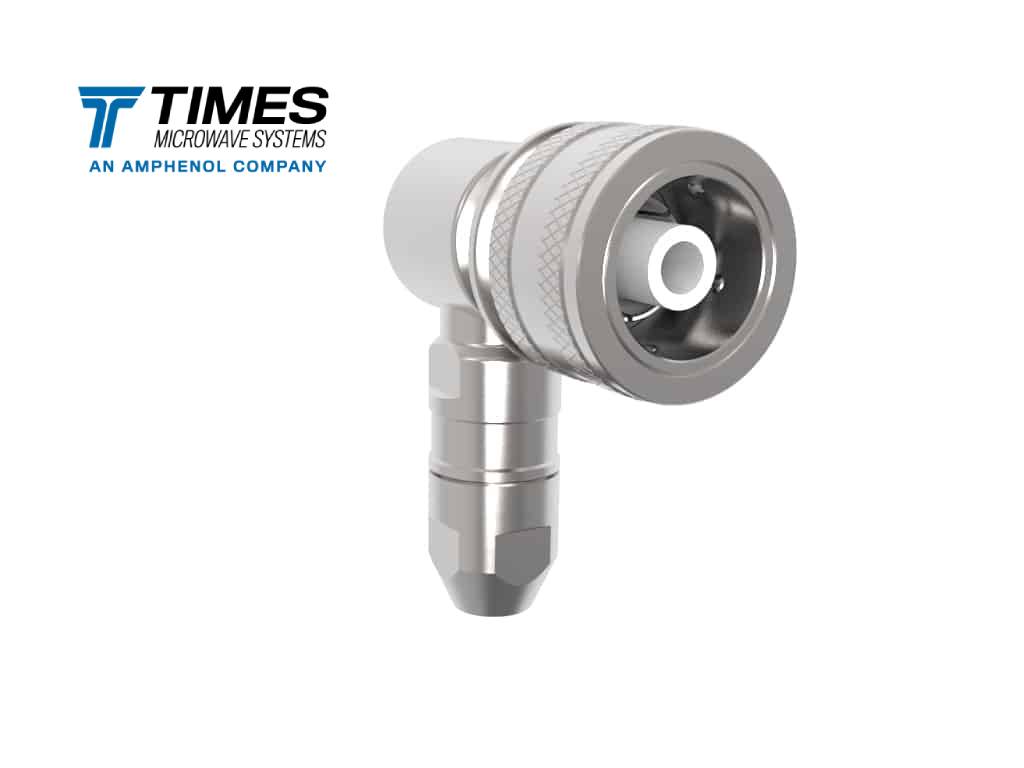

TC-500T-HQM-RP-RA-CC	Type HPQD, male (plug), reverse polarity, TC style connector for...	HPQD	Male (plug)	Reverse polarity	3190-6632	SFT-500

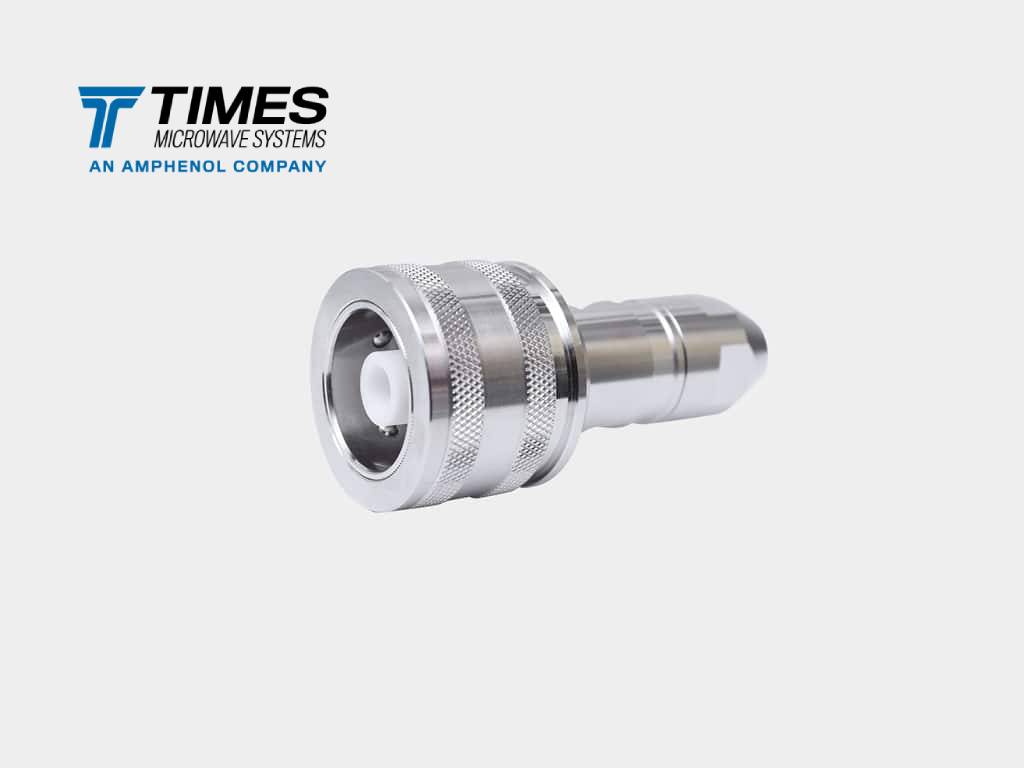

TC-500T-HQM-RP-CC	Type HPQD, male (plug), reverse polarity, TC style connector for...	HPQD	Male (plug)	Reverse polarity	3190-6633	SFT-500
TC-500T-HQM-RA-CC	Type HPQD, male (plug), right angle, TC style connector for...	HPQD	Male (plug)	Right Angle	3190-6631	SFT-500

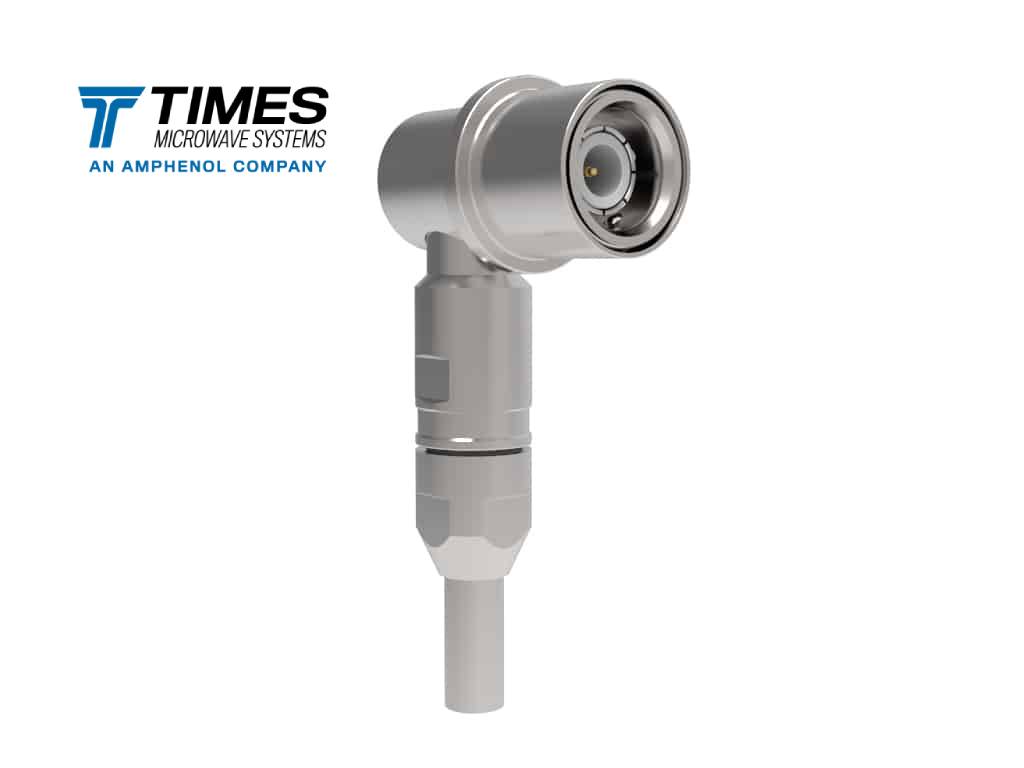

TC-500T-MQM-RA-CC	Type MPQD, male (plug), right angle, TC style connector for...	MPQD	Male (plug)	Right Angle	3190-6634	SFT-500

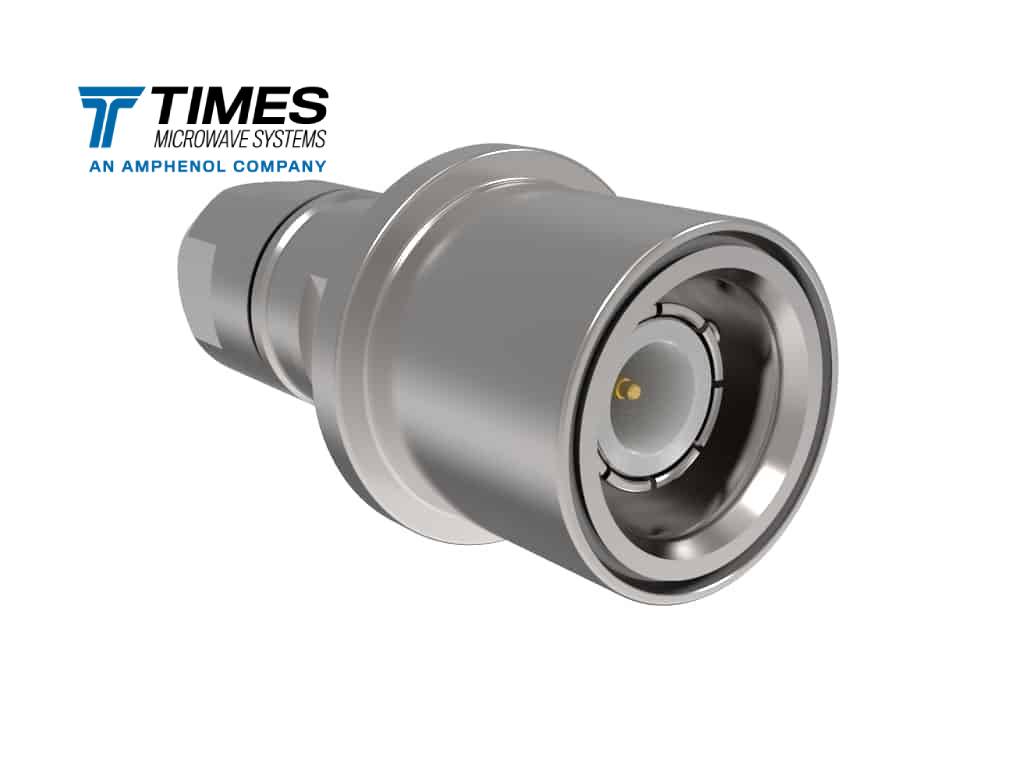

TC-500T-MQM-CC	Type MPQD, male (plug), straight, TC style connector for SFT-500...	MPQD	Male (plug)	Straight	3190-6635	SFT-500

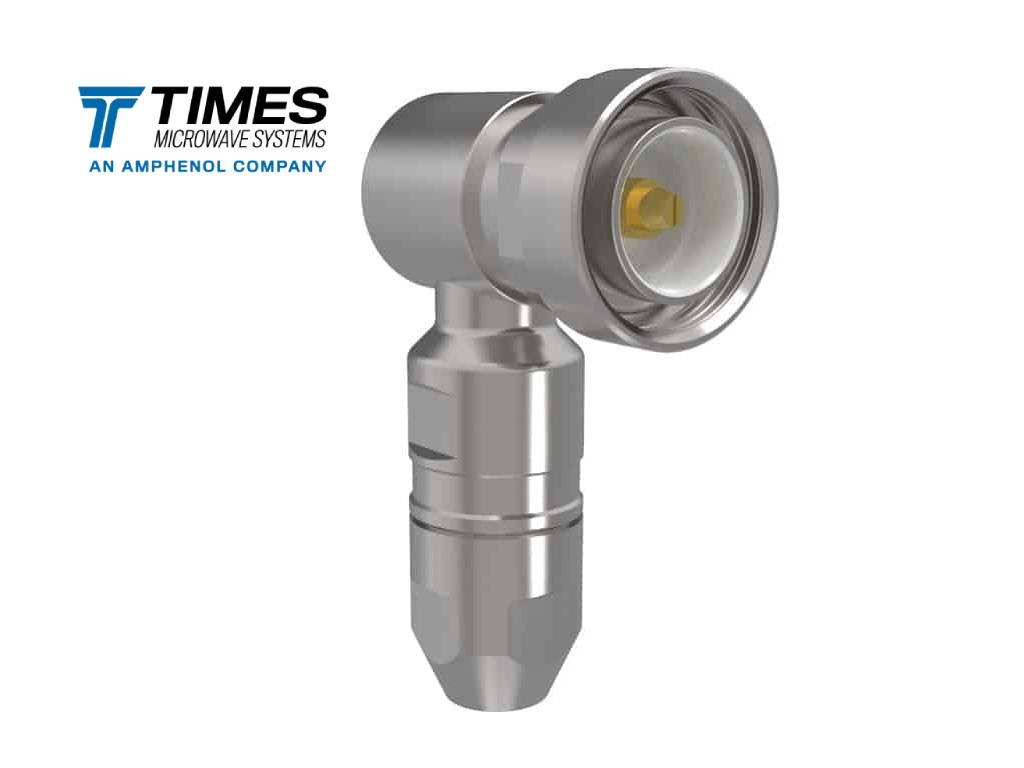

TC-500T-716M-RA-CC	Type 7/16 DIN, male (plug), right angle, TC style connector...	7-16 DIN	Male (plug)	Right Angle	3190-6788	SFT-500

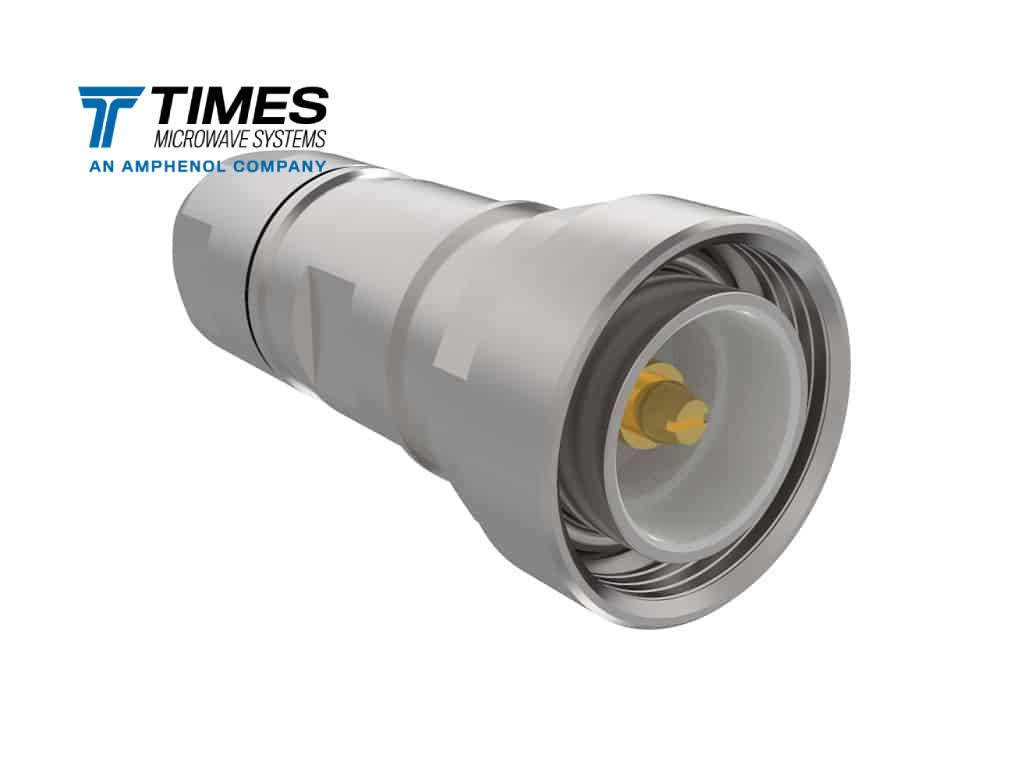

TC-500T-716M-CC	Type 7/16 DIN, male (plug), straight, TC style connector for...	7-16 DIN	Male (plug)	Straight	3190-6787	SFT-500

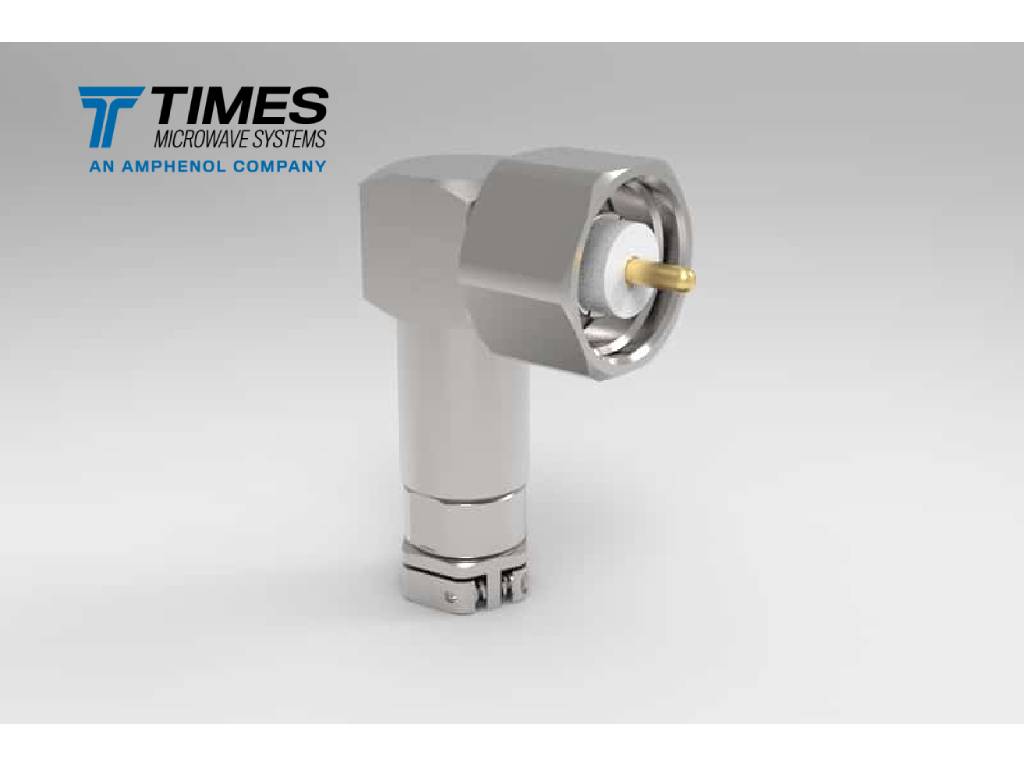

TC-226-LCM-RA-CL	Type LC, male (plug), right angle, TC style connector for...	LC	Male (plug)	Right Angle	3190-2666	HP-226 HPL-226 SFT-226

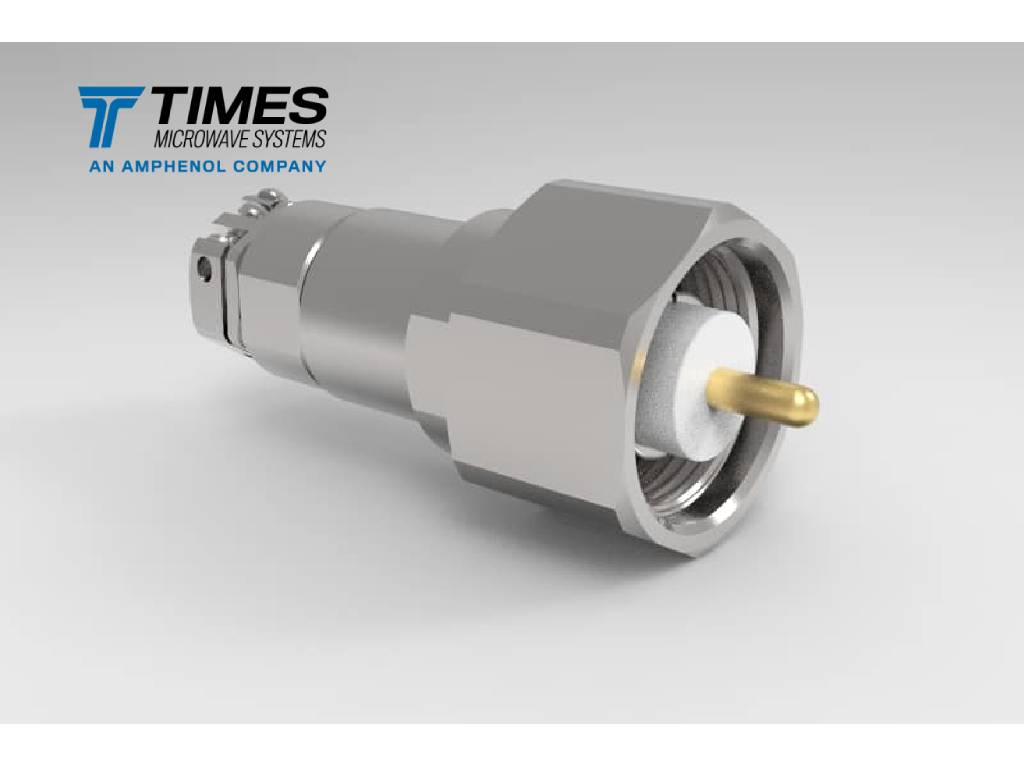

TC-226-LCM-CL	Type LC, male (plug), straight, TC style connector for HPL-600,...	LC	Male (plug)	Straight	3190-2665	HP-226 HPL-226 HPL-600 SFT-226

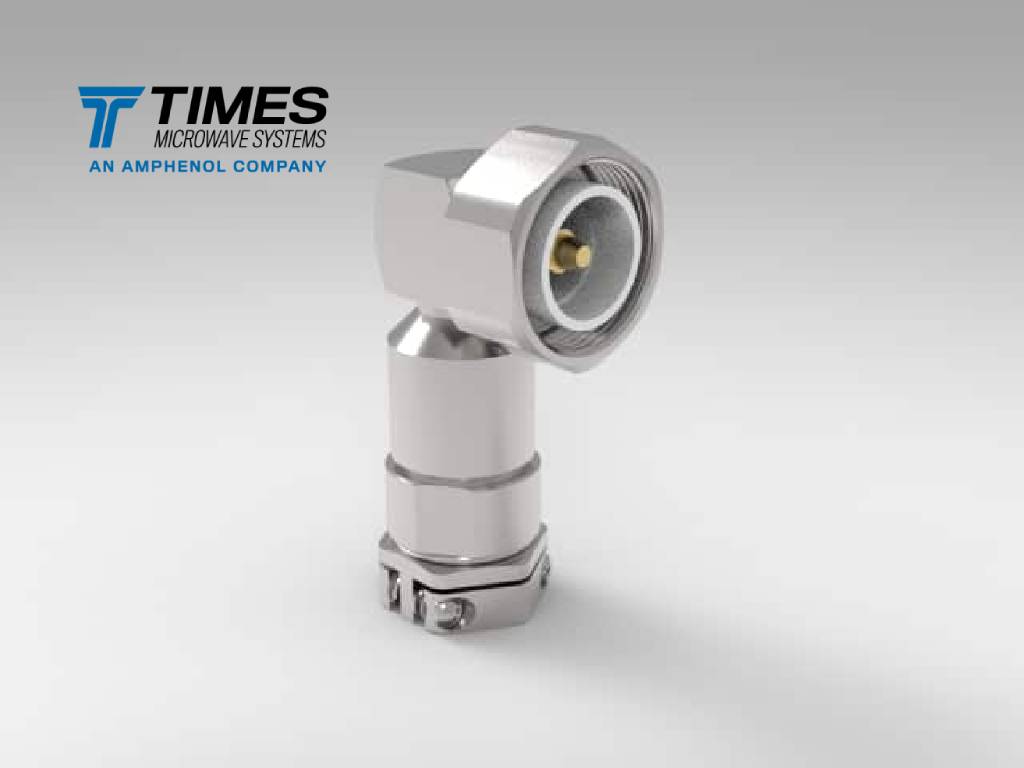

TC-226-716M-RA-CL	Type 7/16 DIN, male (plug), right angle, TC style connector...	7-16 DIN	Male (plug)	Right Angle	3190-2625	HP-226 HPL-226 HPL-393 SFT-226

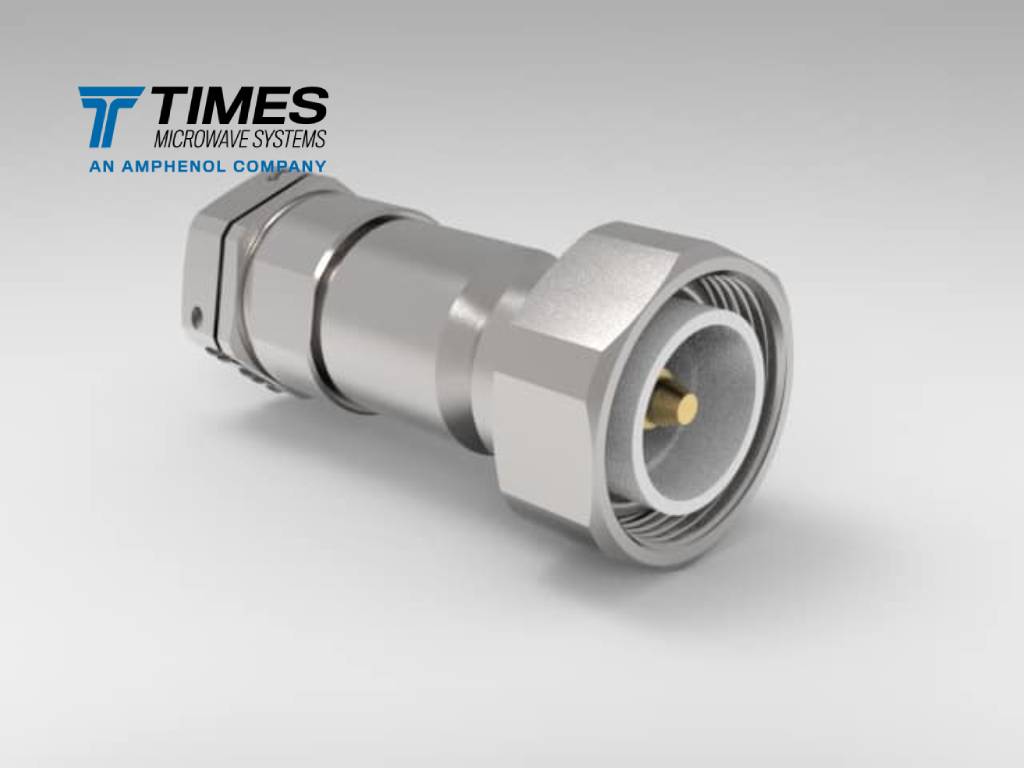

TC-226-716M-CL	Type 7/16 DIN, male (plug), straight, TC style connector for...	7-16 DIN	Male (plug)	Straight	3190-2624	HP-226 HPL-226 SFT-226

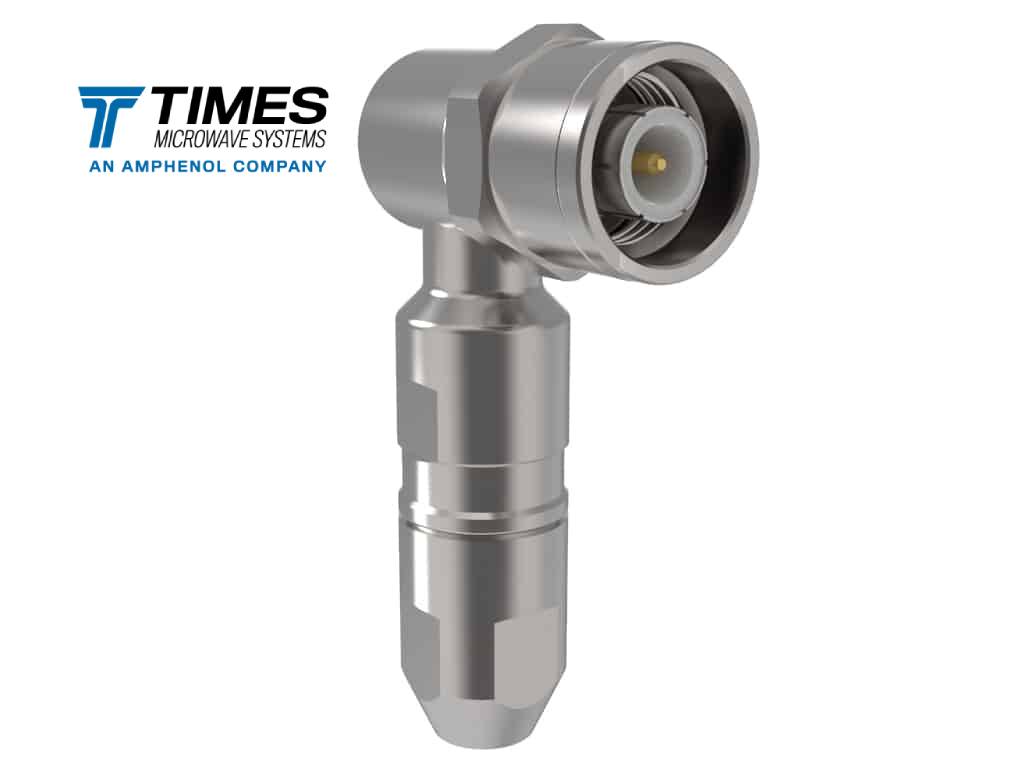

TC-214P-SCM-RA-CC	Type SC, male (plug), straight, TC style connector for HPL-393,...	SC	Male (plug)	Straight	3190-6870	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

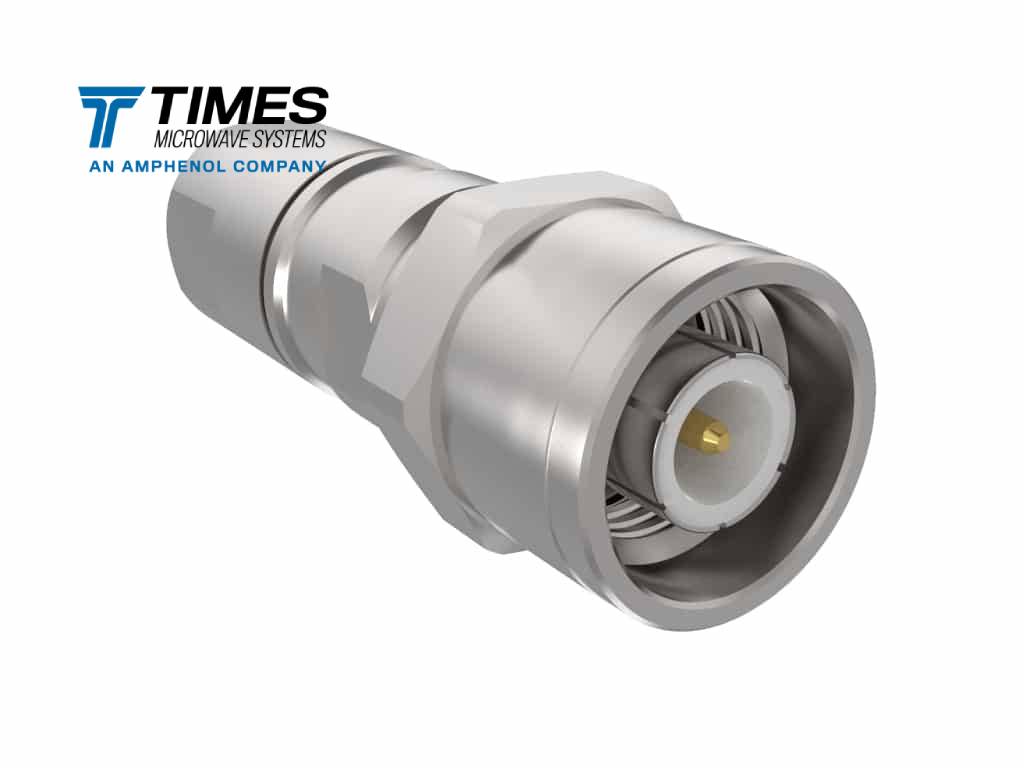

TC-214P-SCM-CC	Type SC, male (plug), straight, TC style connector for HPL-393,...	SC	Male (plug)	Straight	3190-6869	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

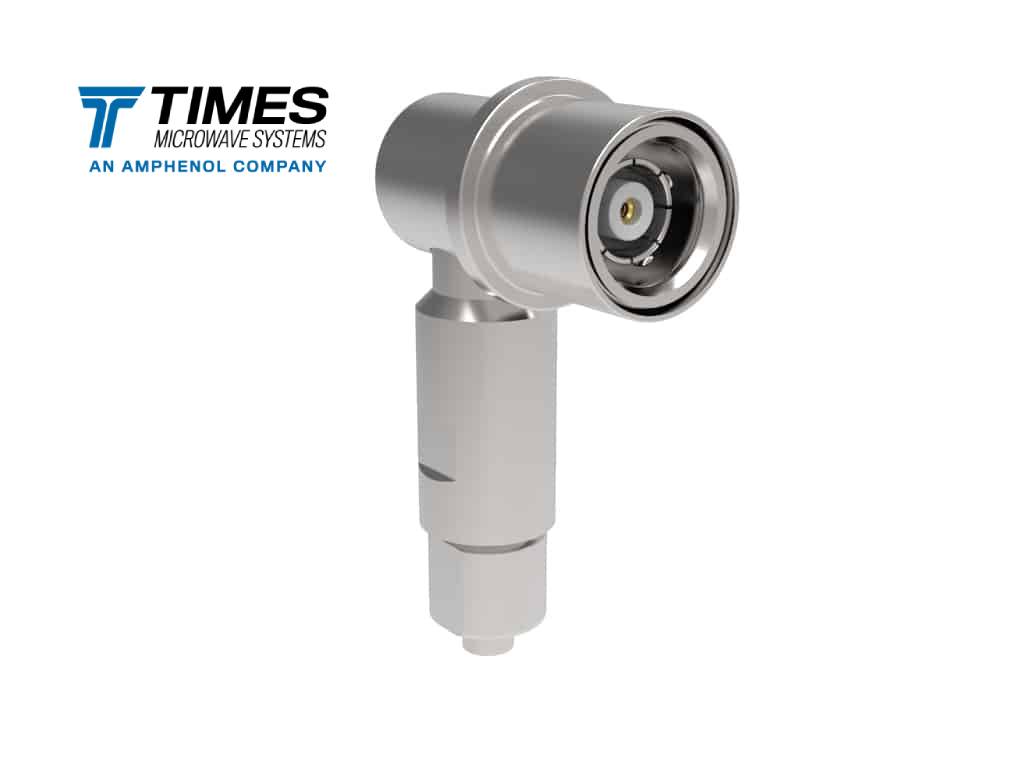

TC-393-MQM-RP-RA-CC	Type MPQD, male (plug), reverse polarity, TC style connector for...	MPQD	Male (plug)	Reverse polarity	3190-6638	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

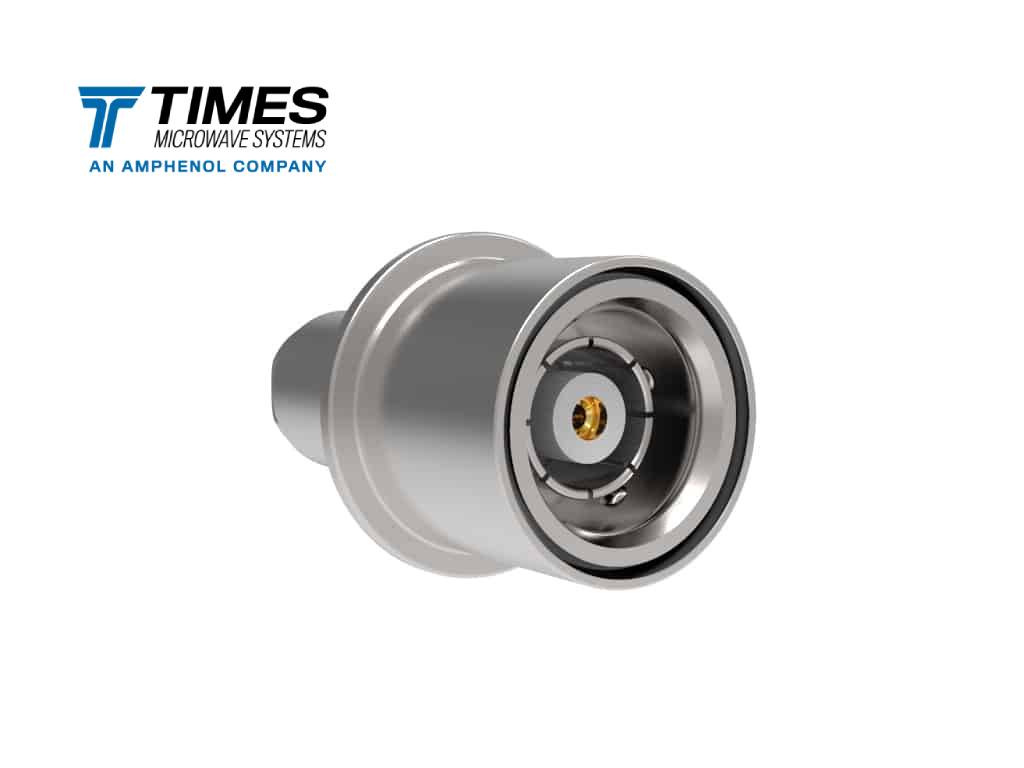

TC-393-MQM-RP-CC	Type MPQD, male (plug), reverse polarity, TC style connector for...	MPQD	Male (plug)	Reverse polarity	3190-6639	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

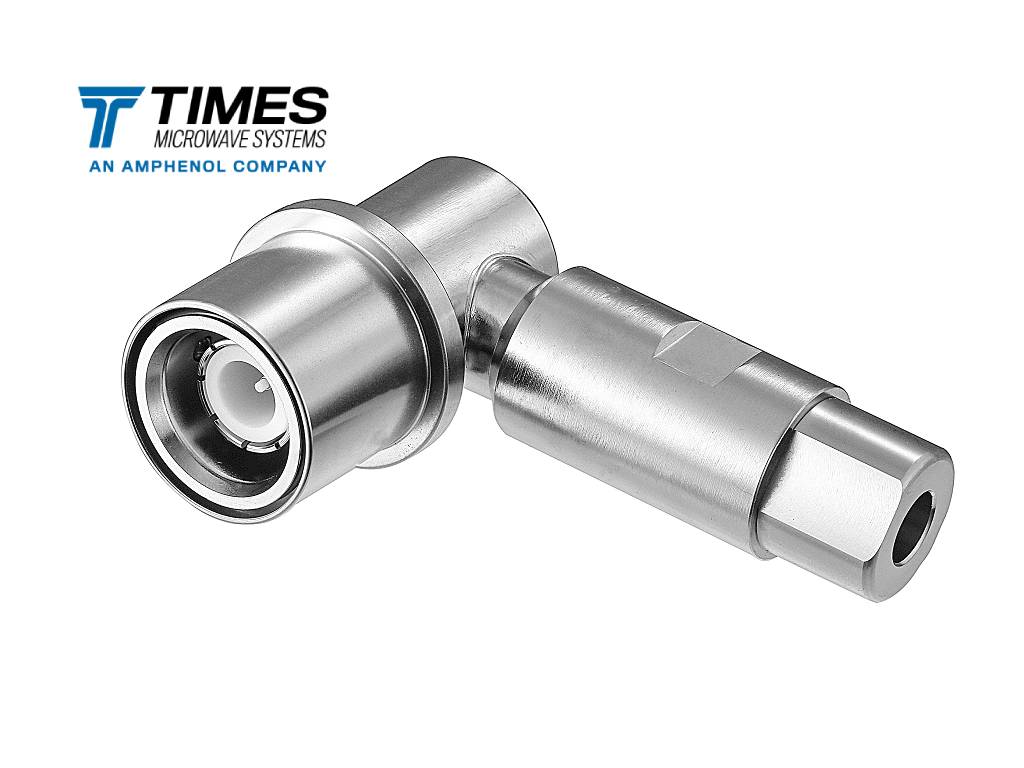

TC-393-MQM-RA-CC	Type MPQD, male (plug), right angle, TC style connector for...	MPQD	Male (plug)	Right Angle	3190-6576	HPL-393 QEAM-810 RG-213 RG-393-NPP-SN RG-59 SFT-393

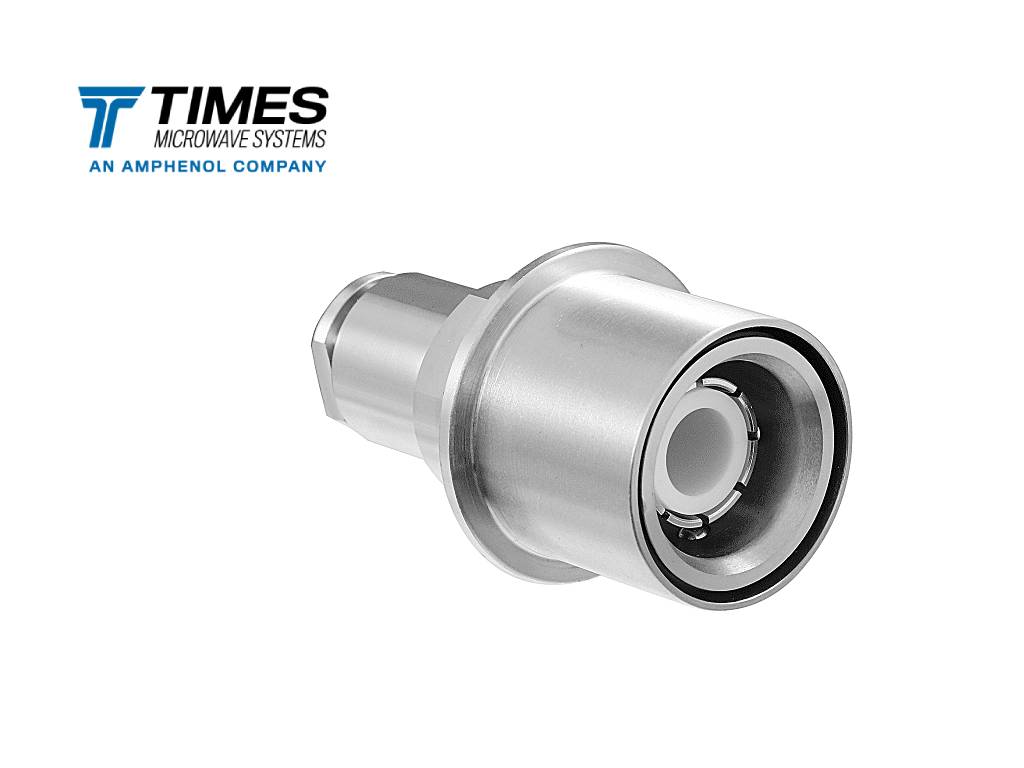

TC-393-MQM-CC	Type MPQD, male (plug), straight, TC style connector for HPL-393,...	MPQD	Male (plug)	Straight	3190-6575	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

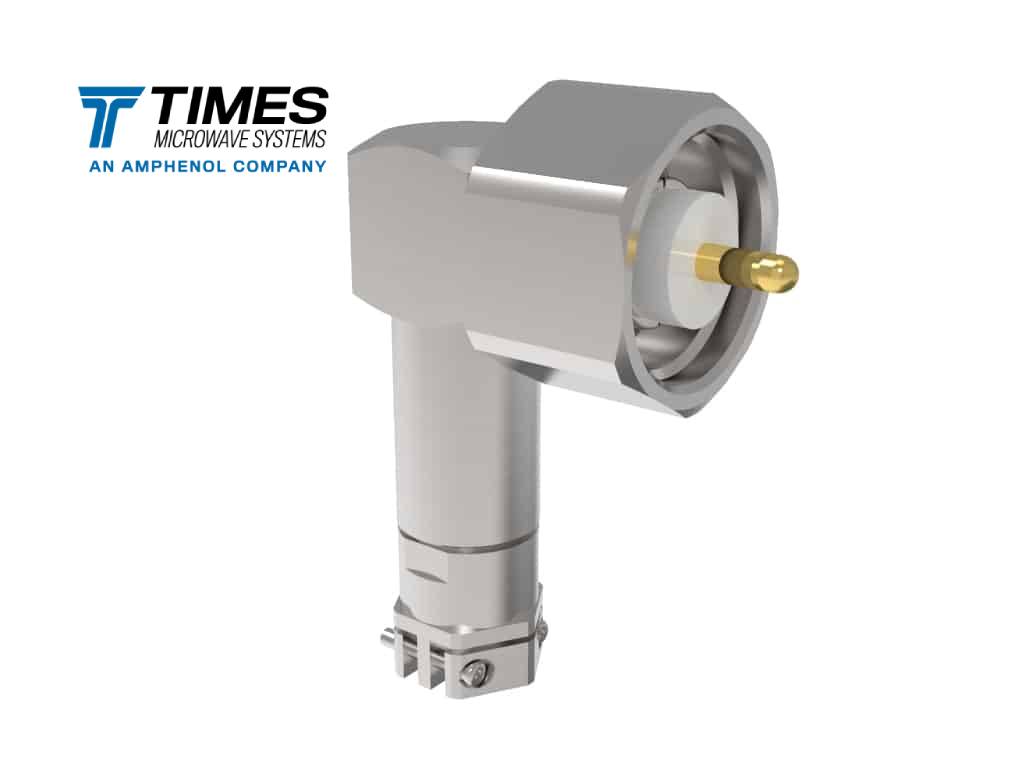

TC-393-LCM-RA-CL	Type LC, male (plug), right angle, TC style connector for...	LC	Male (plug)	Right Angle	3190-2561	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

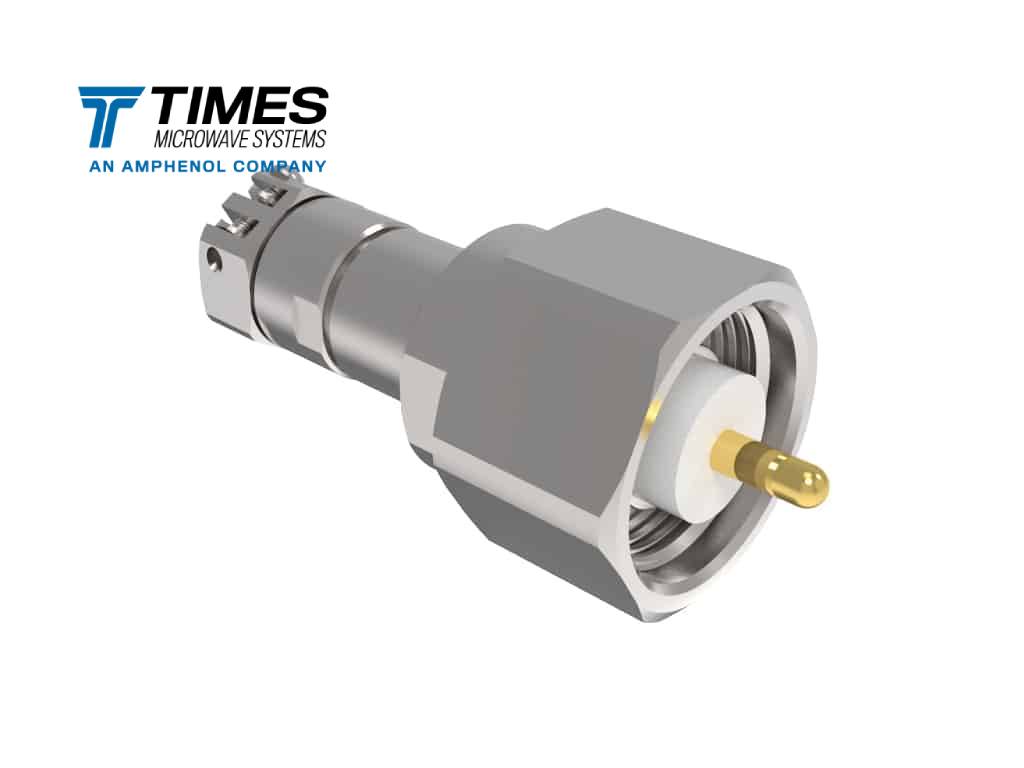

TC-393-LCM-CL	Type LC, male (plug), straight, TC style connector for HPL-393,...	LC	Male (plug)	Straight	3190-2565	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

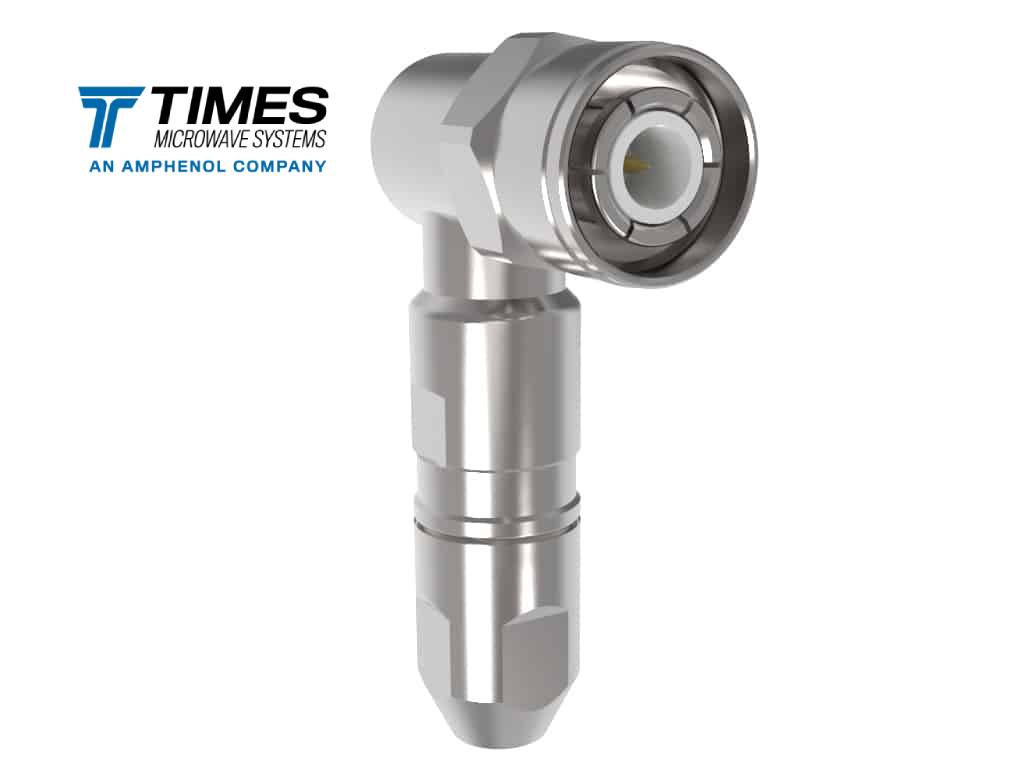

TC-214P-HNM-RA-CC	Type HN, male (plug), right angle, TC style connector for...	HN	Male (plug)	Right Angle	3190-6680	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

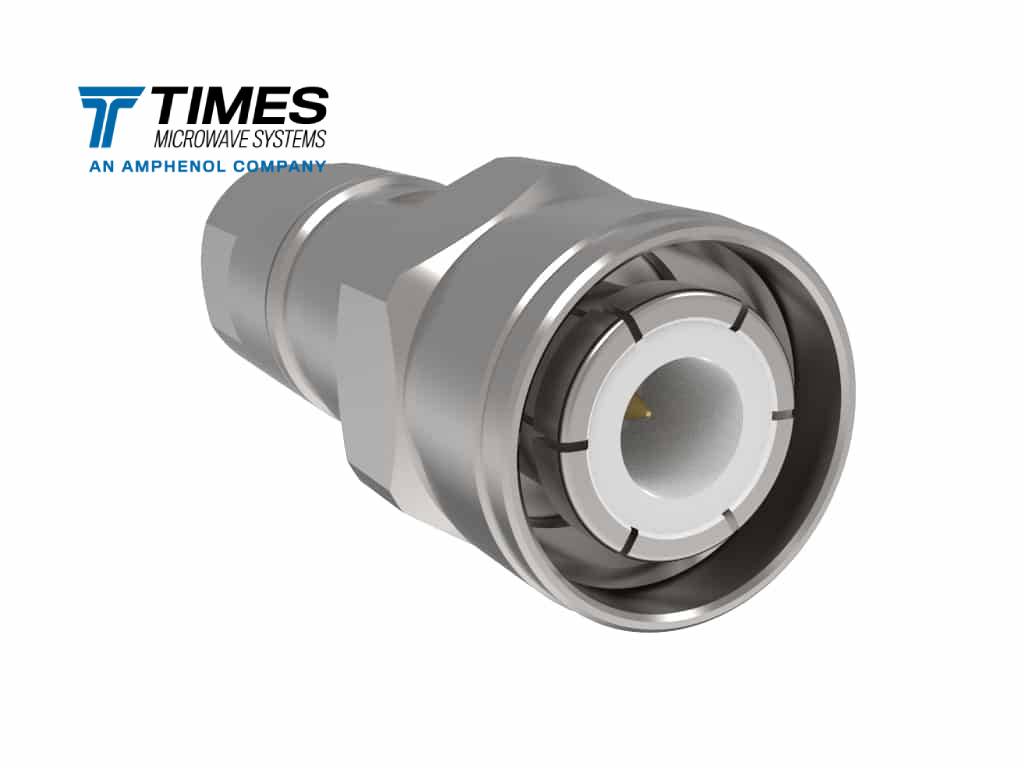

TC-214P-HNM-CC	Type HN, male (plug), straight, TC style connector for HPL-393,...	HN	Male (plug)	Straight	3190-6679	HPL-393 RG-213 RG-393-NPP-SN RG-59 SFT-393

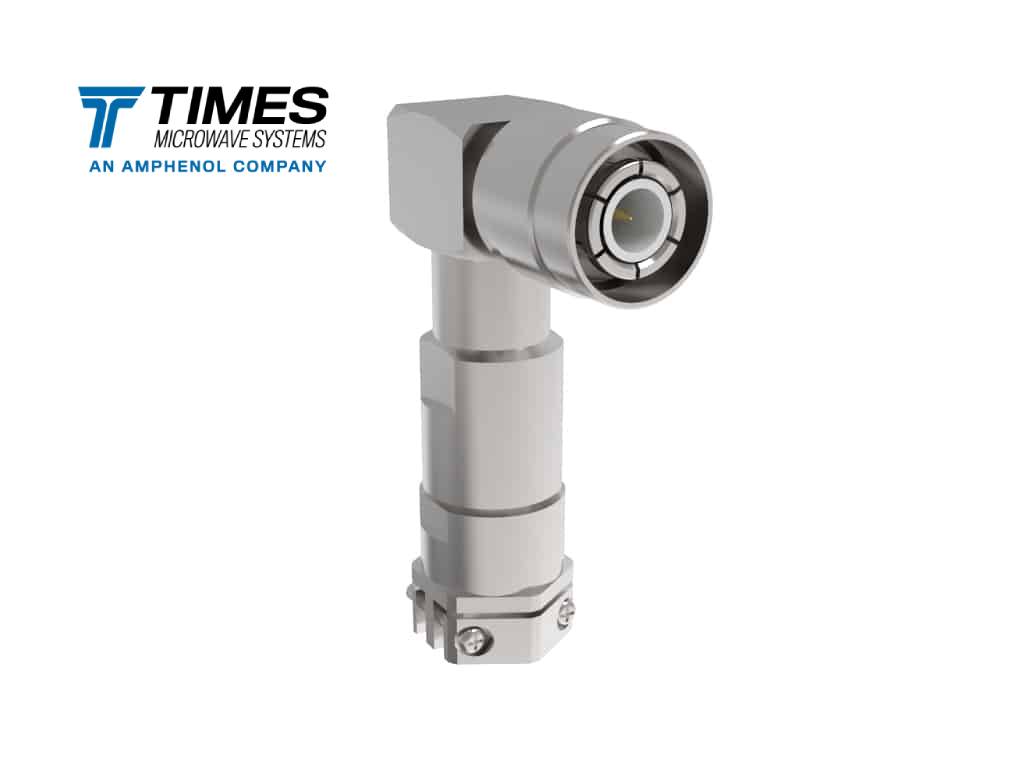

TC-393-HNM-RA-CL	Type HN, male (plug), right angle, TC style connector for...	HN	Male (plug)	Right Angle	3190-2559	HPL-393 RG-213 RG-223 RG-393-NPP-SN SFT-393

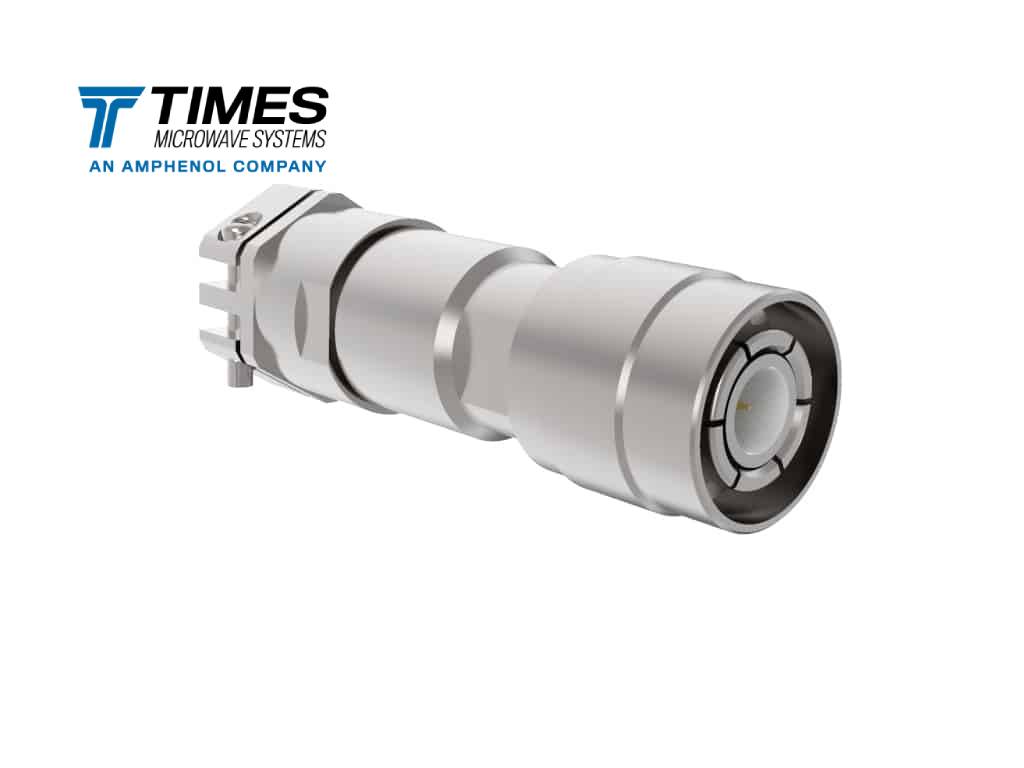

TC-393-HNM-CL	Type HN, male (plug), straight, TC style connector for HPL-393,...	HN	Male (plug)	Straight	3190-2663	HPL-393 RG-213 RG-223 RG-393-NPP-SN SFT-393

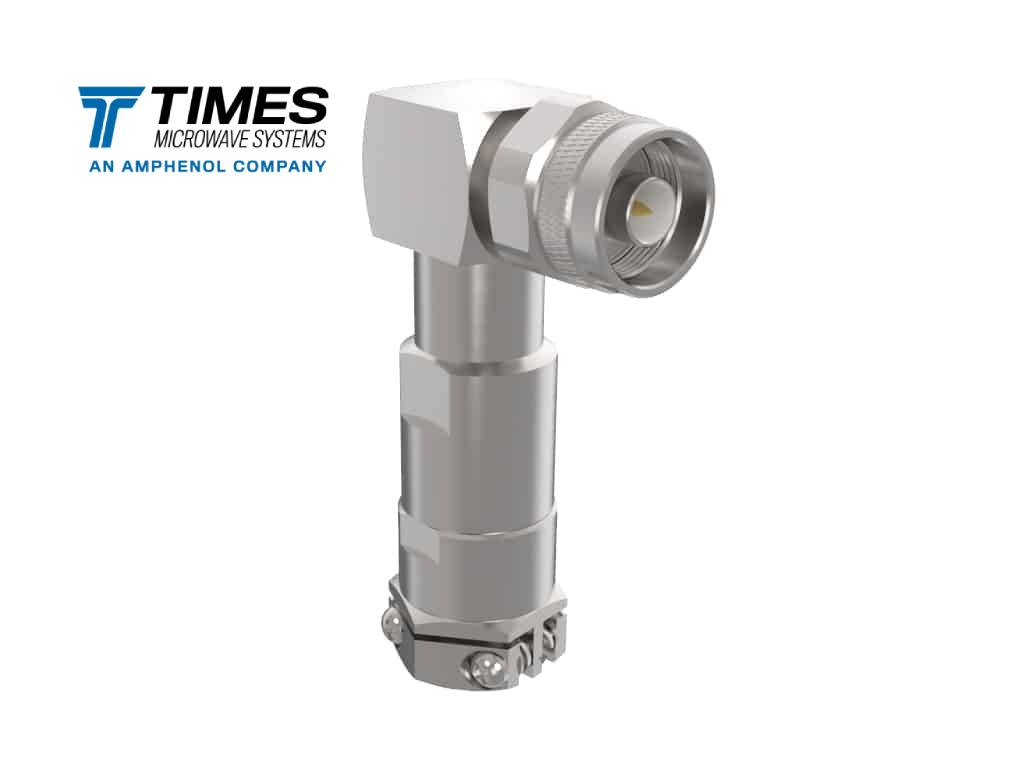

TC-393-NM-RA-CL	Type N, male (plug), right angle, TC style connector for...	N	Male (plug)	Right Angle	3190-2754	HPL-393 RG-213 RG-223 RG-393-NPP-SN SFT-393

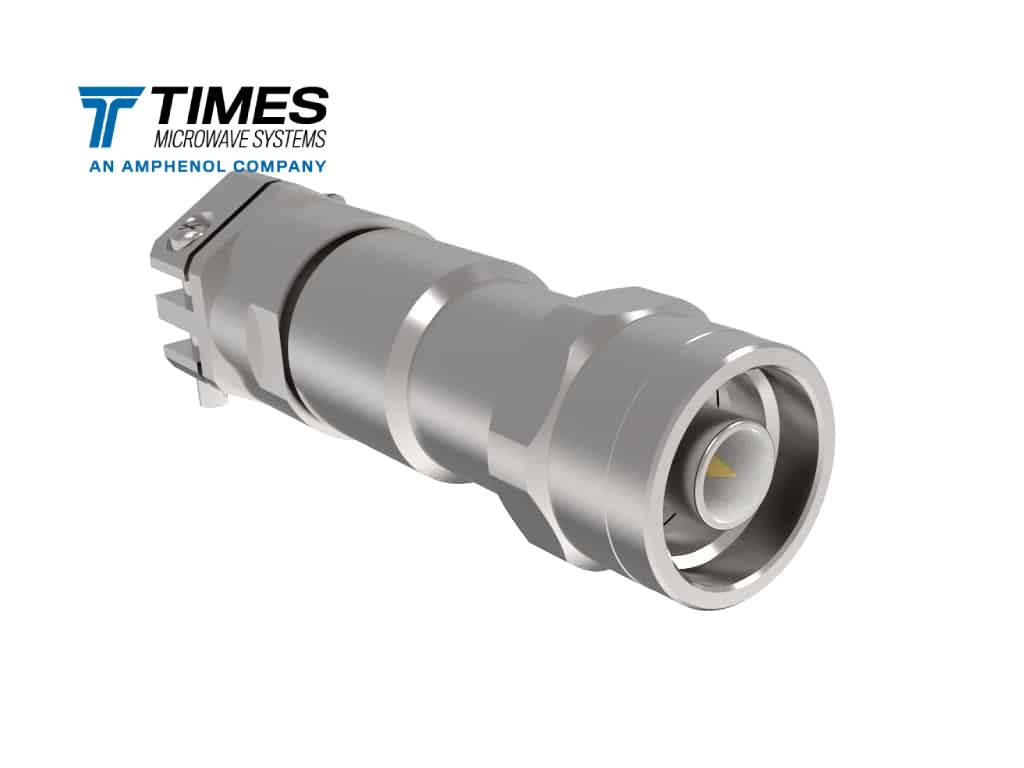

TC-393-NM-CL	Type N, male (plug), straight, TC style connector for HPL-393,...	N	Male (plug)	Straight	3190-2745	HPL-393 RG-213 RG-223 RG-393-NPP-SN SFT-304 SFT-393

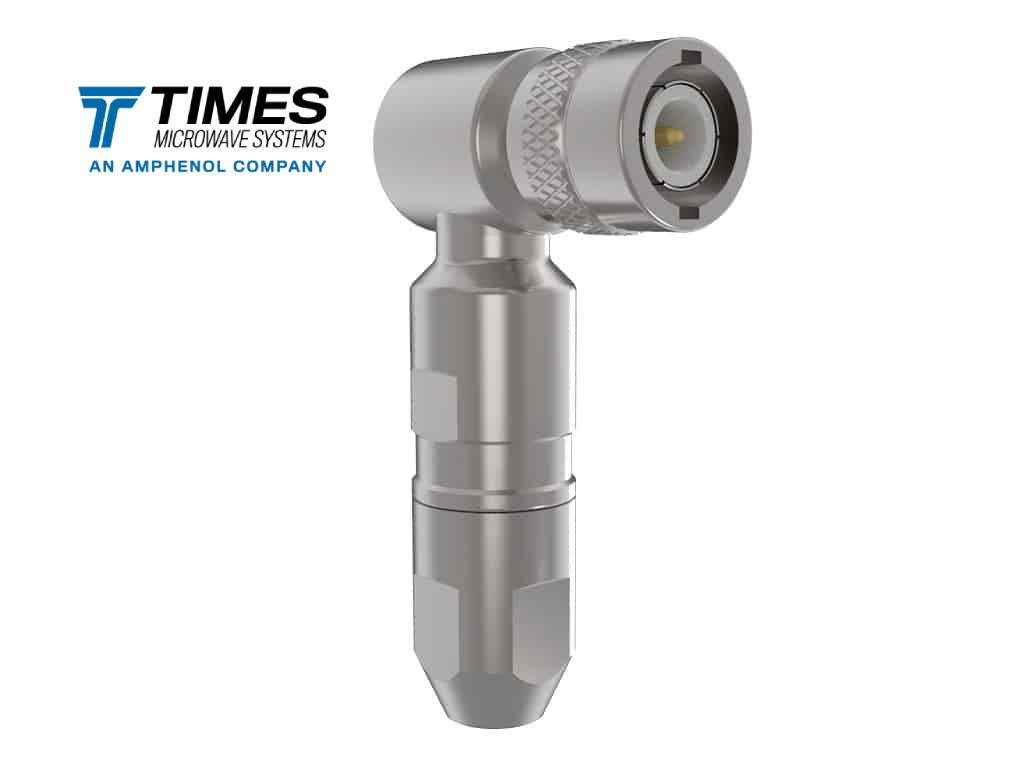

TC-214P-CM-RA-CC	Type C, male (plug), right angle, TC style connector for...	C	Male (plug)	Right Angle	3190-6771	HPL-393 RG-213 RG-223 RG-393-NPP-SN SFT-393

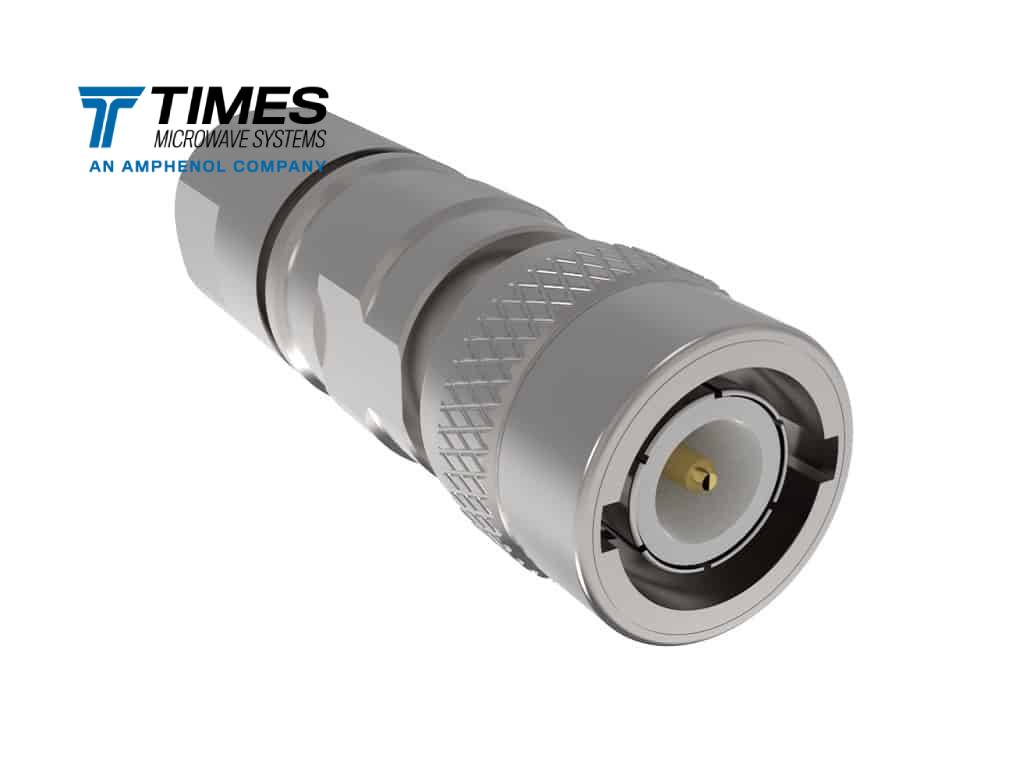

TC-214P-CM-CC	Type C, male (plug), straight, TC style connector for HPL-393,...	C	Male (plug)	Straight	3190-6770	HPL-393 RG-174 RG-213 RG-223 RG-393-NPP-SN SFT-393

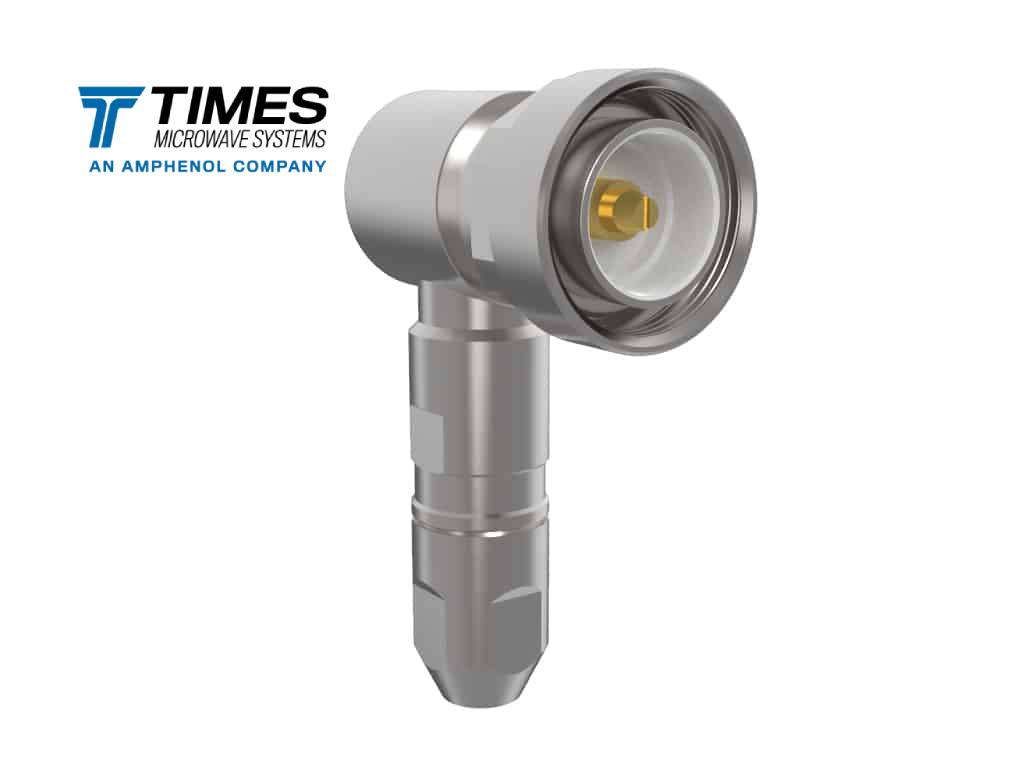

TC-214P-716M-RA-CC	Type 7/16 DIN, male (plug), right angle, TC style connector...	7-16 DIN	Male (plug)	Right Angle	3190-6710	HPL-393 RG-213 RG-223 RG-393-NPP-SN SFT-393

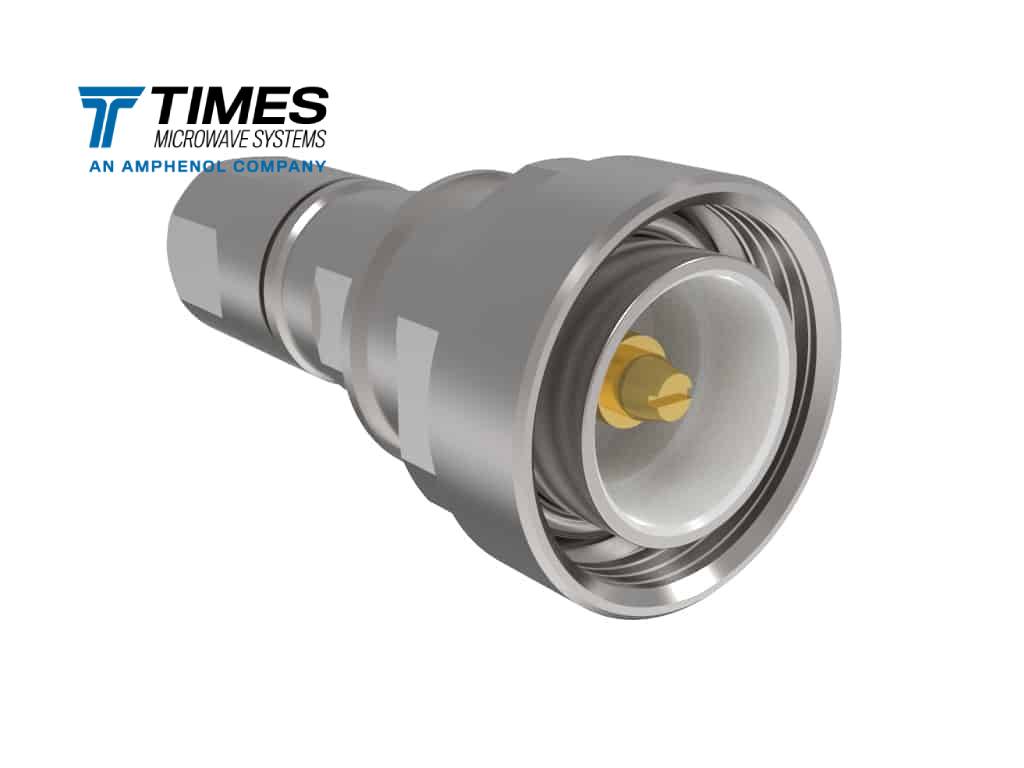

TC-214P-716M-CC	Type 7/16 DIN, male (plug), straight, TC style connector for...	7-16 DIN	Male (plug)	Straight	3190-6709	HPL-393 RG-213 RG-214 RG-393-NPP-SN SFT-226 SFT-393
TC-393-716M-RA-CL	Type 7/16 DIN, male (plug), right angle, TC style connector...	7-16 DIN	Male (plug)	Right Angle	3190-2693	HPL-393 RG-213 RG-214 RG-393-NPP-SN SFT-205 SFT-393

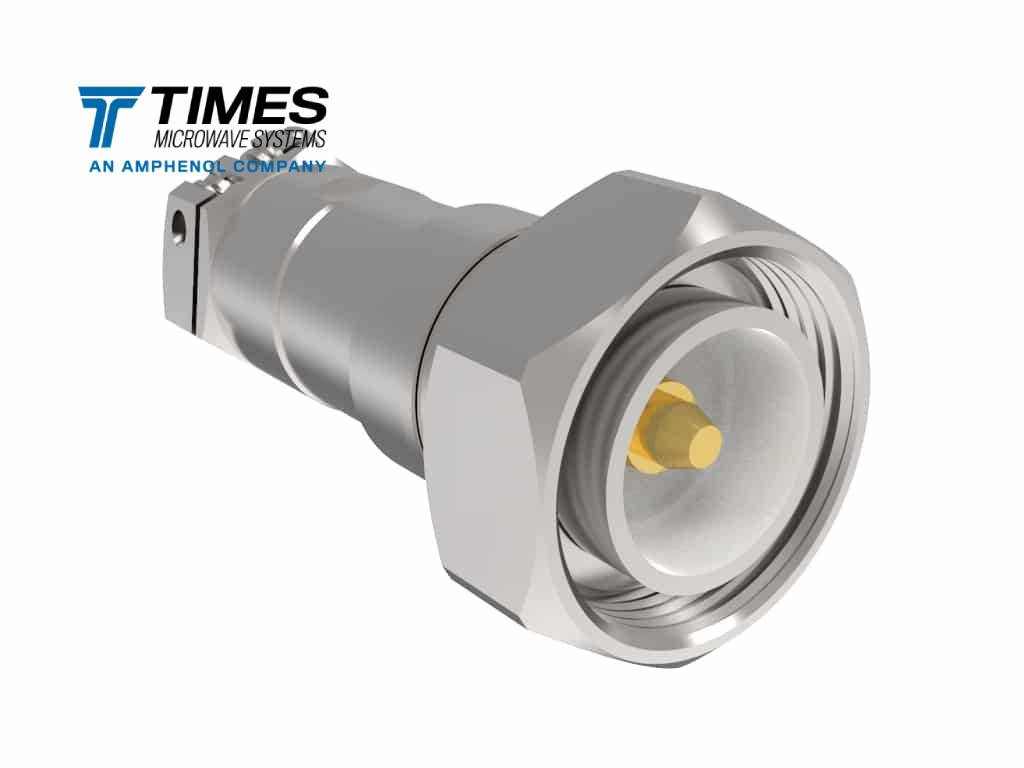

TC-393-716M-CL	Type 7/16 DIN, male (plug), straight, TC style connector for...	7-16 DIN	Male (plug)	Straight	3190-2692	HPL-393 RG-213 RG-214 RG-393-NPP-SN SFT-393
TC-320T-LCM-CL	LC, male, straight, with cable clamp	LC	Male (plug)	Straight	3190-2664

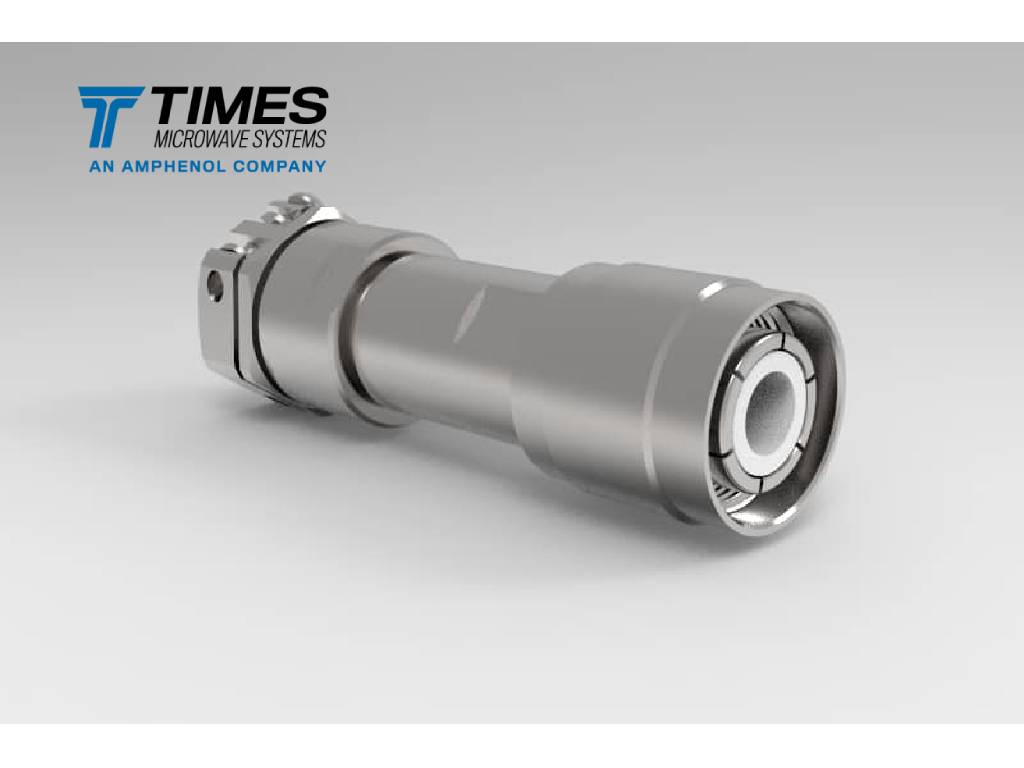

TC-320T-HNM-CL	HN, male, straight, with cable clamp	HN	Male (plug)	Straight	3190-2563

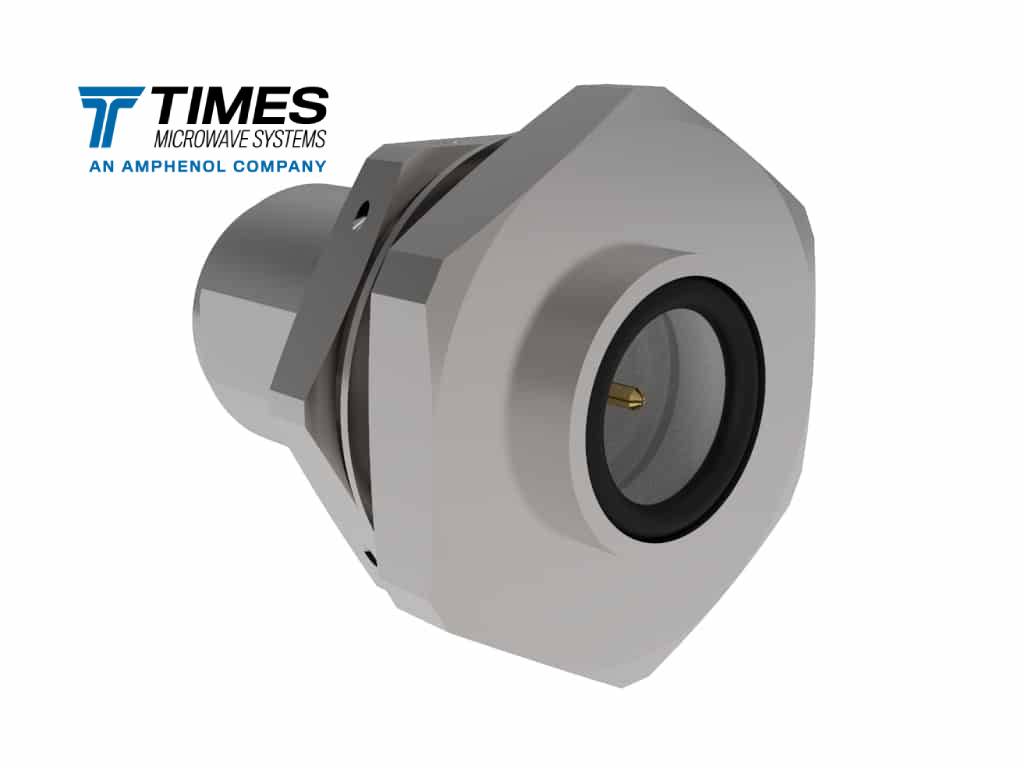

SR-125I-SCF-BH	Type SC, female (jack), straight, SR style connector for MT-210,...	SC	Female (jack)	Straight	48680	MT-210
SR-125I-SCM	Type SC, male (plug), straight, SR style connector for MT-210,...	SC	Male (plug)	Straight	48642	MT-210
EZ-900-78EIA-2-SP	Type 7/8 EIA Flange, straight, EZ style connector for HP-900,...	7-8 EIA Flange	Flange	Straight	3190-6441	HP-900 LMR-900-DB LMR-900-FR LMR-900-LLPX LMR-900-RR-DB SFT-900 T-RAD-900-FR T-RAD-900-PVC
TC-400-HNM-RA	HN male (plug) right angle TC connector for FBT-400, LMR®-400,...	HN	Male (plug)	Right Angle	3190-2541	FBT-400 LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-LLPX LMR-400-RR-DB TCOM-400
TC-600-HNMC	HN male (plug) straight TC connector for LMR®-600, TCOM®-600, T-RAD®-600-FR,...	HN	Male (plug)	Straight	3190-1429	FBT-600 LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC LMR-600-LLPX TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC
EZ-600-78-EIA	7/8 EIA Flange EZ connector for LMR-600, TCOM-600, and T-RAD-600-FR...	7-8 EIA Flange	Flange	Flange	3190-1373	LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC
TC-600-LCM-PL	LC male (plug) straight TC connector for LMR®-600 and FBT-600...	LC	Male (plug)	Straight	3190-1221	FBT-600 LMR-600-LLPX

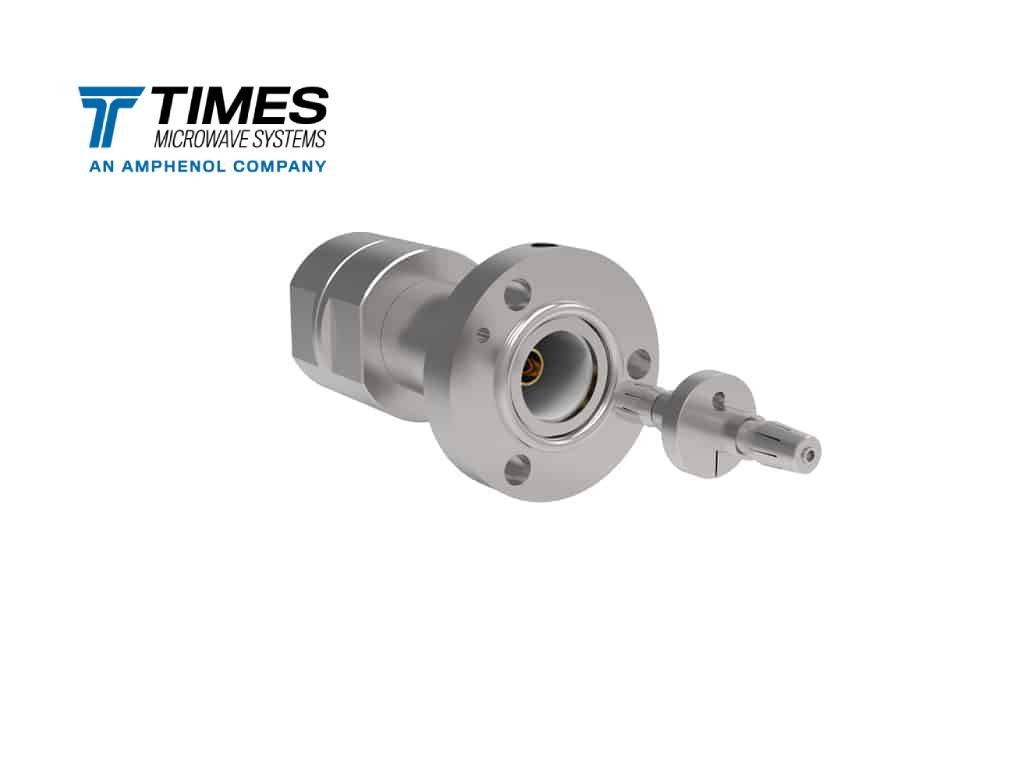

EZ-1200-78EIA-2	7/8 EIA Flange straight EZ connector for LMR®-1200 type cables....	7-8 EIA Flange	Flange	Straight	3190-2780	LMR-1200-DB LMR-1200-FR

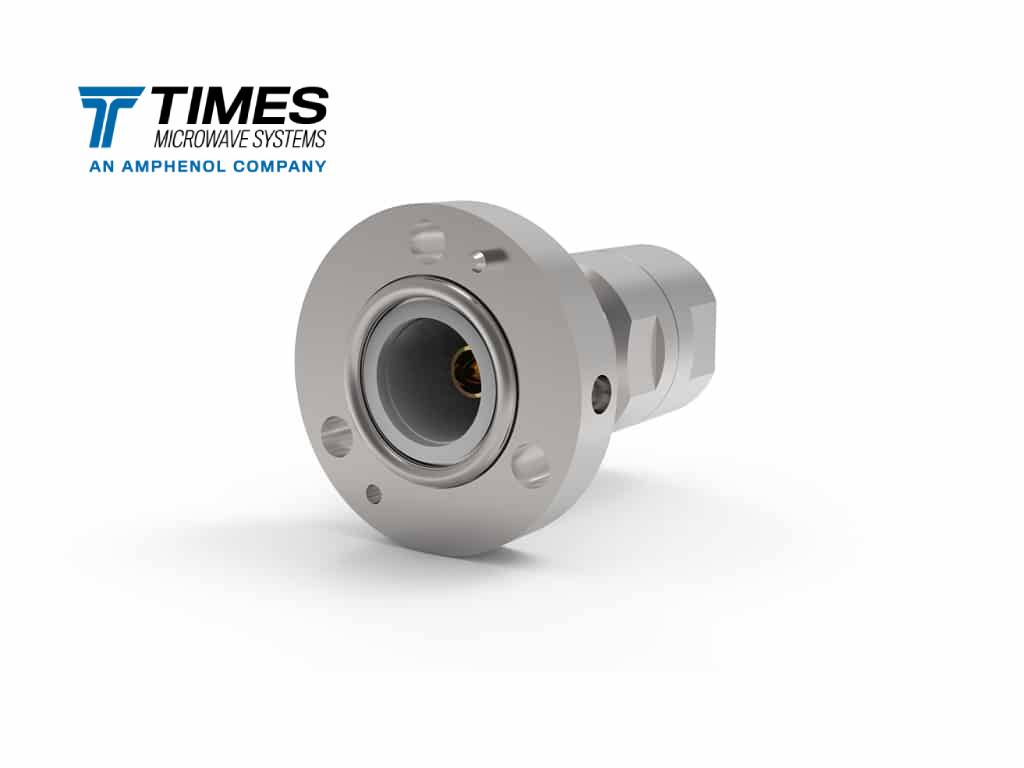

EZ-900-78EIA-2	The EZ-900-78EIA-2-SP eliminates assembly errors and soldering with crimp-style outer...	7-8 EIA Flange	Flange	Flange	3190-6441	HP-900 LMR-900-LLPX LMR-900-FR LMR-900-RR-DB SFT-900 T-RAD-900-PVC T-RAD-900-FR

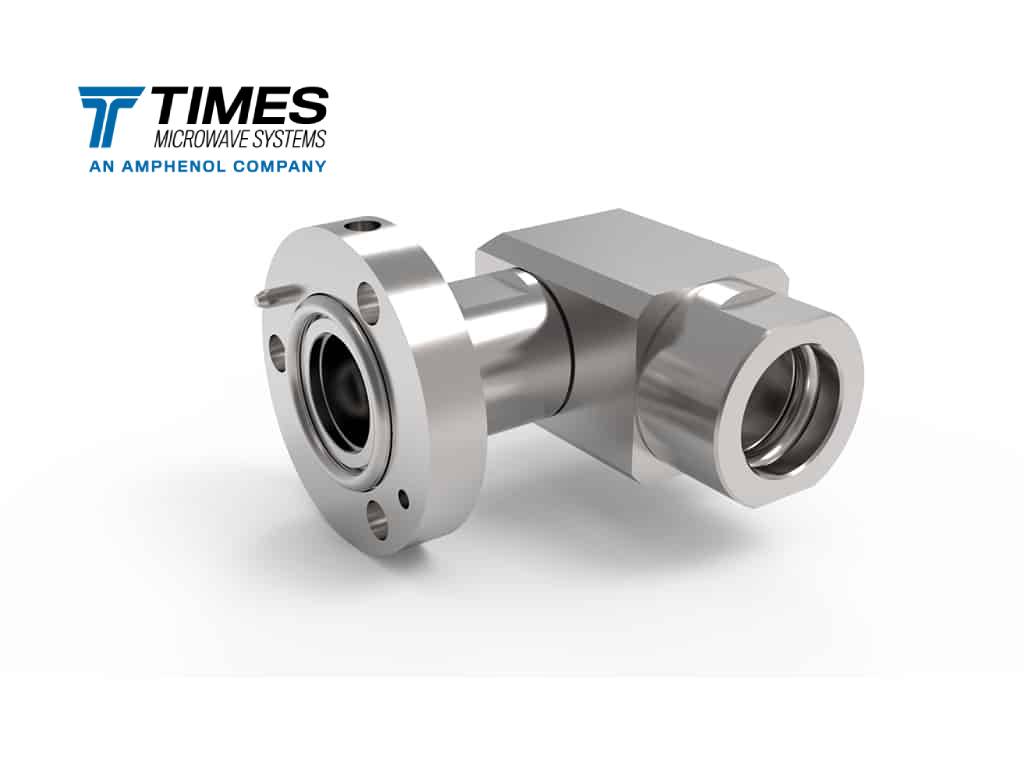

EZ-900-78EIA-RA-2	The EZ-900-78EIA-RA-2-SP eliminates assembly errors and soldering with crimp-style outer...	7-8 EIA Flange	Flange	Flange	3190-6442	HP-900 LMR-900-LLPX LMR-900-FR LMR-900-DB LMR-900-RR-DB SFT-900 T-RAD-900-PVC T-RAD-900-FR
