XF-178
XtendedFlex® is a solution for applications requiring constant cable motion and flexibility. Its innovative design and unique material composition ensure consistent performance under millions of flexures.
Stock Code: 05851
XF-178
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberXF-178 |
| EnvironmentIndoor |
| JacketTPE |
| Overall Diameter (mm)0.123 |
| Overall Diameter (in)0.123 |
| Weight Kg/m0.00791 |
| Weight lb/ft0.00791 |
| Operating Temp.°C (°F)105° to 105°C (-40° to 221°F) |
| Min. Bend Radius (mm)16.891 |
| Min. Bend Radius (in)0.665 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)3 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with

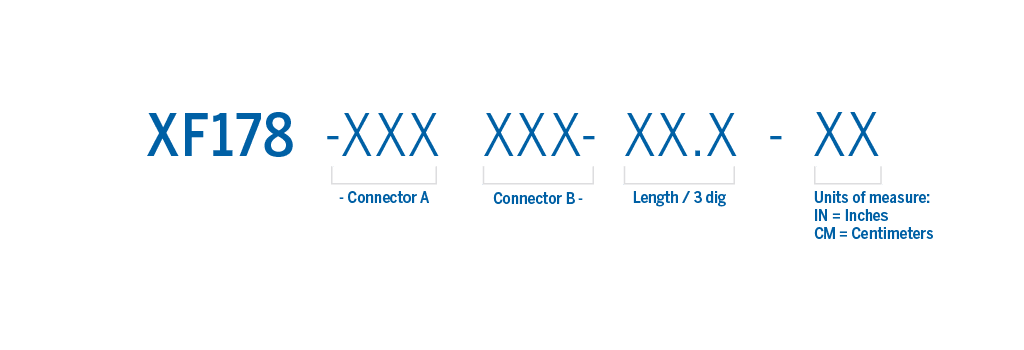

Part Number Structure

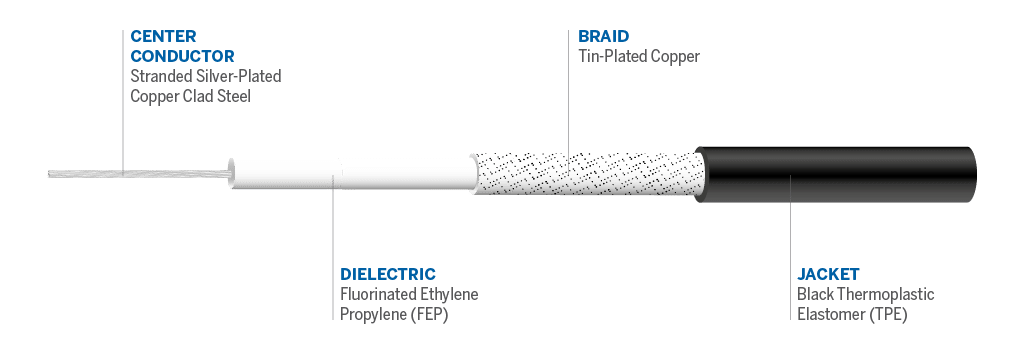

Cable Details
Documentation
