TRC-1250-FR

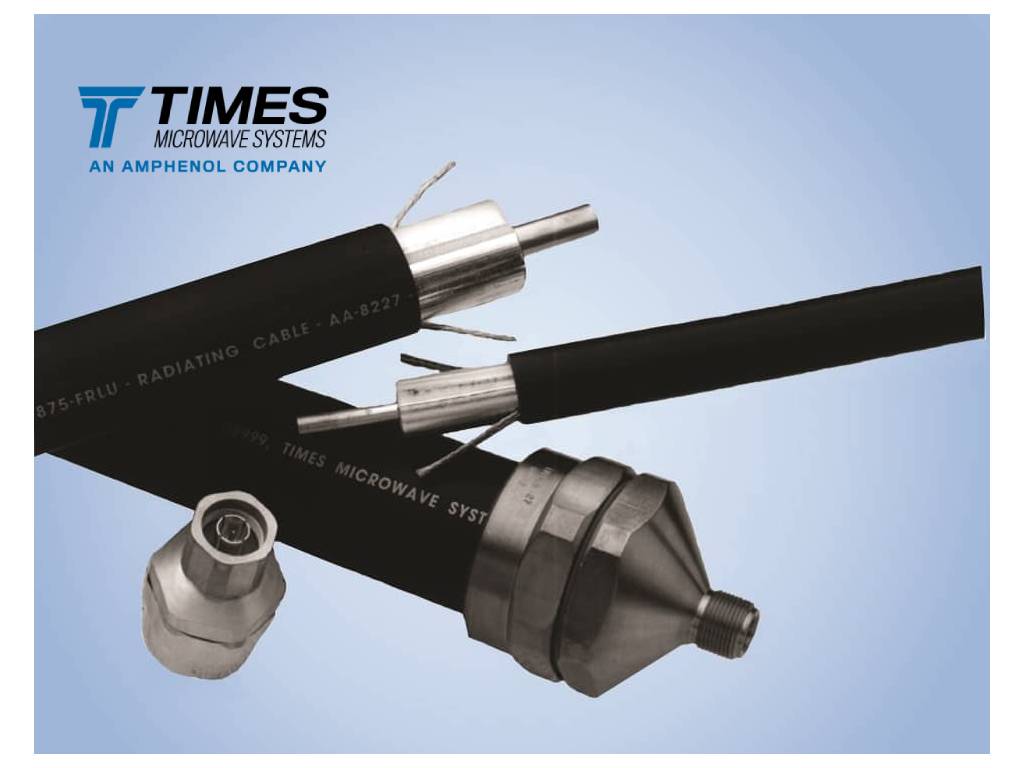

TRC-1250-FR is a Nu‑Trac® flame-retardant radiating cable designed for long indoor runs in metros, tunnels, and transit systems. Featuring a low-smoke, non-halogen polyolefin jacket and dual-shield construction, it ensures minimal signal attenuation and controlled RF coverage. Its robust 43 mm diameter and 50 Ω impedance make it ideal for high-performance, mission-critical RF communication.
Stock Code: 44003
Standard cable, flame retardent jacket, Low-Smoke, Non-Halogen
Request a Quote
Specifications
| Part NumberTRC-1250-FR |
| EnvironmentIndoor |
| JacketPolyolefin |
| Overall Diameter (mm)43.18 |
| Overall Diameter (in)1.7 |
| Weight Kg/m1.1161 |
| Weight lb/ft0.75 |
| Operating Temp.°C (°F)-40° to 80°C (-40° to 176°F) |
| Min. Bend Radius (mm)342.9 |
| Min. Bend Radius (in)13.5 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)3 |
| Impedance (ohms)50 |
| Power Handling (DWV)9000 |
