TFT-5G-402

TFT-5G-402 Low PIM 1/4" Bare Copper CC and Tin Plated Flat Strip Braid, Blue FEP Jacket

Stock Code: AA-11431

TFT-5G-402 Low PIM 1/4" Bare Copper CC and Tin Plated Flat Strip Braid, Blue FEP Jacket

Inventory Status
Distributor Qty Order
DigiKey1032Buy
Mouser Electronics1228Buy

Specifications

Part Number
EnvironmentOutdoor
JacketFEP
Overall Diameter (mm)0.16
Overall Diameter (in)0.16
Weight Kg/m0.031
Weight lb/ft0.031
Operating Temp.°C (°F)200° to 200°C
(-67° to 392°F)
Min. Bend Radius (mm)12.7
Min. Bend Radius (in)0.5
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-402-1023M-LP TC-402-225F-LP TC-402-225M-LP TC-402-4195F-LP TC-402-4195M-LP TC-402-4310F-BH-LP TC-402-4310F-LP TC-402-4310M-LP TC-402-4310M-RA-LP TC-402-4310MS-LP TC-402-716F-LP TC-402-716F-PM-LP TC-402-716M-LP TC-402-716M-RA-LP TC-402-NF-BH-LP TC-402-NF-LP TC-402-NM-LP TC-402-NM-RA-LP TC-402-NX10F-BH-LP TC-402-NX10M-LP TC-402-NX10M-RA-LP TC-402-QM-LP TC-402-QM-RA-LP TC-402-SM-LP TC-402-SM-RA-LP

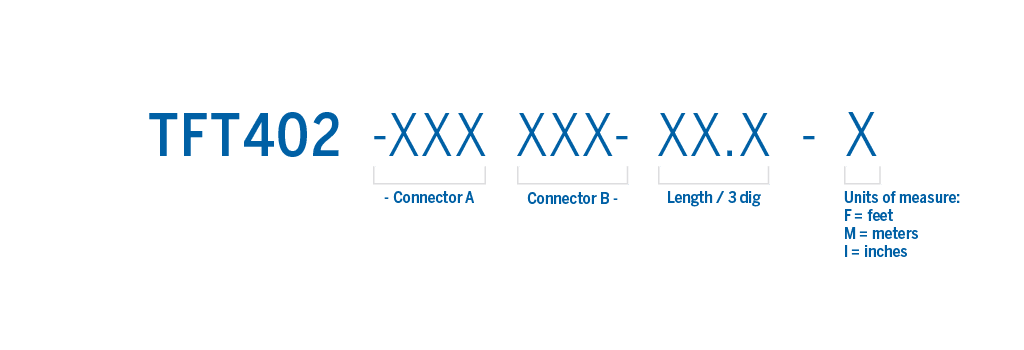

Part Number Structure

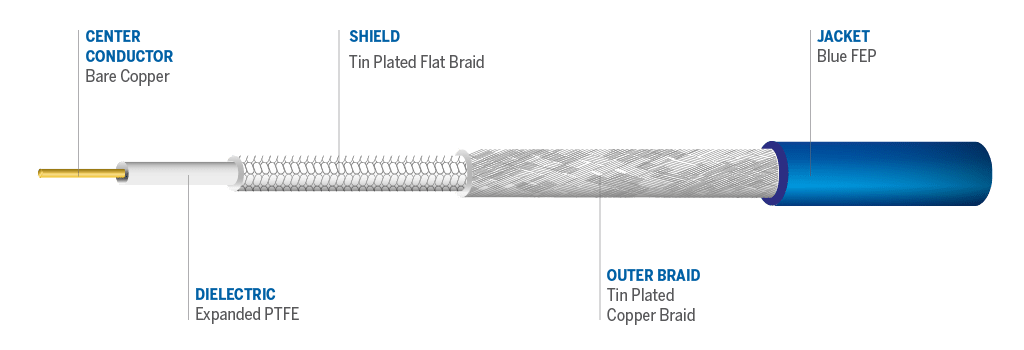

Cable Details
