TFT-5G-401

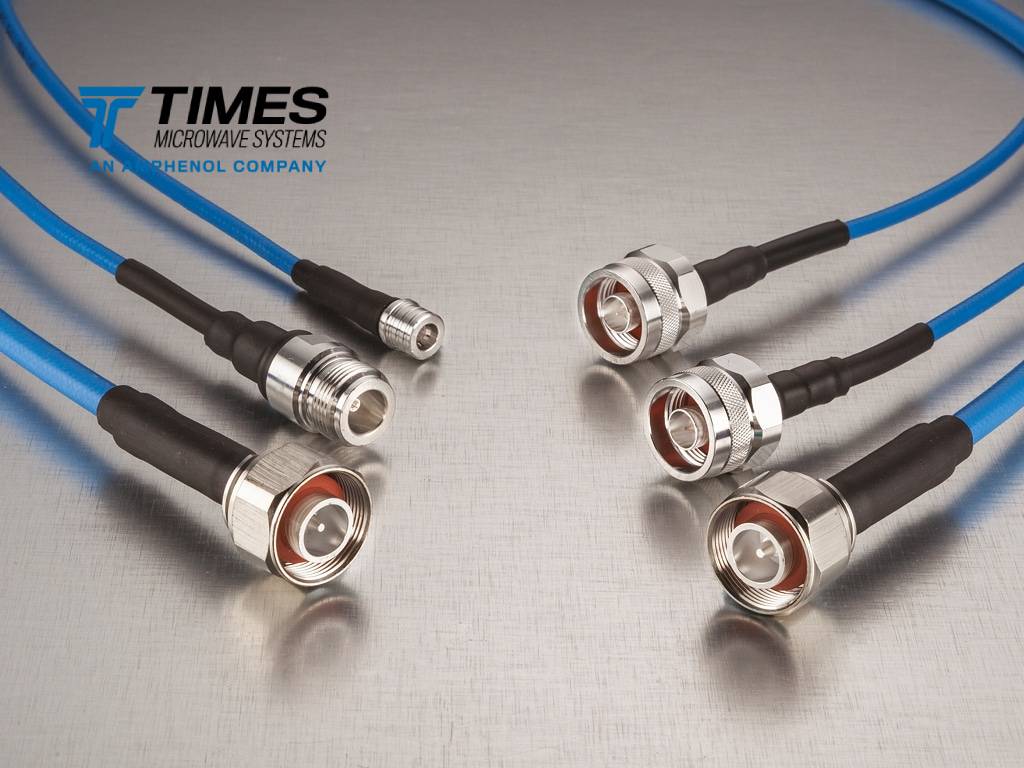

The TFT‑5G‑401 is a low PIM coaxial cable with a 250" bare copper center conductor, tin‑plated flat strip braid, and vibrant blue FEP jacket—engineered for superior signal integrity in high-frequency 5G, DAS, and RF communication systems.
Stock Code: AA-12062
TFT-5G-401 Low PIM 250" Bare Copper CC and Tin Plated Flat Strip Braid, Blue FEP Jacket
Inventory Status
![]()
| In Stock | Qty | Order |
Specifications
| Part NumberTFT-5G-401 |
| EnvironmentOutdoor |
| JacketFEP |
| Overall Diameter (mm)6.731 |
| Overall Diameter (in)0.265 |
| Weight Kg/m0.1161 |
| Weight lb/ft0.078 |
| Operating Temp.°C (°F)-55° to 200°C (-67° to 392°F) |
| Min. Bend Radius (mm)19.05 |
| Min. Bend Radius (in)0.75 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure
Cable Details

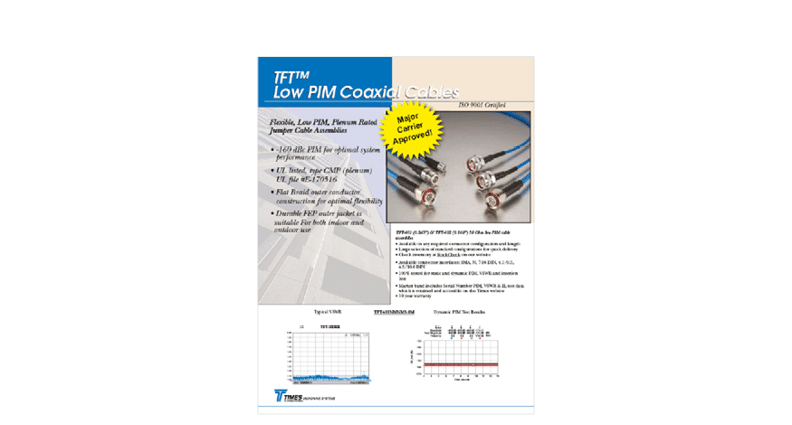

Resources
