TFlex-405

TFlex®-405 is a flexible, low-loss microwave coaxial cable with excellent EMI shielding and low PIM. Featuring a silver-plated copper core, PTFE dielectric, and dual-braid shielding, it offers reliable RF performance in harsh environments. Ideal for aerospace, radar, robotics, and mission-critical applications where space and durability matter.

Tflex cable with low loss, excellent shielding, and a low PIM alternative to semi-rigid

Stock Code: 51670

TFlex-405 Low Loss, excellent shielding and Low PIM alternative to Semi-Rigid

Request a Quote

Specifications

Part NumberTFLEX-405
Environment
JacketFEP
Overall Diameter (mm)2.6416
Overall Diameter (in)0.104
Weight Kg/m0.0223
Weight lb/ft0.015
Operating Temp.°C (°F)-55° to 125°C (-85° to 257°F)
Min. Bend Radius (mm)6.35
Min. Bend Radius (in)0.25
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)60
Impedance (ohms)50
Power Handling (DWV)

Can't find what you're looking for?

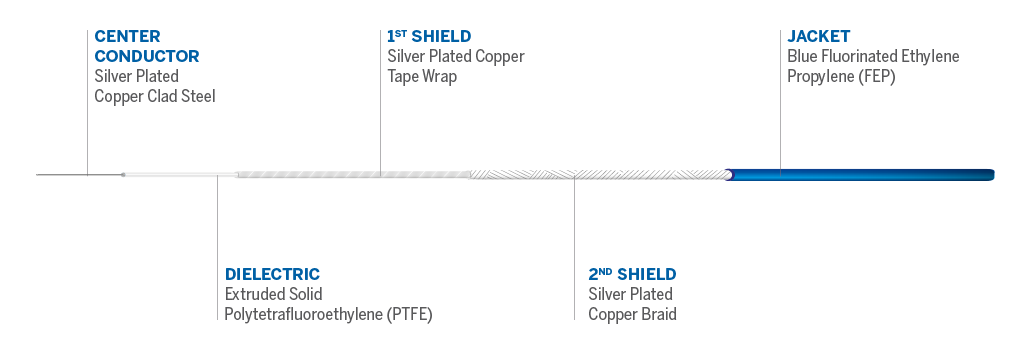

Cable Details

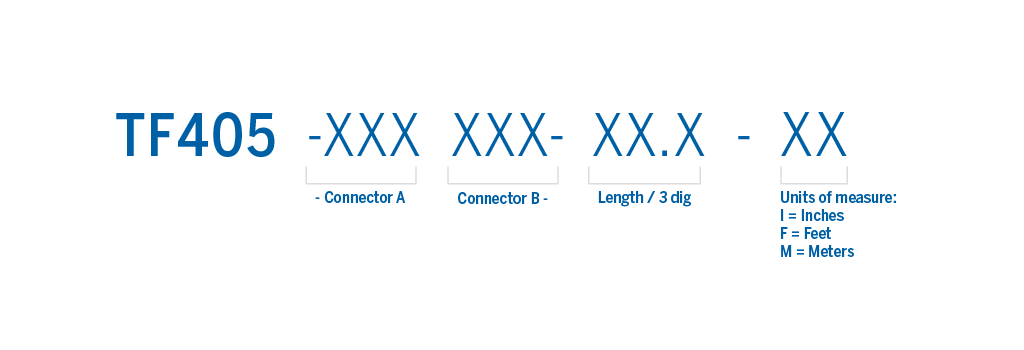

Part number structure

Part Number Structure

Cable details
