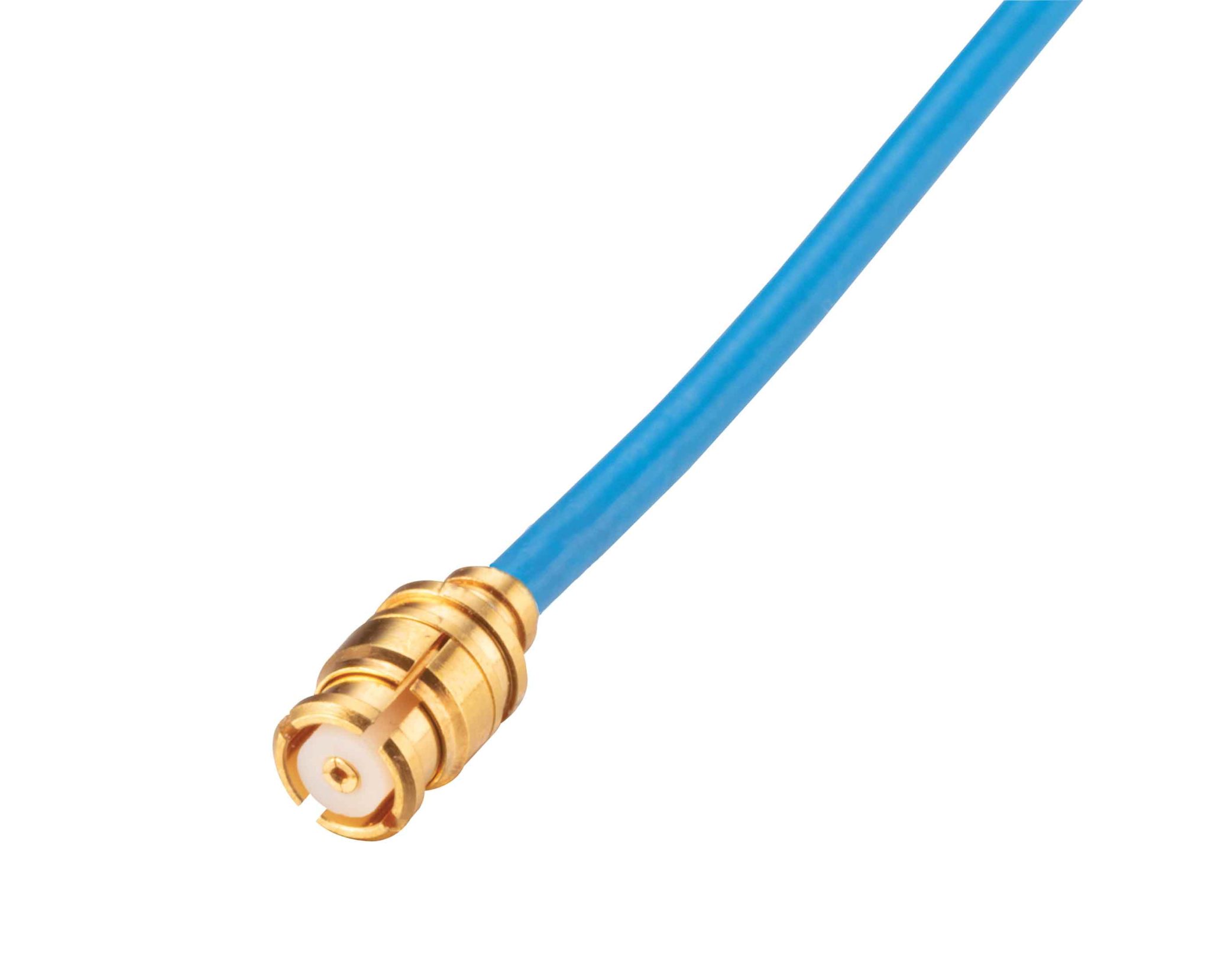

TF-047
TF-047 is a versatile micro-coaxial cable ideal for high density applications. Available in bulk or cable assembly with a wide selection of interfaces, TF-047 offers high performance and reliability in a compact footprint.
Stock Code: 58001
TF-047 is a versatile micro-coaxial cable ideal for high-density applications
Inventory Status
Specifications
| Part NumberTF-047 |
| EnvironmentIndoor |
| JacketFEP |
| Overall Diameter (mm)1.4 |
| Overall Diameter (in)0.055 |
| Weight Kg/m0.001 |
| Weight lb/ft0.003 |
| Operating Temp.°C (°F)-65° to 150°C (-85° to 302°F) |
| Min. Bend Radius (mm)5.08 |
| Min. Bend Radius (in)0.2 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)50 |
| Impedance (ohms)50 |
| Power Handling (DWV)2000 |
TF-047 cable assemblies from Times Microwave Systems deliver ultra-flexibility and low-loss performance in tight, high-frequency applications. Designed for precision and reliability, these assemblies are ideal for space-constrained environments in aerospace, defense, and test systems. Available through our verified distribution partners.
| TF047-KMKM-12.0I | TF-047 cable assembly, 2.92 mm male to 2.92 mm male, 12.0 in. | 12.0 |
| TF047-SMPFSMPF-4.0I | TF-047 cable assembly, SMP female to SMP female, 4.0 in. | 4.0 |
| TF047-SMPFSMPF-6.0I | TF-047 cable assembly, SMP female to SMP female, 6.0 in. | 6.0 |
| TF047-MSMPFMSMPF-4.0I | TF-047 cable assembly, SMPM female to SMPM female, 4.0 in. | 4.0 |
| TF047-MSMPFMSMPF-6.0I | TF-047 cable assembly, SMPM female to SMPM female, 6.0 in. | 6.0 |
| TF047-MSMPFMSMPFR-4.0I | TF-047 cable assembly, SMPM female to SMPM female right angle, 4.0 in. | 4.0 |
| TF047-MSMPFMSMPFR-6.0I | TF-047 cable assembly, SMPM female to SMPM female right angle, 6.0 in. | 6.0 |
| TF047-SMPSFSMPSF-4.0I | TF-047 cable assembly, SMPS female to SMPS female, 4.0 in. | 4.0 |
| TF047-SMPSFSMPSF-6.0I | TF-047 cable assembly, SMPS female to SMPS female, 6.0 in. | 6.0 |
| TF047-SMPSFSMPSFR-4.0I | TF-047 cable assembly, SMPS female to SMPS female right angle, 4.0 in. | 4.0 |
| TF047-SMPSFSMPSFR-6.0I | TF-047 cable assembly, SMPS female to SMPS female right angle, 6.0 in. | 6.0 |
| TF047-SMSM-12.0I | TF-047 cable assembly, SMA male to SMA male, 12.0 in. | 12.0 |
| TF047-SMSMPF-12.0I | TF-047 cable assembly, SMA male to SMP female, 12.0 in. | 12.0 |
| TF047-SMSMPF-6.0I | TF-047 cable assembly, SMA male to SMP female, 6.0 in. | 6.0 |
TF-047 connectors are engineered for precision and durability, offering reliable performance in high-frequency, space-constrained applications. Compatible with TF-047 cables and available through distribution, these connectors ensure optimal signal integrity across demanding environments.
Part Number Structure
Cable Details
Documentation
Resources
