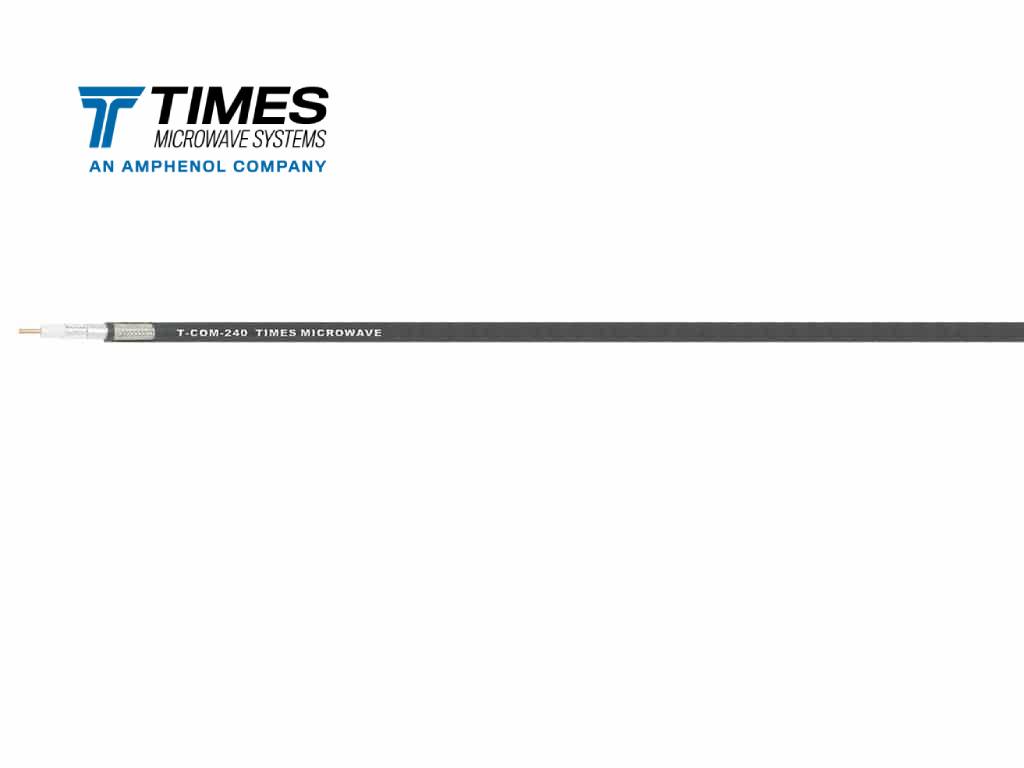

TCOM-240

T-COM® 240 are the most versatile, low-loss coaxial cables on the market. Featuring the same attenuation as LMR®, these TCOM cables feature a multi-layer shield to deliver a flexible, rugged, low loss, low PIM coaxial option. TCOM family is perfect for low PIM applications requiring handling or movement after initial installation and the need for optimized shielding effectiveness in harsh environment survival. The TCOM-240 features a black polyethylene jacket.

Stock Code: 55017

TCOM-240 Standard cable, Black PE jacket

Inventory Status
Distributor Qty Order
Murray-Benjamin Electric1000Buy
Mouser Electronics223Buy

Specifications

Part NumberTCOM-240
EnvironmentOutdoor
JacketPE
Overall Diameter (mm)0.24
Overall Diameter (in)0.24
Weight Kg/m0.045
Weight lb/ft0.045
Operating Temp.°C (°F)85° to 85°C
(-40° to 185°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)0.34
Bending Moment (ft-lb)0.25
Max Frequency (GHz)31
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-240-4310M-X TC-240-716M TC-240-716M-RA-D TC-240-BM-X TC-240-BMC TC-240-BM-RA-D TC-240-FMEM-X TC-240-MUHF TC-240-NF-BH-X TC-240-NF-PM-X TC-240-NMH-X TC-240-NMC TC-240-NMH-RA-D TC-240-SF-BH-SS-X TC-240-SM-SS-X TC-240-SM-RA-SS-D TC-240-SM-RP TC-240-TM-X TC-240-TM-RA-D EZ-240-1023M-X EZ-240-4310M-X EZ-240-4310M-RA-X EZ-240-BM-RA-X EZ-240-BM-X EZ-240-716M-RA-X EZ-240-NF-X EZ-240-NF-BH-X EZ-240-NMH-LW-X EZ-240-NMH-RA-X EZ-240-QM-X EZ-240-QM-RA-X EZ-240-QNF-X EZ-240-QNM-X EZ-240-QNM-RA-X EZ-240-SF-X EZ-240-SM-X EZ-240-SM-RA-X EZ-240-TF-X EZ-240-TF-BH-X EZ-240-TF-RP-X EZ-240-TM-X EZ-240-TM-LW-X EZ-240-TM-RP-X EZ-240-UM-X EZ-240-UM-RA-X TCP-240-NMC-LP TCP-240-4310MC-LP TCP-240-716MC-LP EZ-240-NMH-X

Part Number Structure

Cable Details

Tools and Accessories

CST-240A

CST-240A
Grounding Kits

Grounding Kits
CCT-02

CCT-02
CCT-03

CCT-03

Documentation

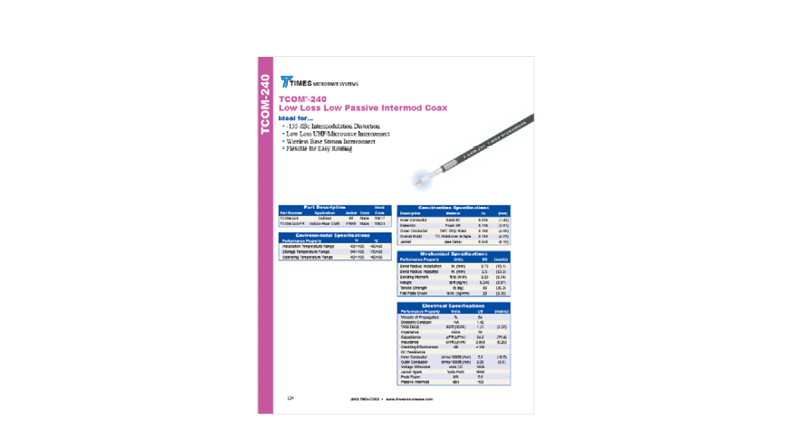

TCOM 240 Coax Cables datasheet

Download

WC19 Complete LMR Catalog

Download
