TCOM-195

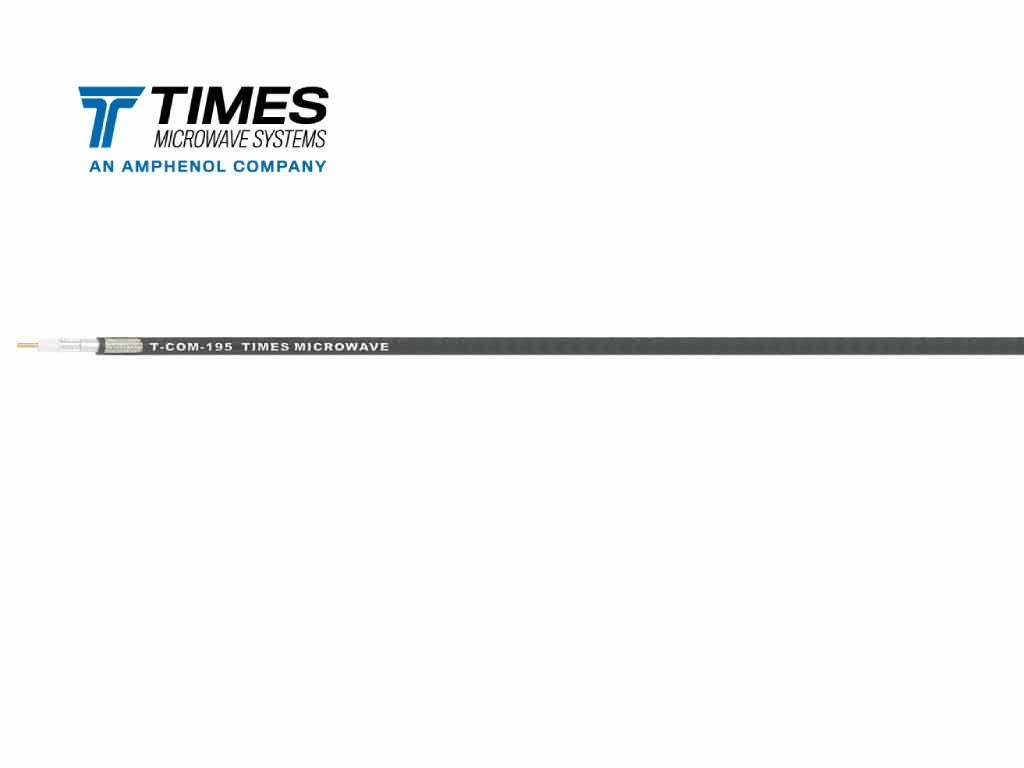

TCOM®-195 is a versatile, low-loss coaxial cable offering the same attenuation as LMR® with rugged, multi-layer shielding for low PIM performance. Designed for flexibility and reliability in harsh environments, it supports frequent handling after installation. The TCOM®-195 features a durable black polyethylene jacket for long-lasting protection.
Stock Code: 55021
Standard cable, Black PE jacket
Inventory Status
| Distributor | Qty | Order |
| Microwave Components, LLC | 854 | Buy |
Specifications
| Part NumberTCOM-195 |
| EnvironmentOutdoor |
| JacketPE |
| Overall Diameter (mm)5.08 |
| Overall Diameter (in)0.2 |
| Weight Kg/m0.08 |
| Weight lb/ft0.08 |
| Operating Temp.°C (°F)
-40° to 85°C
(-40° to 185°F) |
| Min. Bend Radius (mm)25.4 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm)0.6779 |
| Bending Moment (ft-lb)0.5 |
| Max Frequency (GHz)16.2 |
| Impedance (ohms)50 |
| Power Handling (DWV)2500 |
Compatible with
Part Number Structure
Cable Details

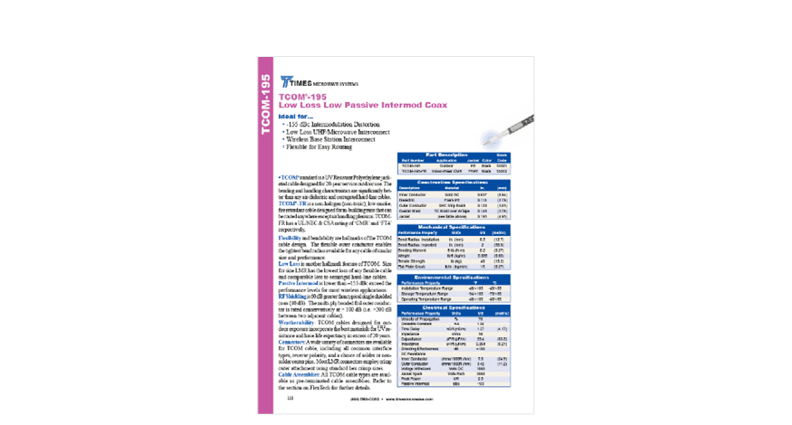

Documentation
