TCA-311901

TCA‑311901 is a high-temperature, low-loss coaxial cable tailored for aerospace, defense, navigation, and communication systems. With exceptional flexibility and robust mechanical resilience, it enables smooth routing through tight spaces while sustaining signal integrity. Engineered for collision‑avoidance and mission‑critical applications, this cable guarantees reliable, long-term performance in extreme and harsh environments.

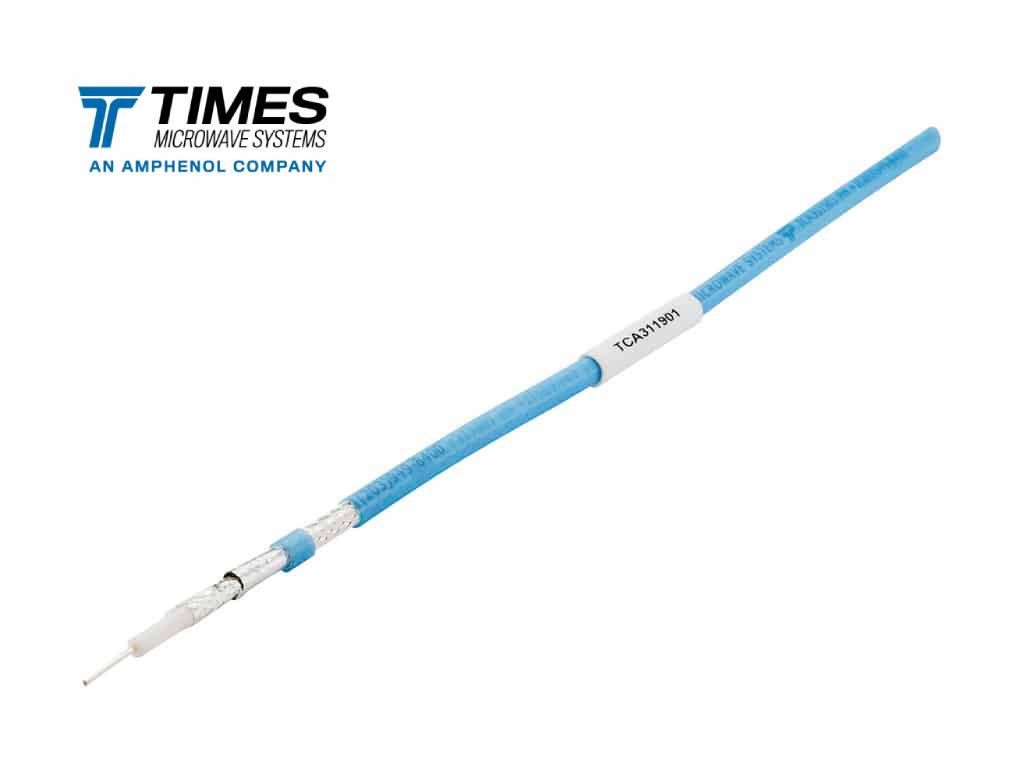

TCA-311901 solid SCCS with FEP jacket

Stock Code: 510-0167

TCA311901 0.037" Solid SCCS , 0.195" FEP Jacket

Request a Quote

Specifications

Part NumberTCA-311901
EnvironmentIndoor/Outdoor
JacketFEP
Overall Diameter (mm)4.95
Overall Diameter (in)0.195
Weight Kg/m0.064
Weight lb/ft0.043
Operating Temp.°C (°F)-55° to 200°C (-67° to 392°F)
Min. Bend Radius (mm)25.4
Min. Bend Radius (in)1
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)5
Impedance (ohms)50
Power Handling (DWV)

Part Number Structure

Cable Details
