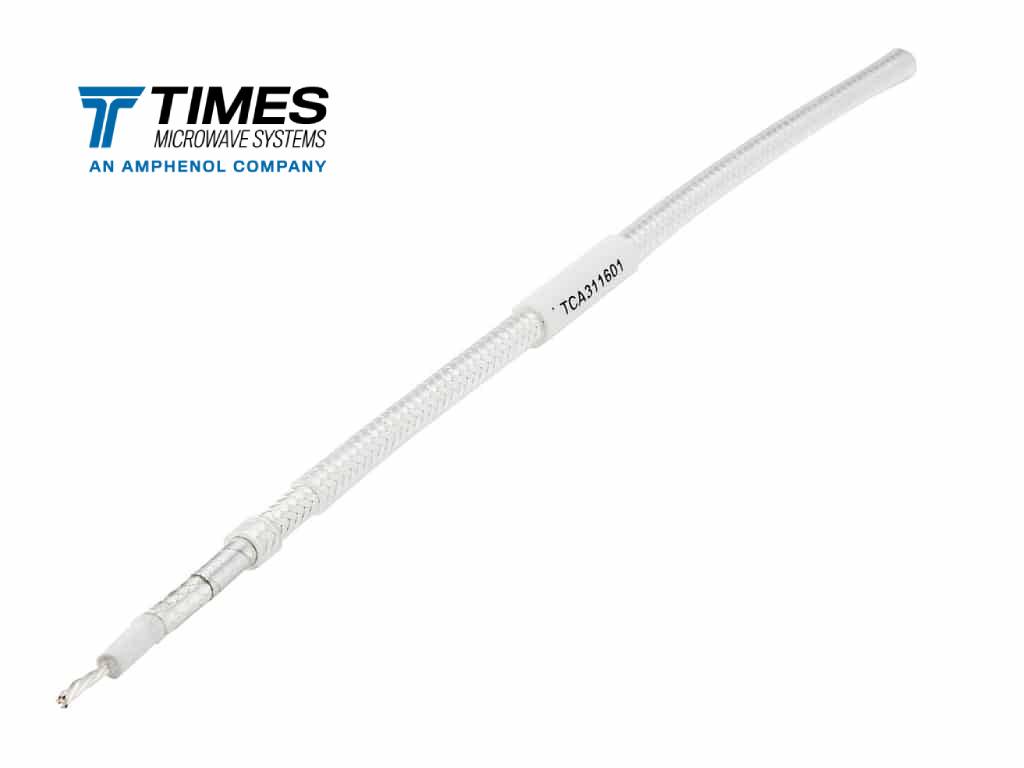

TCA-311601
TCA-311601 is a high-temperature, low-loss coaxial cable engineered for aerospace, defense, and communication systems. It delivers superior signal integrity and outstanding flexibility, making it ideal for tight routing in critical navigation and collision-avoidance applications. Designed to meet tough electrical and mechanical standards, TCA-311601 ensures long-lasting, high-reliability performance in harsh environments.
Stock Code: 510-0157
TCA311601 0.056" Stranded CC , 0.229" FEP Jacket
Request a Quote
Specifications
| Part NumberTCA-311601 |
| EnvironmentIndoor/Outdoor |
| JacketFEP |
| Overall Diameter (mm)5.81 |
| Overall Diameter (in)0.229 |
| Weight Kg/m0.0744 |
| Weight lb/ft0.05 |
| Operating Temp.°C (°F)-55° to 200°C (-67° to 392°F) |
| Min. Bend Radius (mm)29.21 |
| Min. Bend Radius (in)1.15 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)5 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Part Number Structure
Cable Details

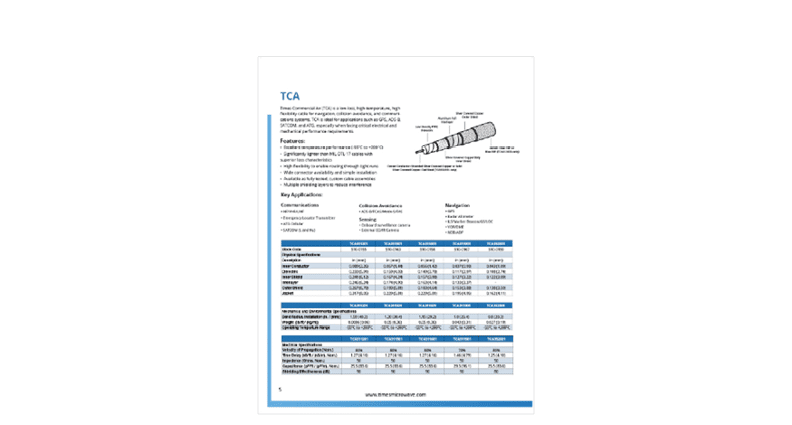

Documentation
