SR-086

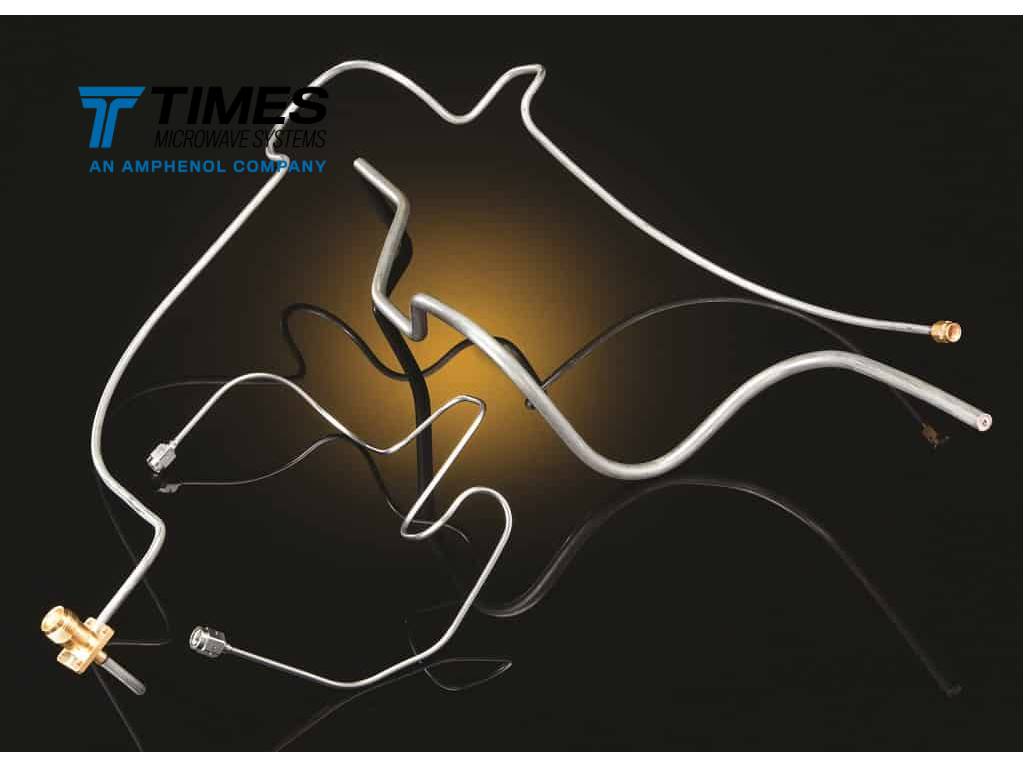

SR-086 is a semi-rigid cable assembly, designed for precision RF and microwave applications. With a solid outer conductor for excellent shielding and minimal signal loss, it offers reliable performance in demanding environments. Available for custom assembly by Times Microwave Systems to meet specific project needs.

PhaseTrack Semi-Rigid phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF4®

Stock Code: AA-11725

Request a Quote

Specifications

Part NumberSR-086
Environment
Jacket
Overall Diameter (mm)2.2479
Overall Diameter (in)0.0885
Weight Kg/m0.0002
Weight lb/ft
Operating Temp.°C (°F)-238° to 302°C (° to °F)
Min. Bend Radius (mm)
Min. Bend Radius (in)
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)
Impedance (ohms)
Power Handling (DWV)

Part Number Structure

Cable Details

Resources
