SPO-250

SPO-250 1/4" corrugated low PIM cable

Stock Code: AA-11480

SPO-250 1/4" corrugated low PIM cable

Inventory Status
Distributor Qty Order
Murray-Benjamin Electric1500Buy
Mouser Electronics1000Buy

Specifications

Part Number
EnvironmentOutdoor
JacketPE
Overall Diameter (mm)0.303
Overall Diameter (in)0.303
Weight Kg/m0.051
Weight lb/ft0.051
Operating Temp.°C (°F)85° to 85°C
(-40° to 185°F)
Min. Bend Radius (mm)31.75
Min. Bend Radius (in)1.25
Bending Moment (Nm)0.6779
Bending Moment (ft-lb)0.5
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-250-225M-LP TC-250-4195M-LP TC-250-4195M-RA-LP TC-250-4310F-LP TC-250-4310F-BH-LP TC-250-4310M-LP TC-250-4310M-RA-LP TC-250-4310MS-LP TC-250-716F-LP TC-250-716M-LP TC-250-716M-RA-LP TC-250-NF-BH-LP TC-250-NF-LP TC-250-NM-LP TC-250-NM-RA-LP TC-250-NX10F-BH-LP TC-250-NX10M-LP TC-250-NX10MS-LP TC-250-NX10M-RA-LP TC-250-QM-LP TC-250-QM-RA-LP TC-250-SM-LP TC-250-SM-RA-LP

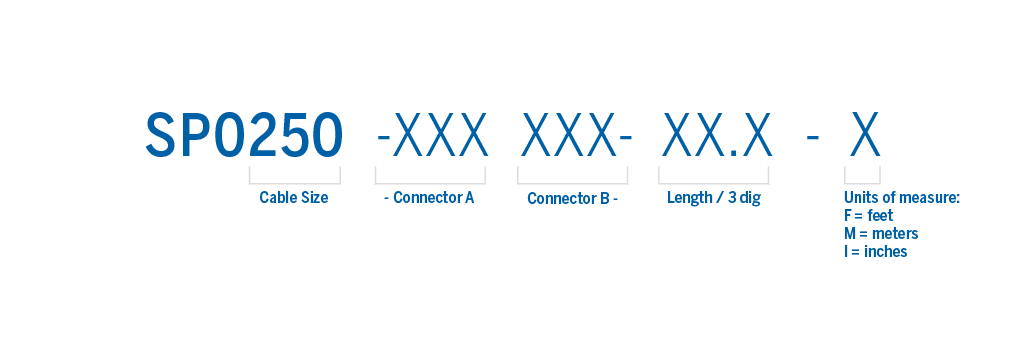

Part Number Structure

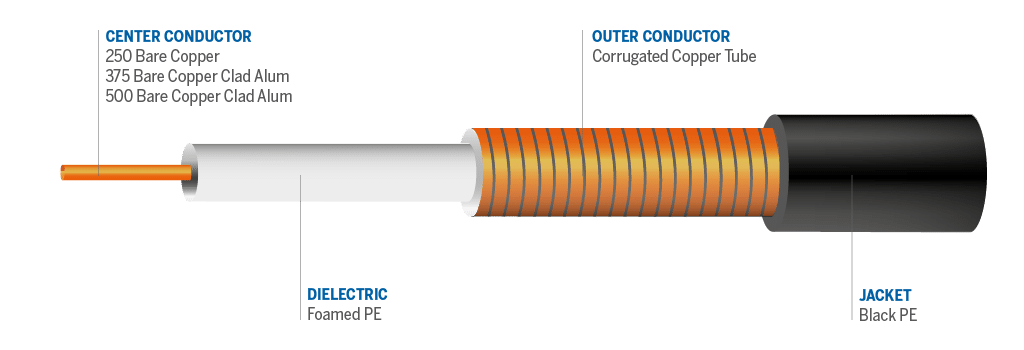

Cable Details
