SiO2-270

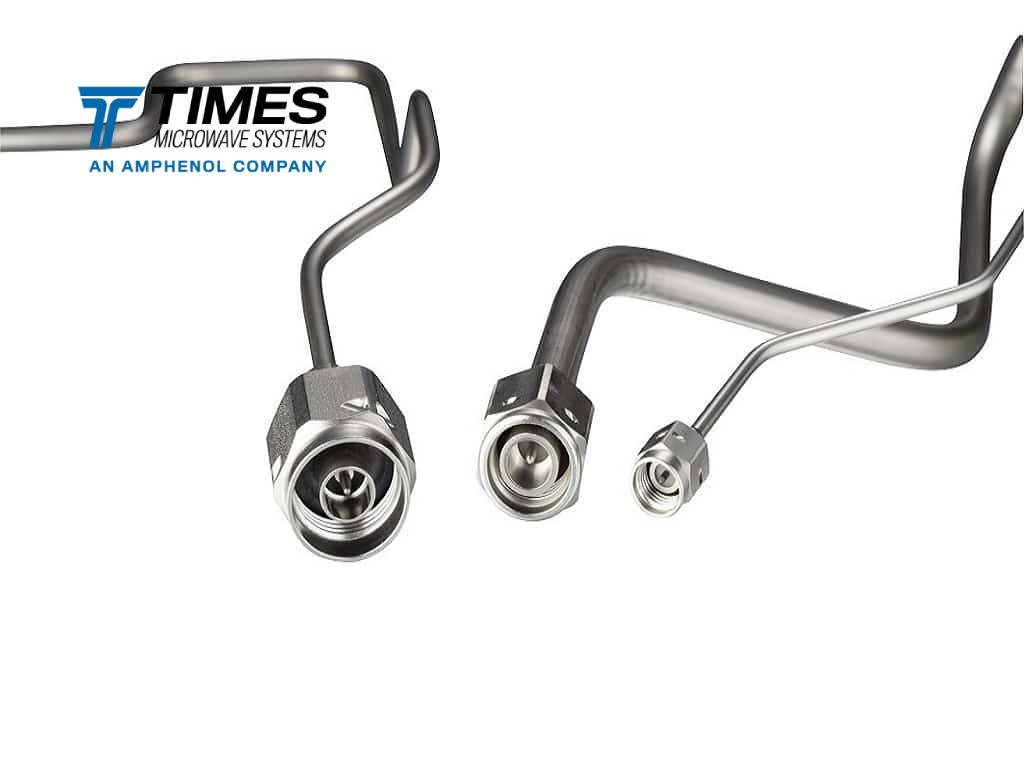

SiO2-270 semi-rigid cable assembly offers superior phase stability, low loss, and rugged performance for critical aerospace, defense, and satellite systems. Engineered with a robust SiO2 dielectric, it withstands extreme temperatures, shock, and radiation. SiO2-270 ensures signal integrity in high-frequency applications where reliability, precision, and durability are essential in the harshest operating environments.
Stock Code: AA-9779
SiO2-270
Request a Quote
Specifications
| Part NumberSiO2-270 |
| Environment |
| Jacket304L SS |
| Overall Diameter (mm)6.9088 |
| Overall Diameter (in)0.272 |
| Weight Kg/m0.1116 |
| Weight lb/ft0.075 |
| Operating Temp.°C (°F)-270° to 1000°C (-454° to 1832°F) |
| Min. Bend Radius (mm)25.4 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)18.5 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Part Number Structure
Cable Details
