SFT-600-BCCAL

The SFT-600-BCCAL is a high-performance, flexible coaxial cable featuring a stranded center conductor and bonded aluminum tape for enhanced shielding. Designed for low-loss operation up to 6 GHz, it offers excellent bendability and durability. Ideal for microwave and military-grade systems, the SFT-600-BCCAL ensures reliable signal integrity and stable electrical performance in harsh environments.

SFT-600-BCCAL

Stock Code: 51839

SFT-600-BCCAL

Request a Quote

Specifications

Part NumberSFT-600-BCCAL
Environment
JacketFEP
Overall Diameter (mm)14.224
Overall Diameter (in)0.56
Weight Kg/m0.235
Weight lb/ft0.235
Operating Temp.°C (°F) -55° to 200°C
(-67° to 392°F)
Min. Bend Radius (mm)63.5
Min. Bend Radius (in)2.5
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)3
Impedance (ohms)50
Power Handling (DWV)6000

Compatible with

TC-600T-1330M-CL EZ-600T-158EIA-CL TC-600T-158EIA-RA-CL TC-600T-78EIA-RA-CL TC-600T-716M-CC TC-600T-716M-RA-CC TC-600T-HNMC-CL TC-600T-HNM-RA-CL TC-600T-HNM-CC TC-600T-HNM-RA-CC TC-600T-HQF-CC TC-600T-HQM-CC TC-600T-HQM-RA-CC TC-600T-LCM-CL TC-600T-LCM-RA-CL TC-600T-LCM-CC TC-600T-LCM-RA-CC TC-600T-MQF-CC TC-600T-MQM-CC TC-600T-MQM-RA-CC TC-600T-SCM-CC TC-600T-SCM-RA-CC

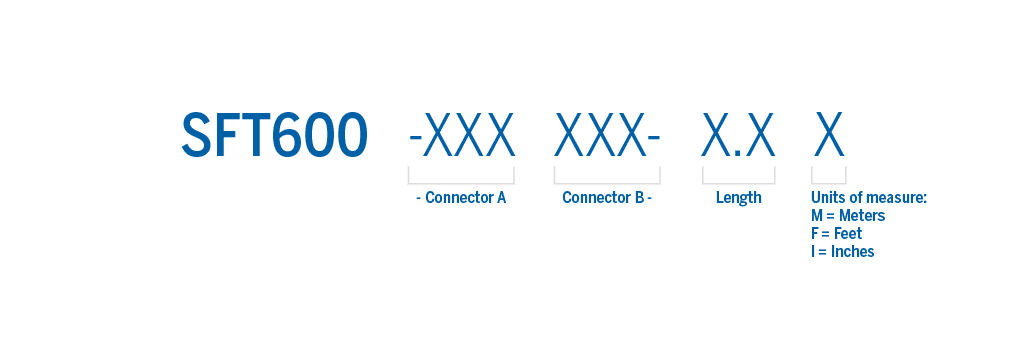

Part Number Structure

Cable Details
