RG-214
Times Microwave Systems® RG-214 (M17/74-RG214) coaxial cable delivers superior shielding and low signal loss, making it ideal for high-frequency RF and microwave applications. Built with a dual silver-plated braid, it ensures excellent EMI protection and reliable performance in harsh environments, including military, aerospace, and commercial systems requiring robust signal transmission.
Stock Code: 41510
RG-214 M17/74-RG214
Inventory Status
![]()
| In Stock | Qty | Order |
| Mouser Electronics | 2612 | Buy |
Specifications
| Part NumberRG-214 |
| Environment |
| JacketPVC |
| Overall Diameter (mm)10.8 |
| Overall Diameter (in)0.425 |
| Weight Kg/m0.1935 |
| Weight lb/ft0.13 |
| Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F) |
| Min. Bend Radius (mm)50.8 |
| Min. Bend Radius (in)2 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)3 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure
Cable Details

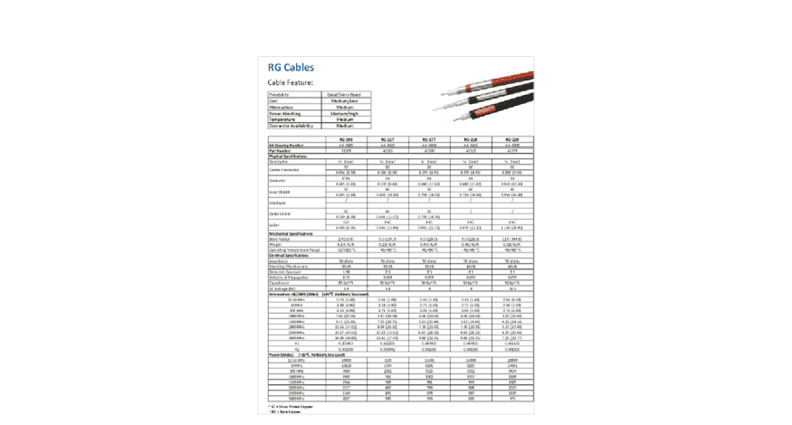

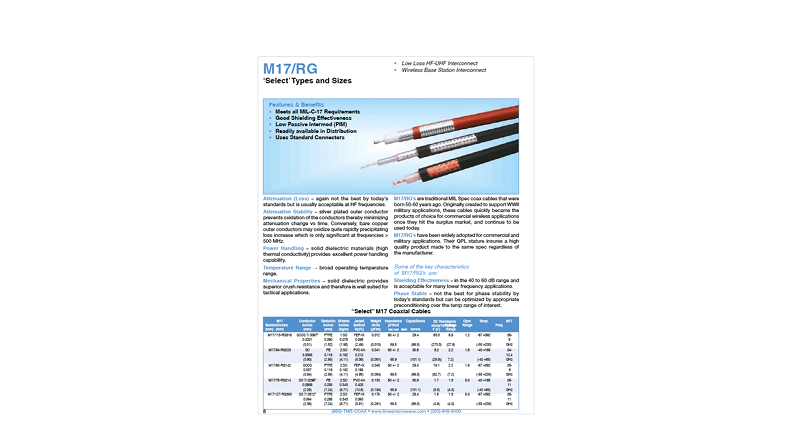

Documentation
Resources
