PT-318-SP

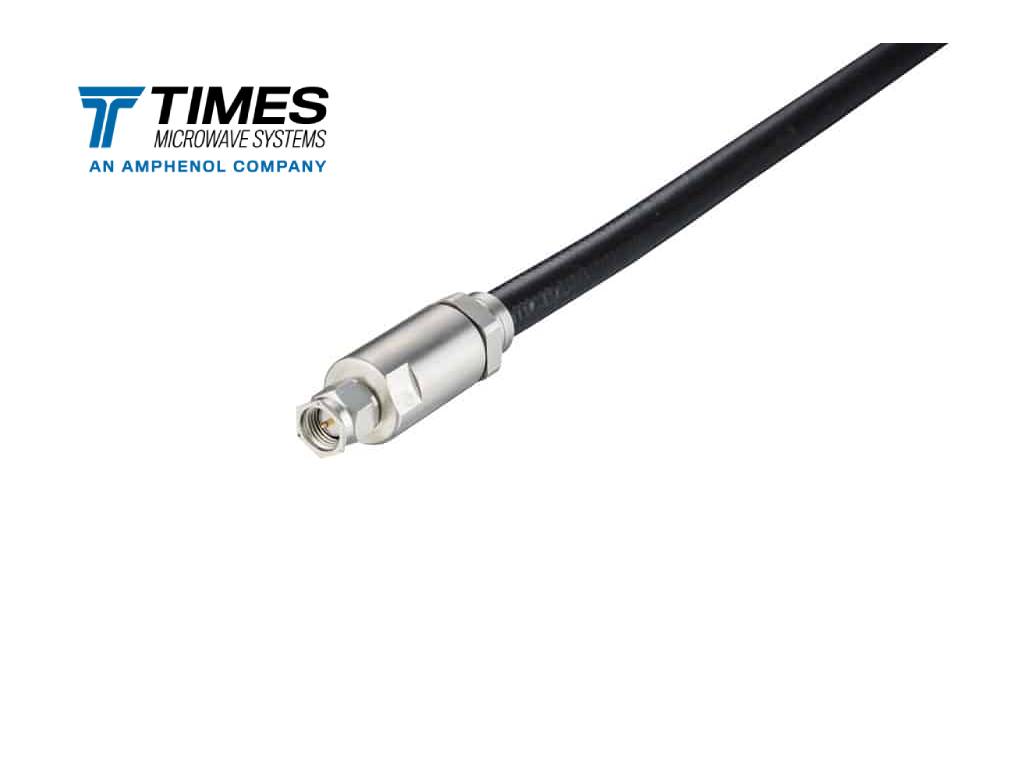

The PhaseTrack^®318-SP is an Ultra-Flexible phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF4^®, eliminating the PTFE change phase occurring around 19 ºC. PhaseTrack assemblies have the same triple-shield construction used in our popular SF^®, SFT^®, SilverLine^®, and MilTtech^® cables and are ideal for applications demanding stable phase over temperature.

Stock Code: AA-12010

PT318-SP

Request a Quote

Specifications

Part NumberPT-318-SP

Environment

JacketETFE

Overall Diameter (mm)8.128

Overall Diameter (in)0.32

Weight Kg/m0.0874

Weight lb/ft0.0874

Operating Temp.°C (°F) -150° to 150°C
(-238° to 302°F)

Min. Bend Radius (mm)

Min. Bend Radius (in)1.75

Bending Moment (Nm)

Bending Moment (ft-lb)

Max Frequency (GHz)

Impedance (ohms)50

Power Handling (DWV)

Part Number Structure

Cable Details
