PT-318

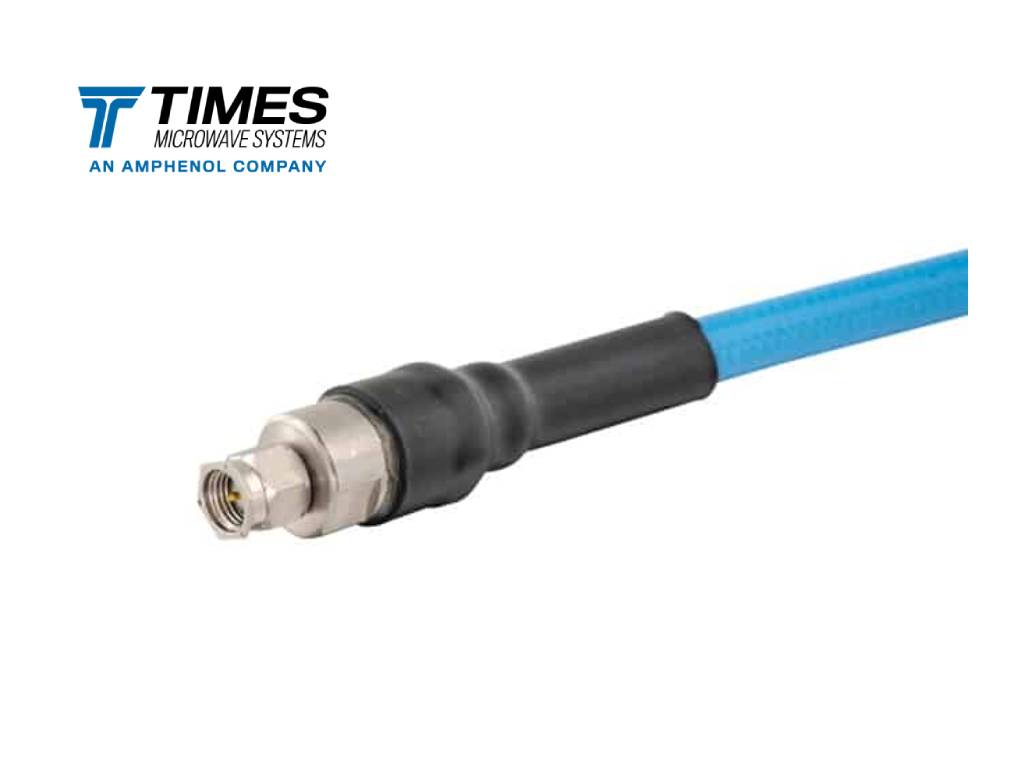

The PhaseTrack®318 is a Standard phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF4®, eliminating the PTFE change phase occurring around 19 ºC. PhaseTrack assemblies have the same triple-shield construction used in our popular SF®, SFT®, SilverLine®, and MilTech® cables and are ideal for applications demanding stable phase over temperature.

PT-318

Stock Code: AA-11241

PT-318

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

PT-318
PT-318
Design Your Assembly

Specifications

Part NumberPT-318
Environment
JacketFEP
Overall Diameter (mm)8.001
Overall Diameter (in)0.315
Weight Kg/m0.09
Weight lb/ft0.09
Operating Temp.°C (°F) -55° to 150°C
(-85° to 302°F)
Min. Bend Radius (mm)44.45
Min. Bend Radius (in)1.75
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)18.9
Impedance (ohms)50
Power Handling (DWV)

Compatible with
