PT-150

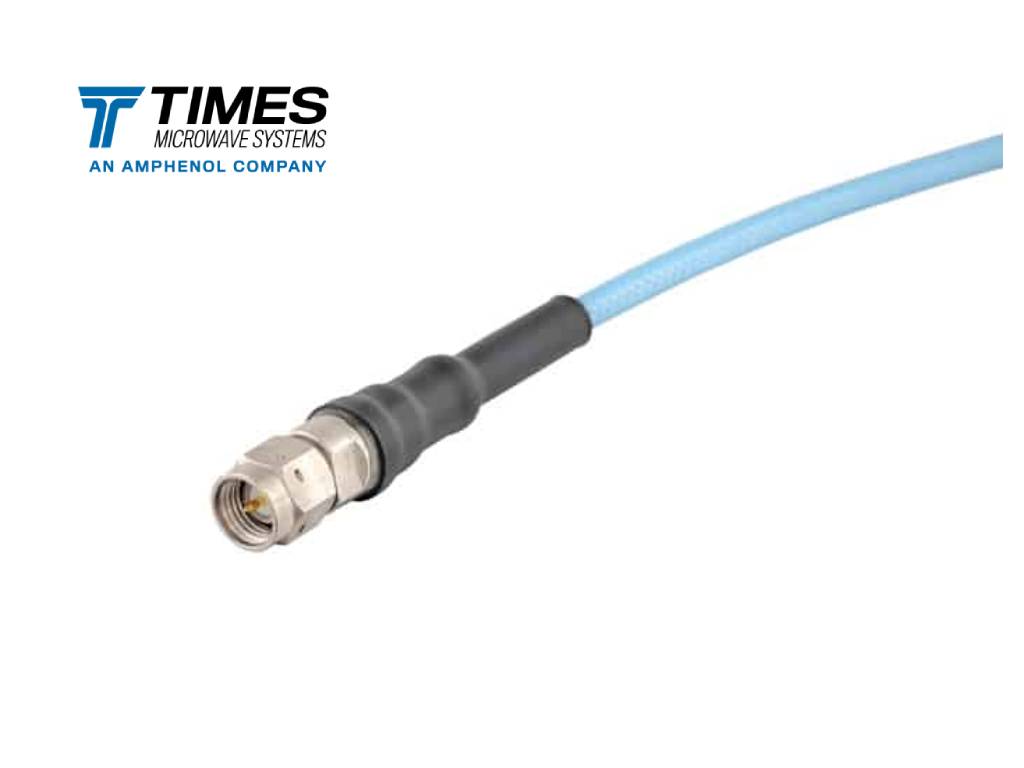

The PhaseTrack®150 is a phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF4®, eliminating the PTFE change phase occurring around 19 ºC. PhaseTrack assemblies have the same triple-shield construction used in our popular SF®, SFT®, SilverLine®, and MilTtech® cables and are ideal for applications demanding stable phase over temperature.
Stock Code: AA-11238
PT-150
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberPT-150 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)3.683 |
| Overall Diameter (in)0.145 |
| Weight Kg/m0.024 |
| Weight lb/ft0.024 |
| Operating Temp.°C (°F)
-55° to 150°C
(-85° to 302°F) |
| Min. Bend Radius (mm)19.05 |
| Min. Bend Radius (in)0.75 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)52.4 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure
Cable Details
