MT-480
MilTech® 480 are hermetically sealed flexible RF and microwave assemblies. These ruggedized transmission lines are fully vapor sealed, optimized and qualified for commercial, military airborne and other demanding applications.
Stock Code: AA-9501
MT-480 Miltech Hermetically Sealed Qualified cables
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberMT-480 |
| Environment |
| JacketNomex |
| Overall Diameter (mm)0.46 |
| Overall Diameter (in)0.46 |
| Weight Kg/m0.2 |
| Weight lb/ft0.2 |
| Operating Temp.°C (°F)200° to 200°C (-67° to 392°F) |
| Min. Bend Radius (mm)57.15 |
| Min. Bend Radius (in)2.25 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)10 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure

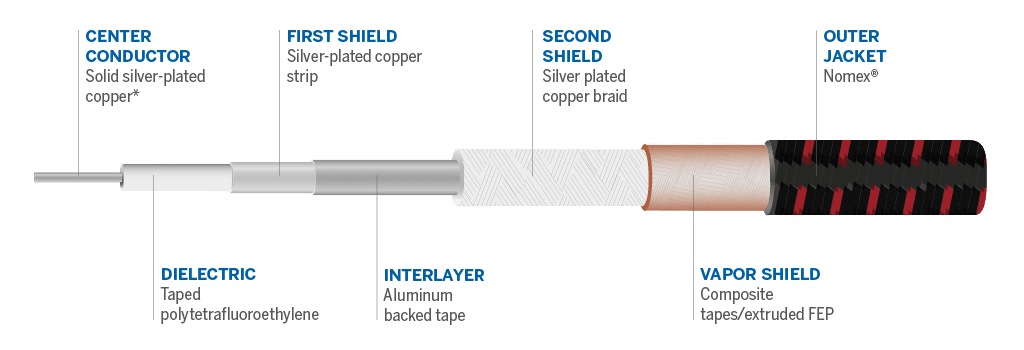

Cable Details
Documentation
