MG-200
MaxGain® 200 is a high-performance, ultra-low-loss microwave coaxial cable designed for superior signal integrity in high-frequency applications. Built with spiral outer conductor technology, it offers excellent shielding, flexibility, and low attenuation. Ideal for aerospace, defense, and other environments where performance, reliability, and lightweight construction are essential.
Stock Code: AA-9889
MaxGain-200 low-loss, high performance microwave coaxial cable
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberMG-200 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)5 |
| Overall Diameter (in)0.197 |
| Weight Kg/m0.0551 |
| Weight lb/ft0.037 |
| Operating Temp.°C (°F)-55° to 150°C (-67° to 302°F) |
| Min. Bend Radius (mm)31.75 |
| Min. Bend Radius (in)1.25 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)30 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with

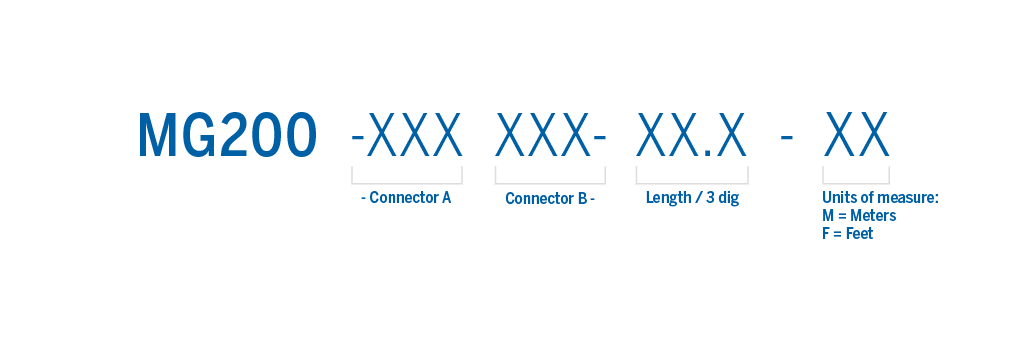

Part Number Structure

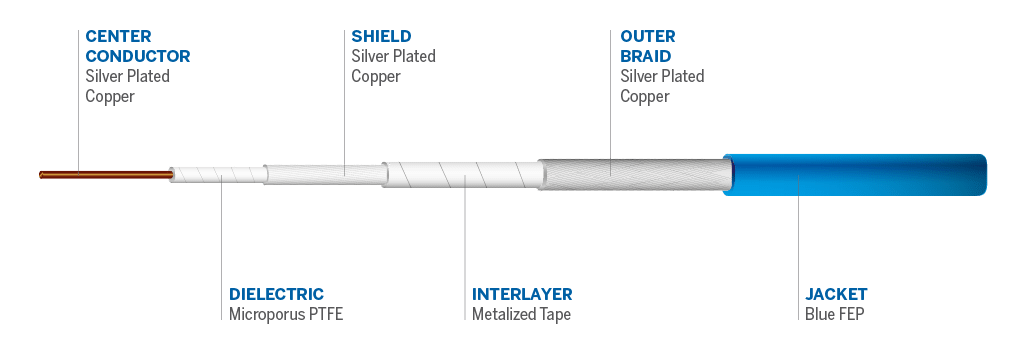

Cable Details
