MG-160

MaxGain® 160 is a lightweight, ultra-low-loss microwave coaxial cable designed for high-frequency signal transmission. Utilizing spiral outer conductor technology, it provides excellent shielding, flexibility, and electrical stability. Ideal for aerospace, defense, and advanced communication systems where precision, performance, and reliability are essential.

High-performance MG-160 coaxial cable is a high-frequency interconnect solution built with spiral outer conductor technology.

Stock Code: AA-11258

MaxGain-160 low-loss, high performance microwave coaxial cable

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector A
MG-160
Connector B
Build Your MaxGain Assembly

Specifications

Part NumberMG-160
Environment
JacketFEP
Overall Diameter (mm)3.96
Overall Diameter (in)0.156
Weight Kg/m0.0387
Weight lb/ft0.026
Operating Temp.°C (°F)-55° to 150°C (-67° to 302°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)40
Impedance (ohms)50
Power Handling (DWV)

Compatible with

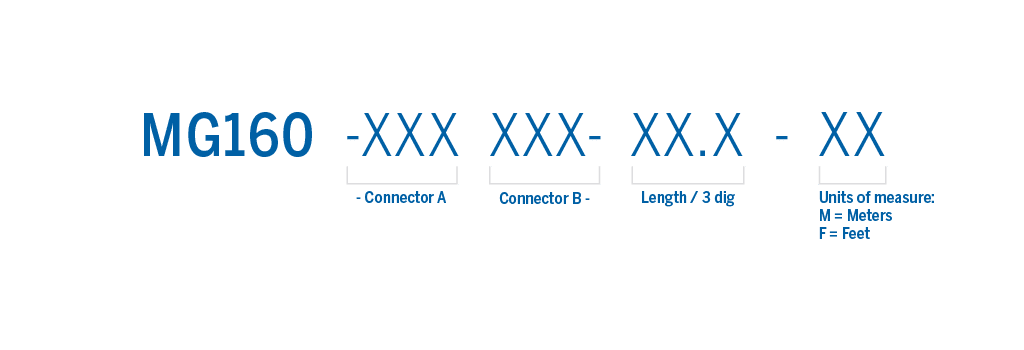

Part Number Structure

Part number structure

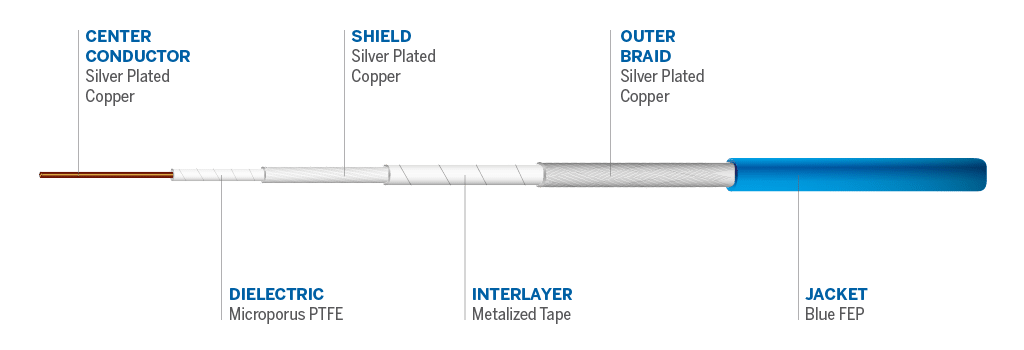

Cable Details

Cable details
